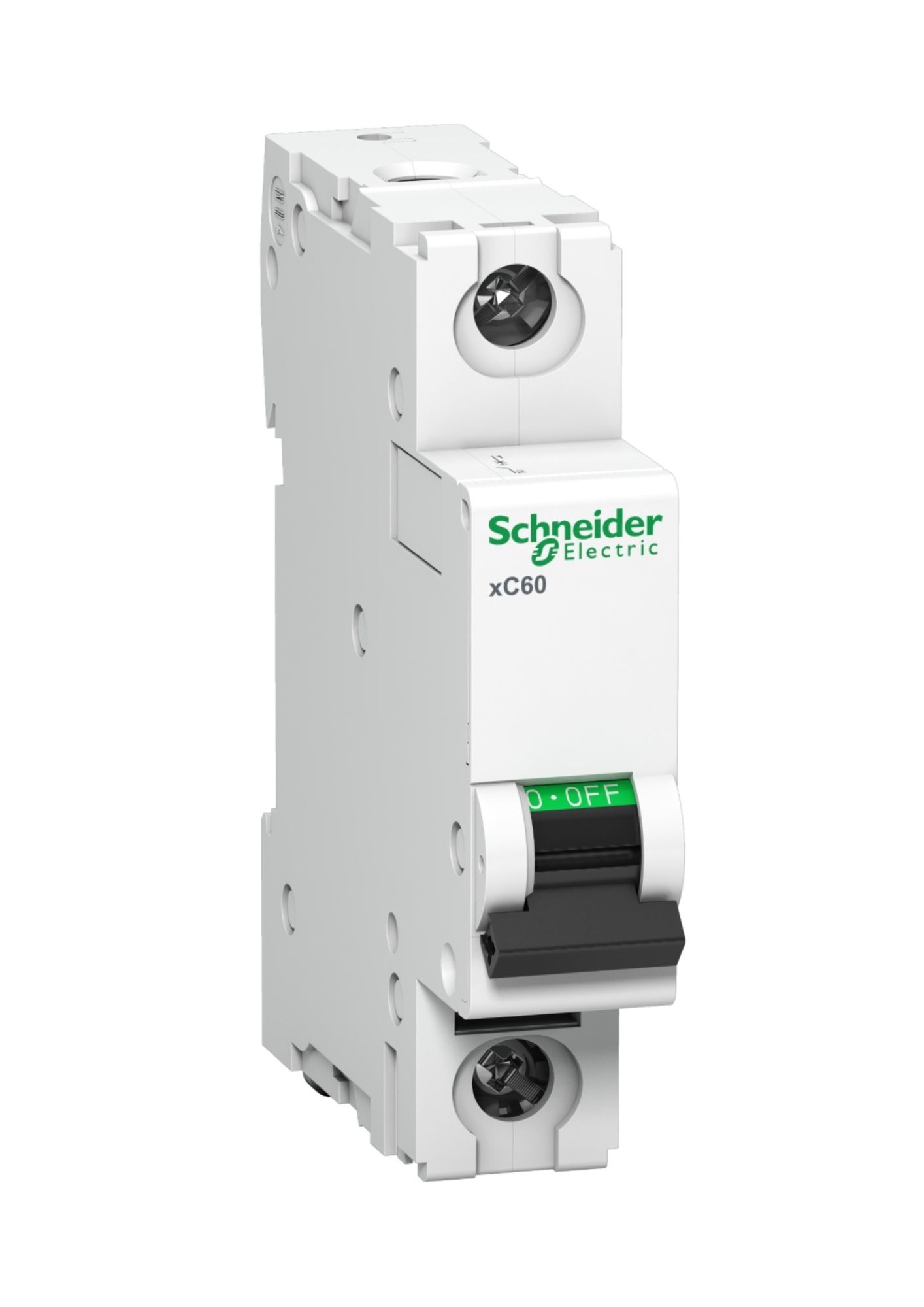

Schneider A9N1P06CGN, Miniature circuit breaker, 1 Pole, 6Amp, C curve, 10kA
Schneider A9N1P06CGN, Miniature circuit breaker, 1 Pole, 6Amp, C curve, 10kA

Schneider A9N1P06CGN, Miniature circuit breaker, 1 Pole, 6Amp, C curve, 10kA

In stock
SKU
A9N1P06CGN
Special Price ₹133.30 Regular Price ₹430.00
(18% GST Extra)
Add to Wish List
  • 1P miniature circuit breaker (MCB) with 6A rated current and D tripping curve.
  • Breaking capacity up to 10000A at 220–240VAC as per IS/IEC 60898-1.
  • Protects against short circuit and overload, with green strip ensuring safe disconnection.
  • Durability: 20000 mechanical and 20000 electrical cycles, insulation voltage 500VAC.
  • IP20 standalone / IP40 in enclosure, operating temperature -30°C to 70°C, DIN rail or busbar mounting.
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

Main
Device applicationDistribution
Range of productActi9
RangeActi9
Product nameXC60
Product or component typeMiniature circuit-breaker
Device short namexC60
Poles description1P
Number of protected poles1
[In] rated current6 A
Network typeAC
Trip unit technologyThermal-magnetic
Curve codeC
Complementary
Network frequency50/60 Hz
[Ue] rated operational voltage220...240 V AC 50/60 Hz
Magnetic tripping limit5...10 x In
Breaking capacity10000 A Icn at 240 V AC 50/60 Hz conforming to IS/IEC 60898-1
Limitation class3 conforming to IS/IEC 60898-1
Contact position indicatorYes
Control typeToggle
Local signallingON/OFF indication
Mounting modeClip-on
Mounting support35 mm DIN rail
Comb busbar and distribution block compatibilityTop: YES
9 mm pitches2
Height85 mm
Width18 mm
Depth77.5 mm
ColourWhite
Mechanical durability20000 cycles
Electrical durability20000 cycles
Connections - terminalsTunnel type (bottom) 16 mm² flexible / 25 mm² rigid / Biconnect (bottom)
Wire stripping length13 mm for top or bottom connection
Tightening torque2 N.m
Earth-leakage protectionSeparate block
Product compatibilityC60 accessories, C60 auxiliary
Overvoltage categoryIV
