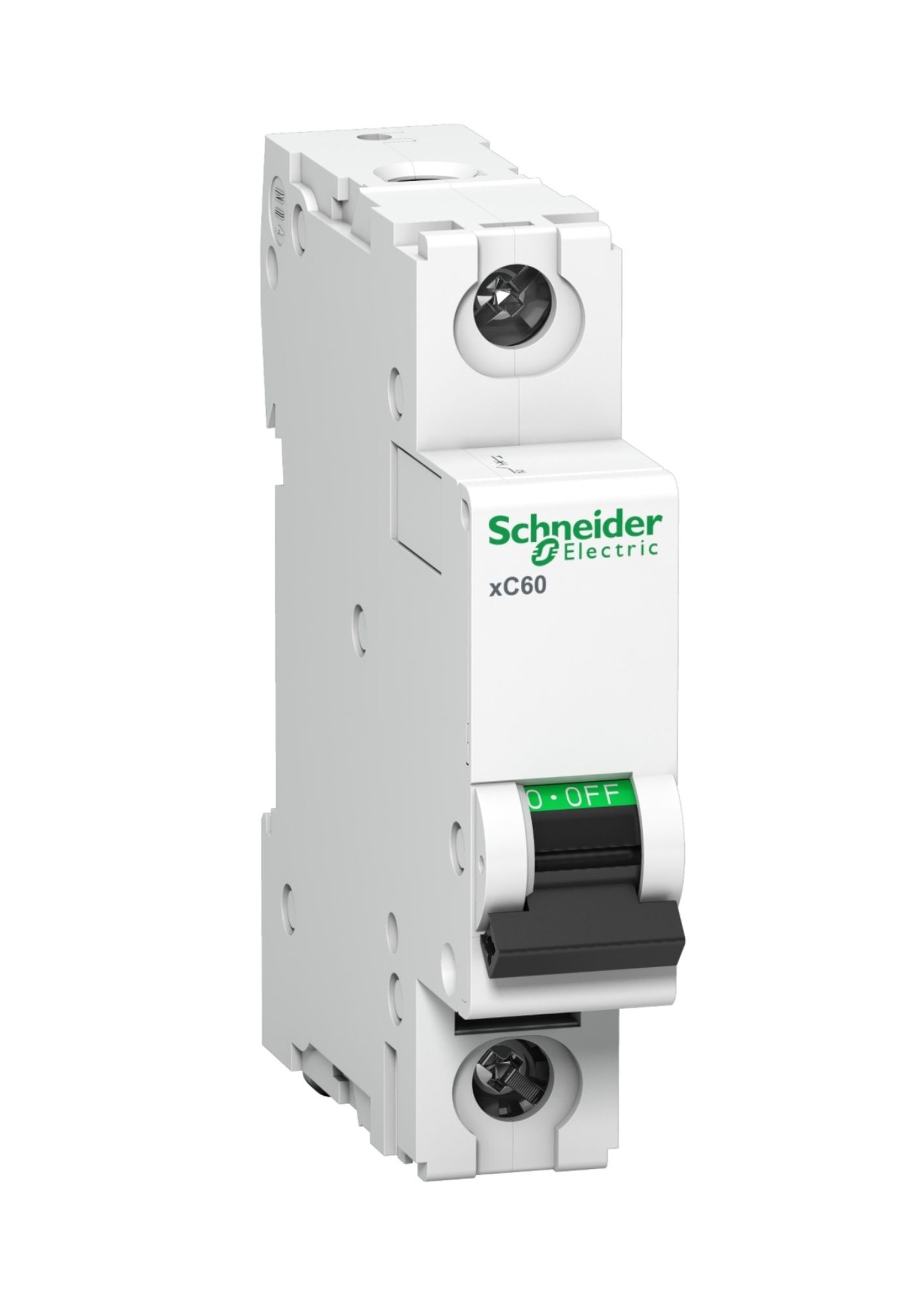

Schneider A9N1P10CGN, Miniature circuit breaker (MCB), 1 Pole, 10Amp, C curve, 10kA
Schneider A9N1P10CGN, Miniature circuit breaker (MCB), 1 Pole, 10Amp, C curve, 10kA

Schneider A9N1P10CGN, Miniature circuit breaker (MCB), 1 Pole, 10Amp, C curve, 10kA

In stock
SKU
A9N1P10CGN
Special Price ₹133.30 Regular Price ₹430.00
(18% GST Extra)
Add to Wish List
  • 1P biconnect miniature circuit breaker (MCB) with 1 protected pole, 10A rated current, and D tripping curve; short-circuit breaking capacity up to 10000A at 220-240VAC.
  • Protects circuits against short circuit and overload; green strip ensures physical opening of contacts for safe operation.
  • Durability: mechanical up to 20,000 cycles, electrical up to 20,000 cycles; rated insulation voltage (Ui) 500VAC; operates at 50Hz or 60Hz.
  • Mounting options: DIN rail or Vertical Fishbone Busbar; width 2 pitches of 9mm; pollution degree 3; color white (RAL9003).
  • Protection and temperature: IP20 (IP40 in enclosure); operating temperature -30°C to 70°C; storage temperature -40°C to 85°C.
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

Acti9 XC60 MCB Specification
Main
Device applicationDistribution
Range of productActi9
RangeActi9
Product nameXC60
Product or component typeMiniature circuit-breaker
Device short namexC60
Poles description1P
Number of protected poles1
[In] rated current10 A
Network typeAC
Trip unit technologyThermal-magnetic
Curve codeC
Complementary
Network frequency50/60 Hz
[Ue] rated operational voltage220...240 V AC 50/60 Hz
Magnetic tripping limit5...10 x In
Breaking capacity10000 A Icn at 240 V AC 50/60 Hz conforming to IS/IEC 60898-1
Limitation class3 conforming to IS/IEC 60898-1
Contact position indicatorYes
Control typeToggle
Local signallingON/OFF indication
Mounting modeClip-on
Mounting support35 mm DIN rail
Comb busbar and distribution block compatibilityTop: YES, 9 mm pitches 2
Height85 mm
Width18 mm
Depth77.5 mm
ColourWhite
Mechanical durability20000 cycles
Electrical durability20000 cycles
Connections - terminalsTunnel type terminals (bottom) 16 mm² flexible, Tunnel type terminals (bottom) 25 mm² rigid, Biconnect (bottom)
Wire stripping length13 mm for top or bottom connection
Tightening torque2 N.m
Earth-leakage protectionSeparate block
Product compatibilityC60 accessories, C60 auxiliary
Overvoltage categoryIV
