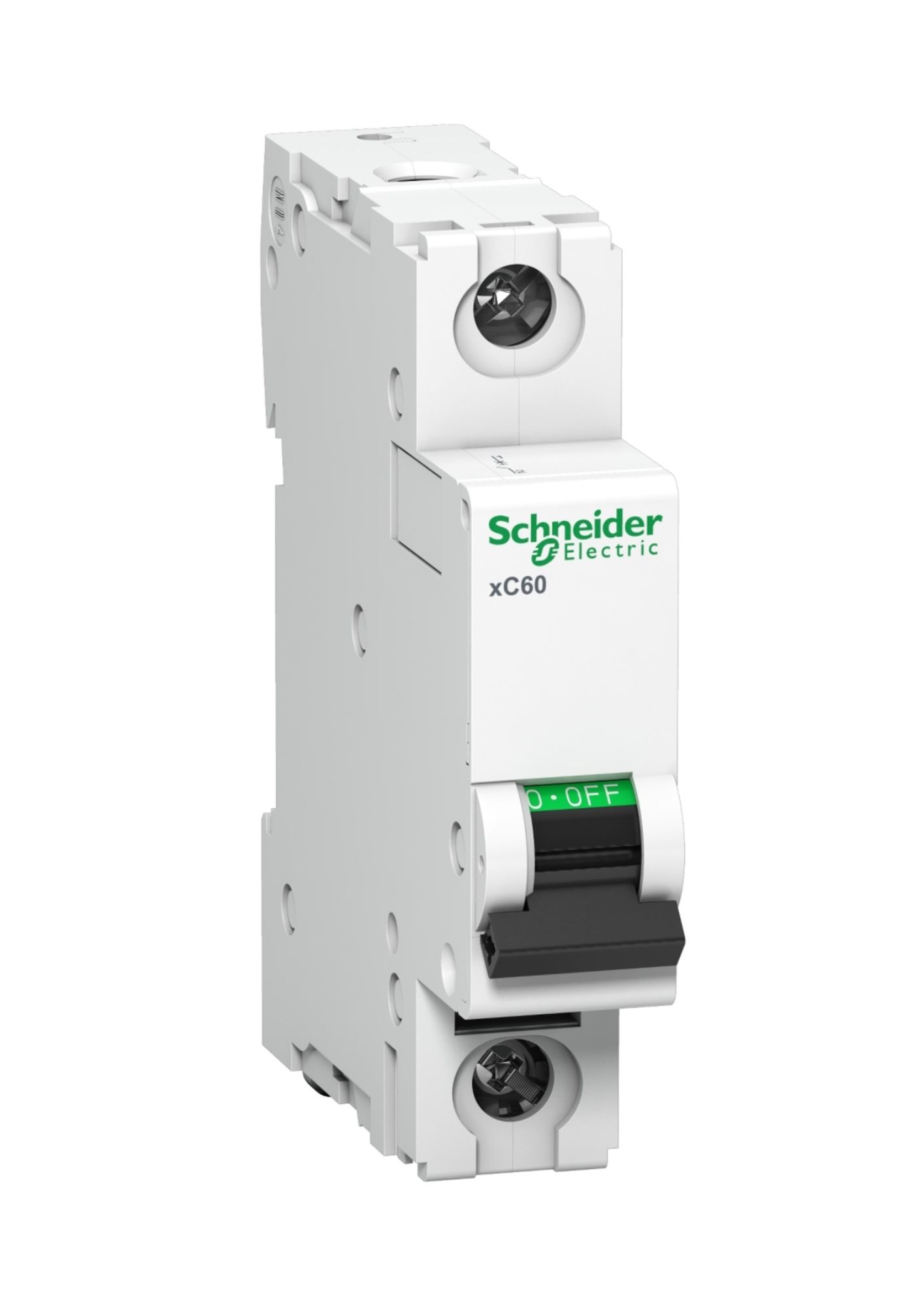

Schneider A9N1P16CGN, Miniature circuit breaker (MCB), 1 Pole, 16Amp, C curve, 10kA
Schneider A9N1P16CGN, Miniature circuit breaker (MCB), 1 Pole, 16Amp, C curve, 10kA

Schneider A9N1P16CGN, Miniature circuit breaker (MCB), 1 Pole, 16Amp, C curve, 10kA

In stock
SKU
A9N1P16CGN
Special Price ₹133.30 Regular Price ₹430.00
(18% GST Extra)
Add to Wish List
  • 1P low voltage biconnect miniature circuit breaker (MCB) with 1 protected pole, 16A rated current, D tripping curve.
  • Short circuit breaking capacity up to 10000A at 220-240VAC; protects against short circuit and overload; conforms to IS/IEC 60898-1 standard.
  • Green strip ensures physical contact opening for safe downstream operations; mechanical and electrical durability up to 20,000 cycles.
  • Rated insulation voltage Ui 500VAC; operating frequency 50/60Hz; mountable on DIN rail or Vertical Fishbone Busbar; width 2x9mm pitches.
  • Pollution degree 3; white color (RAL9003); protection IP20/IP40; operating temperature -30°C to 70°C; storage temperature -40°C to 85°C.
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

Acti9 XC60 Table
Main
Device applicationDistribution
Range of productActi9
RangeActi9
Product nameXC60
Product or component typeMiniature circuit-breaker
Device short namexC60
Poles description1P
Number of protected poles1
[In] rated current16 A
Network typeAC
Trip unit technologyThermal-magnetic
Curve codeC
Complementary
Network frequency50/60 Hz
[Ue] rated operational voltage220...240 V AC 50/60 Hz
Magnetic tripping limit5...10 x In
Breaking capacity10000 A Icn at 240 V AC 50/60 Hz conforming to IS/IEC 60898-1
Limitation class3 conforming to IS/IEC 60898-1
Contact position indicatorYes
Control typeToggle
Local signallingON/OFF indication
Mounting modeClip-on
Mounting support35 mm DIN rail
Comb busbar and distribution block compatibilityTop: YES, 9 mm pitches 2
Height85 mm
Width18 mm
Depth77.5 mm
ColourWhite
Mechanical durability20000 cycles
Electrical durability20000 cycles
Connections - terminalsTunnel type terminals (bottom) 16 mm² flexible, Tunnel type terminals (bottom) 25 mm² rigid, Biconnect (bottom)
Wire stripping length13 mm for top or bottom connection
Tightening torque2 N.m
Earth-leakage protectionSeparate block
Product compatibilityC60 auxiliary, C60 accessories
Overvoltage categoryIV

No specifications available for this product.
