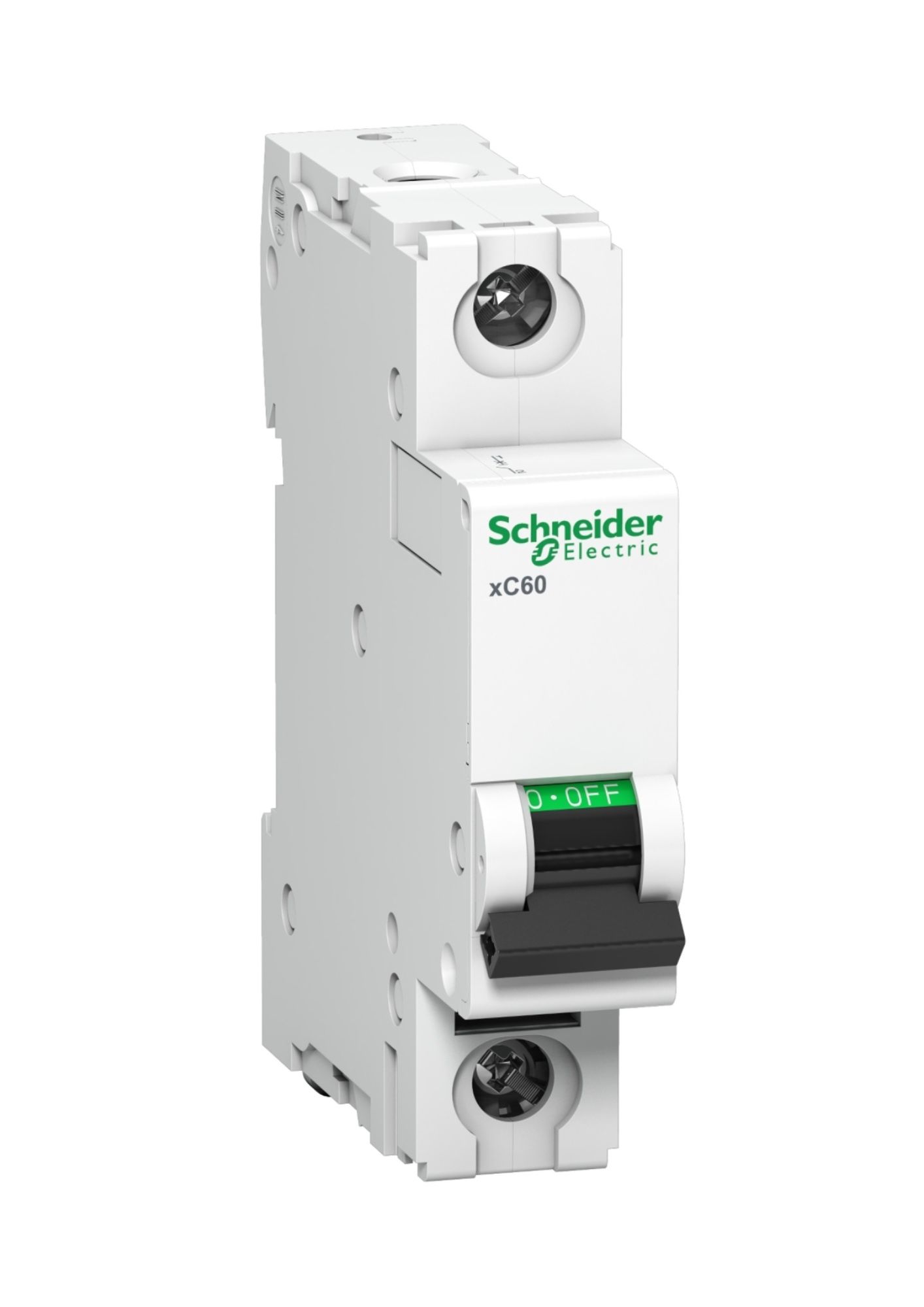

Schneider A9N1P20CGN, Miniature circuit breaker (MCB), 1 Pole, 20Amp, C Curve, 10kA
Schneider A9N1P20CGN, Miniature circuit breaker (MCB), 1 Pole, 20Amp, C Curve, 10kA

Schneider A9N1P20CGN, Miniature circuit breaker (MCB), 1 Pole, 20Amp, C Curve, 10kA

In stock
SKU
A9N1P20CGN
Special Price ₹133.30 Regular Price ₹430.00
(18% GST Extra)
Add to Wish List
  • Acti9 xC60 is a 1P low-voltage biconnect miniature circuit breaker (MCB) with 20A rated current and D tripping curve.
  • Provides protection against short-circuit and overload currents; rated short-circuit breaking capacity up to 10,000A at 220-240VAC (IS/IEC 60898-1 compliant).
  • Green strip indicates physical opening of contacts, ensuring safe operations on downstream circuits.
  • Durability: mechanical up to 20,000 cycles, electrical up to 20,000 cycles; rated insulation voltage 500VAC; operating frequency 50/60Hz.
  • Installation on DIN rail or vertical fishbone busbar; width 2x9mm pitches; IP20/IP40 protection; operating temp -30°C to 70°C; storage temp -40°C to 85°C; color white (RAL9003); pollution degree 3.
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

Main
Device application Distribution
Range of product Acti9
Range Acti9
Product name XC60
Product or component type Miniature circuit-breaker
Device short name xC60
Poles description 1P
Number of protected poles 1
[In] rated current 20 A
Network type AC
Trip unit technology Thermal-magnetic
Curve code C
Complementary
Network frequency 50/60 Hz
[Ue] rated operational voltage 220...240 V AC 50/60 Hz
Magnetic tripping limit 5...10 x In
Breaking capacity 10000 A Icn at 240 V AC conforming to IS/IEC 60898-1
Limitation class 3 conforming to IS/IEC 60898-1
Contact position indicator Yes
Control type Toggle
Local signalling ON/OFF indication
Mounting mode Clip-on
Mounting support 35 mm DIN rail
Comb busbar and distribution block compatibility Top: YES, 9 mm pitches: 2
Height 85 mm
Width 18 mm
Depth 77.5 mm
Colour White
Mechanical durability 20000 cycles
Electrical durability 20000 cycles
Connections - terminals Tunnel type terminals (bottom) 16 mm² flexible,
Tunnel type terminals (bottom) 25 mm² rigid,
Biconnect (bottom)
Wire stripping length 13 mm for top or bottom connection
Tightening torque 2 N.m
Earth-leakage protection Separate block
Product compatibility C60 accessories, C60 auxiliary
Overvoltage category IV
