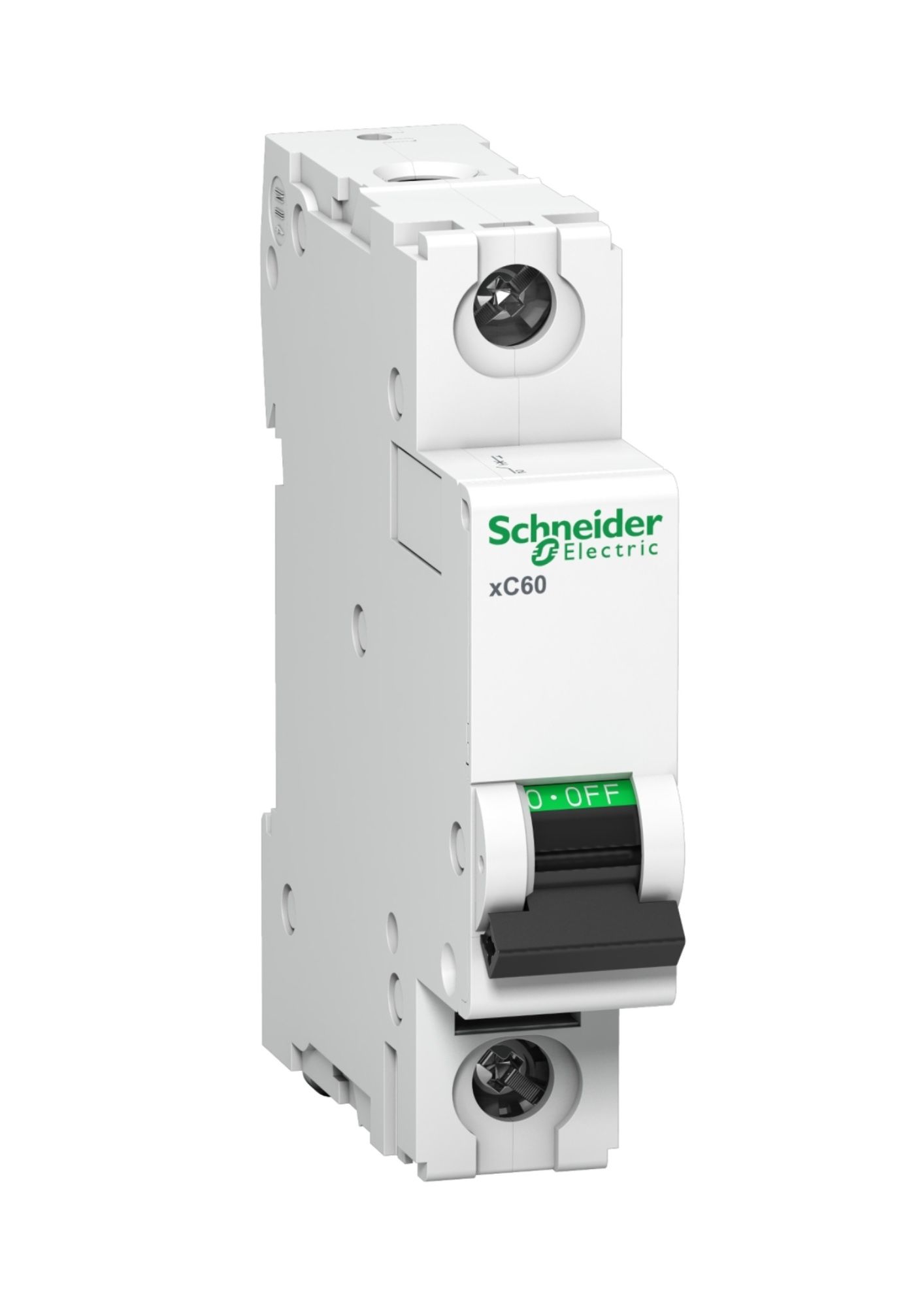

Schneider A9N1P32CGN, Miniature circuit breaker (MCB), 1 Pole, 32Amp, C Curve, 10kA
Schneider A9N1P32CGN, Miniature circuit breaker (MCB), 1 Pole, 32Amp, C Curve, 10kA

Schneider A9N1P32CGN, Miniature circuit breaker (MCB), 1 Pole, 32Amp, C Curve, 10kA

In stock
SKU
A9N1P32CGN
Special Price ₹133.30 Regular Price ₹430.00
(18% GST Extra)
Add to Wish List
  • Acti9 xC60 is a low voltage biconnect miniature circuit breaker (MCB), 1P with 32A rated current and D tripping curve.
  • Protects against short circuits and overloads; green strip ensures physical opening of contacts for safe operations.
  • Mechanical and electrical durability up to 20,000 cycles; rated insulation voltage (Ui) 500VAC; operates at 50/60Hz.
  • Mountable on DIN rail or Vertical Fishbone Busbar; width: 2 x 9mm pitches; pollution degree: 3.
  • White color (RAL9003); protection degree IP20/IP40 in enclosure; operating temperature -30°C to 70°C; storage temperature -40°C to 85°C.
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

Acti9 XC60 MCB Specification
Main
Device applicationDistribution
Range of productActi9
RangeActi9
Product nameXC60
Product or component typeMiniature circuit-breaker
Device short namexC60
Poles description1P
Number of protected poles1
[In] rated current32 A
Network typeAC
Trip unit technologyThermal-magnetic
Curve codeC
Complementary
Network frequency50/60 Hz
[Ue] rated operational voltage220...240 V AC 50/60 Hz
Magnetic tripping limit5...10 x In
Breaking capacity10000 A Icn at 240 V AC 50/60 Hz conforming to IS/IEC 60898-1
Limitation class3 conforming to IS/IEC 60898-1
Contact position indicatorYes
Control typeToggle
Local signallingON/OFF indication
Mounting modeClip-on
Mounting support35 mm DIN rail
Comb busbar and distribution block compatibilityTop: YES, 9 mm pitches, 2
Height85 mm
Width18 mm
Depth77.5 mm
ColourWhite
Mechanical durability20000 cycles
Electrical durability10000 cycles
Connections - terminalsBiconnect (bottom), Tunnel type terminals (bottom) 25 mm² flexible, 35 mm² rigid
Wire stripping length13 mm for top or bottom connection
Tightening torque3.5 N.m
Earth-leakage protectionSeparate block
Product compatibilityC60 auxiliary, C60 accessories
Overvoltage categoryIV
