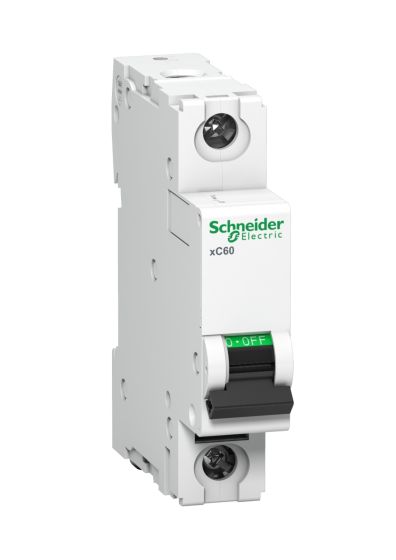

Schneider A9N1P40CGN, Miniature circuit breaker (MCB), 1 Pole, 40Amp, C Curve, 10kA

In stock

SKU

A9N1P40CGN

Special Price ₹395.87 Regular Price ₹1,277.00

(18% GST Extra)

Qty

Add to Wish List

Acti9 xC60 is a low-voltage biconnect miniature circuit breaker (MCB) with 1P, 1 protected pole, 40A rated current, and D tripping curve.
Protects against short circuit and overload; rated breaking capacity up to 10000A at 220-240VAC (IS/IEC 60898-1 compliant).
Green strip ensures physical opening of contacts for safe downstream operations; mechanical and electrical durability up to 20,000 cycles.
Mountable on DIN rail or Vertical Fishbone Busbar; width 2 x 9mm pitches; Ui rated insulation voltage 500VAC; operates at 50/60Hz.
Pollution degree 3; IP20/IP40 protection; operating temperature -30°C to 70°C; storage temperature -40°C to 85°C; color white (RAL9003).

Schneider A9N1P40CGN, Miniature circuit breaker (MCB), 1 Pole, 40Amp, C Curve, 10kA is available to buy in increments of 1

Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

100% Secure Payment

Acti9 XC60 MCB

Main
Device application	Distribution
Range of product	Acti9
Range	Acti9
Product name	XC60
Product or component type	Miniature circuit-breaker
Device short name	xC60
Poles description	1P
Number of protected poles	1
[In] rated current	40 A
Network type	AC
Trip unit technology	Thermal-magnetic
Curve code	C
Complementary
Network frequency	50/60 Hz
[Ue] rated operational voltage	220...240 V AC 50/60 Hz
Magnetic tripping limit	5...10 x In
Breaking capacity	10000 A Icn at 240 V AC 50/60 Hz conforming to IS/IEC 60898-1
Limitation class	3 conforming to IS/IEC 60898-1
Contact position indicator	Yes
Control type	Toggle
Local signalling	ON/OFF indication
Mounting mode	Clip-on
Mounting support	35 mm DIN rail
Comb busbar and distribution block compatibility	Top: YES
9 mm pitches	2
Height	85 mm
Width	18 mm
Depth	77.5 mm
Colour	White
Mechanical durability	20000 cycles
Electrical durability	10000 cycles
Connections - terminals	Biconnect (bottom), Tunnel type terminals (bottom) 25 mm² flexible / 35 mm² rigid
Wire stripping length	13 mm for top or bottom connection
Tightening torque	3.5 N.m
Earth-leakage protection	Separate block
Product compatibility	C60 auxiliary, C60 accessories
Overvoltage category	IV
