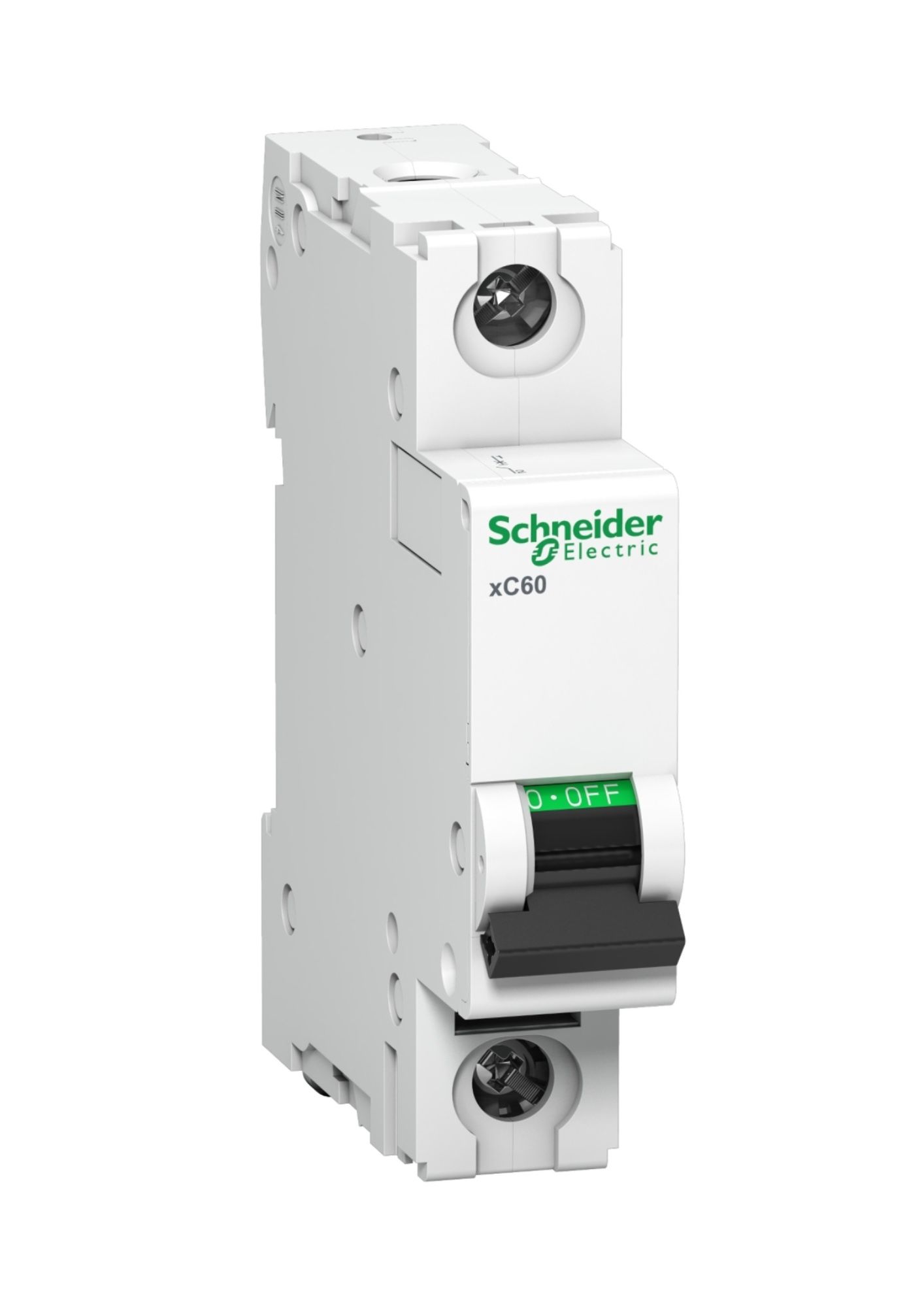

Schneider A9N1P63CGN, Miniature circuit breaker (MCB), 1 Pole, 63Amp, C Curve, 10kA
Schneider A9N1P63CGN, Miniature circuit breaker (MCB), 1 Pole, 63Amp, C Curve, 10kA

Schneider A9N1P63CGN, Miniature circuit breaker (MCB), 1 Pole, 63Amp, C Curve, 10kA

In stock
SKU
A9N1P63CGN
Special Price ₹323.02 Regular Price ₹1,042.00
(18% GST Extra)
Add to Wish List
Acti9 xC60 MCB
  • Acti9 xC60 is a low voltage biconnect miniature circuit breaker (MCB) with 1 pole and 63A rated current (D curve).
  • Breaking capacity: 10,000A at 220–240VAC as per IS/IEC 60898-1 standard.
  • Provides protection against short circuit and overload; green strip ensures safe contact opening.
  • Durability: 20,000 mechanical cycles and 20,000 electrical cycles; insulation voltage: 500VAC; frequency: 50/60Hz.
  • DIN rail/Busbar mounting, 2-pitch width, IP20/IP40 protection, operating range -30°C to 70°C.
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

Acti9 XC60 Specification
Main
Device applicationDistribution
Range of productActi9
RangeActi9
Product nameXC60
Product or component typeMiniature circuit-breaker
Device short namexC60
Poles description1P
Number of protected poles1
[In] rated current63 A
Network typeAC
Trip unit technologyThermal-magnetic
Curve codeC
Complementary
Network frequency50/60 Hz
[Ue] rated operational voltage220...240 V AC 50/60 Hz
Magnetic tripping limit5...10 x In
Breaking capacity10000 A Icn at 240 V AC 50/60 Hz
Limitation class3
Contact position indicatorYes
Control typeToggle
Local signallingON/OFF indication
Mounting modeClip-on
Mounting support35 mm DIN rail
Comb busbar compatibilityTop: YES
9 mm pitches2
Height85 mm
Width18 mm
Depth77.5 mm
ColourWhite
Mechanical durability20000 cycles
Electrical durability10000 cycles
Connections - terminalsBiconnect (bottom)
Tunnel type terminals (flexible)25 mm²
Tunnel type terminals (rigid)35 mm²
Wire stripping length13 mm
Tightening torque3.5 N.m
Earth-leakage protectionSeparate block
Product compatibilityC60 accessories, C60 auxiliary
Overvoltage categoryIV
