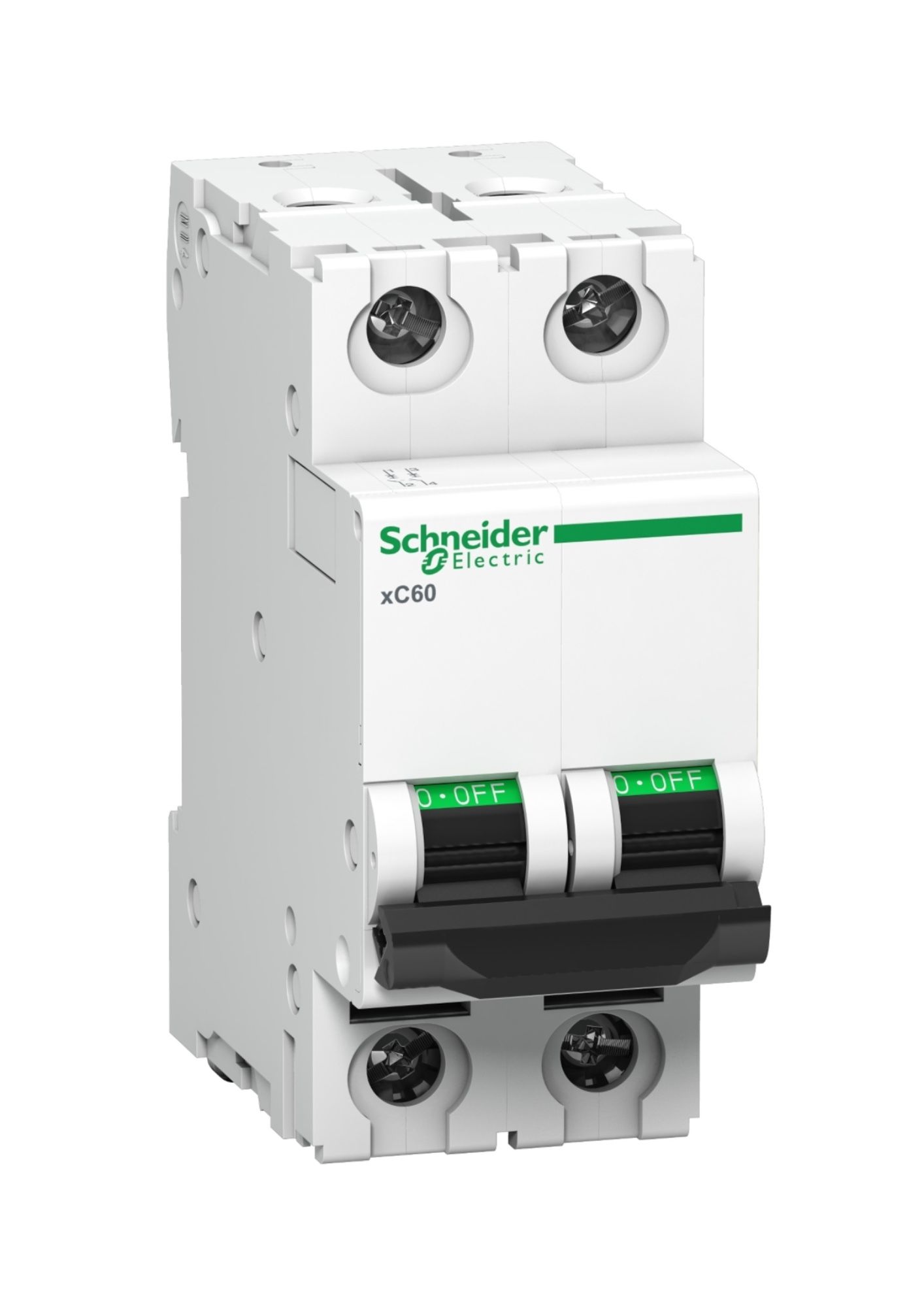

Schneider A9N2P06CGN, Miniature circuit breaker (MCB), 2 Pole, 6Amp, C Curve, 10kA
Schneider A9N2P06CGN, Miniature circuit breaker (MCB), 2 Pole, 6Amp, C Curve, 10kA

Schneider A9N2P06CGN, Miniature circuit breaker (MCB), 2 Pole, 6Amp, C Curve, 10kA

In stock
SKU
A9N2P06CGN
Special Price ₹386.10 Regular Price ₹1,430.00
(18% GST Extra)
Add to Wish List
  • Acti9 xC60 is a 2P miniature circuit breaker with 2 protected poles and 6A rated current (D tripping curve).
  • Protects circuits against short circuit and overload, with breaking capacity up to 10000A at 380-415VAC (IS/IEC 60898-1 compliant).
  • Durability up to 20,000 mechanical and electrical cycles; green strip ensures physical contact opening for safe operation.
  • Specifications: Ui 500VAC, 50/60Hz operating frequency, DIN rail mountable, width 4 x 9mm pitches, color white (RAL9003), pollution degree 3.
  • Environmental protection: IP20/IP40; operating temperature -30°C to 70°C; storage temperature -40°C to 85°C.
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

MCB Table
Main
Device applicationDistribution
Range of productActi9
RangeActi9
Product nameXC60
Product or component typeMiniature circuit-breaker
Device short namexC60
Poles description2P
Number of protected poles2
[In] rated current6 A
Network typeAC
Trip unit technologyThermal-magnetic
Curve codeC
Complementary
Network frequency50/60 Hz
[Ue] rated operational voltage220...240 V AC 50/60 Hz
380...415 V AC 50/60 Hz
Magnetic tripping limit5...10 x In
Breaking capacity10000 A Icn at 240 V AC 50/60 Hz
10000 A Icn at 415 V AC 50/60 Hz
Limitation class3
Contact position indicatorYes
Control typeToggle
Local signallingON/OFF indication
Mounting modeClip-on
Mounting support35 mm DIN rail
Comb busbar compatibilityTop: YES, 9 mm pitches 4
Dimensions (H x W x D)85 x 36 x 77.5 mm
ColourWhite
Mechanical durability20000 cycles
Electrical durability20000 cycles
Connections - terminalsTunnel type (bottom) 16 mm² flexible
Tunnel type (bottom) 25 mm² rigid
Biconnect (bottom)
Wire stripping length13 mm
Tightening torque2 N.m
Earth-leakage protectionSeparate block
Product compatibilityC60 auxiliary, C60 accessories
Overvoltage categoryIV
