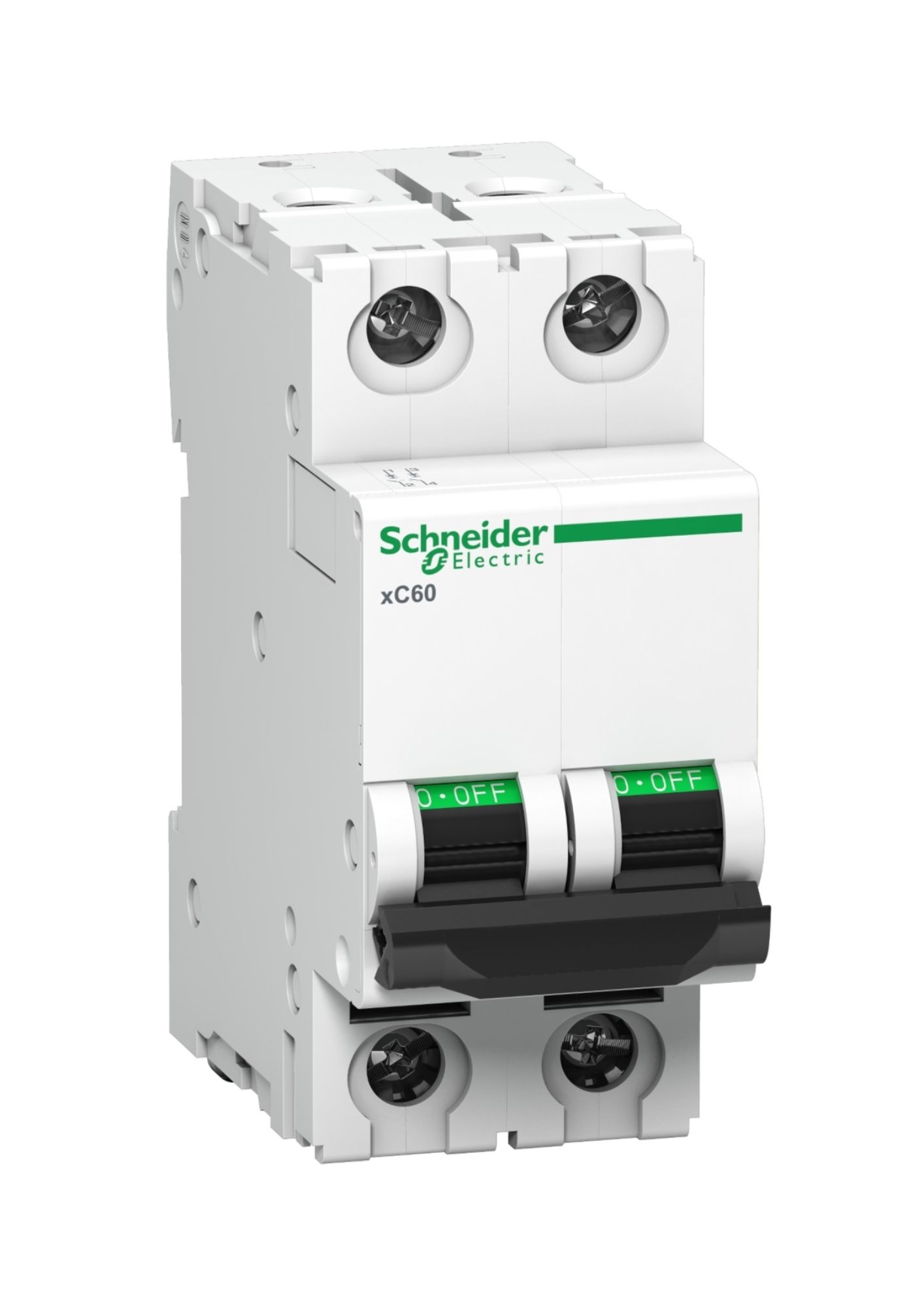

Schneider A9N2P10CGN, Miniature circuit breaker (MCB), 2 Pole, 10Amp, C Curve, 10kA
Schneider A9N2P10CGN, Miniature circuit breaker (MCB), 2 Pole, 10Amp, C Curve, 10kA

Schneider A9N2P10CGN, Miniature circuit breaker (MCB), 2 Pole, 10Amp, C Curve, 10kA

In stock
SKU
A9N2P10CGN
Special Price ₹386.10 Regular Price ₹1,430.00
(18% GST Extra)
Add to Wish List
  • Acti9 xC60 is a 2P low voltage biconnect miniature circuit breaker (MCB) with 10A rated current and D tripping curve.
  • Provides short circuit and overload protection with a breaking capacity up to 10000A at 380-415VAC, conforming to IS/IEC 60898-1.
  • Green strip ensures physical opening of contacts for safe operations; mechanical and electrical durability up to 20000 cycles.
  • Rated insulation voltage 500VAC, operates at 50/60Hz, mountable on DIN rail, width 4 pitches (9mm), pollution degree 3, white color (RAL9003).
  • Degree of protection IP20 (standard) / IP40 (in enclosure); operating temperature -30°C to 70°C, storage temperature -40°C to 85°C.
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

Main
Device application Distribution
Range of product Acti9
Range Acti9
Product name XC60
Product or component type Miniature circuit-breaker
Device short name xC60
Poles description 2P
Number of protected poles 2
[In] rated current 10 A
Network type AC
Trip unit technology Thermal-magnetic
Curve code C
Complementary
Network frequency 50/60 Hz
[Ue] rated operational voltage 220...240 V AC 50/60 Hz
380...415 V AC 50/60 Hz
Magnetic tripping limit 5...10 x In
Breaking capacity 10000 A Icn at 240 V AC
10000 A Icn at 415 V AC (IS/IEC 60898-1)
Limitation class 3 (IS/IEC 60898-1)
Contact position indicator Yes
Control type Toggle
Local signalling ON/OFF indication
Mounting mode Clip-on
Mounting support 35 mm DIN rail
Comb busbar and distribution block compatibility Top: YES, 9 mm pitches 4
Dimensions (H x W x D) 85 x 36 x 77.5 mm
Colour White
Mechanical durability 20000 cycles
Electrical durability 20000 cycles
Connections - terminals Tunnel type terminals bottom: 16 mm² flexible / 25 mm² rigid, Biconnect
Wire stripping length 13 mm (top or bottom)
Tightening torque 2 N.m
Earth-leakage protection Separate block
Product compatibility C60 auxiliary / C60 accessories
Overvoltage category IV

No specifications available for this product.
