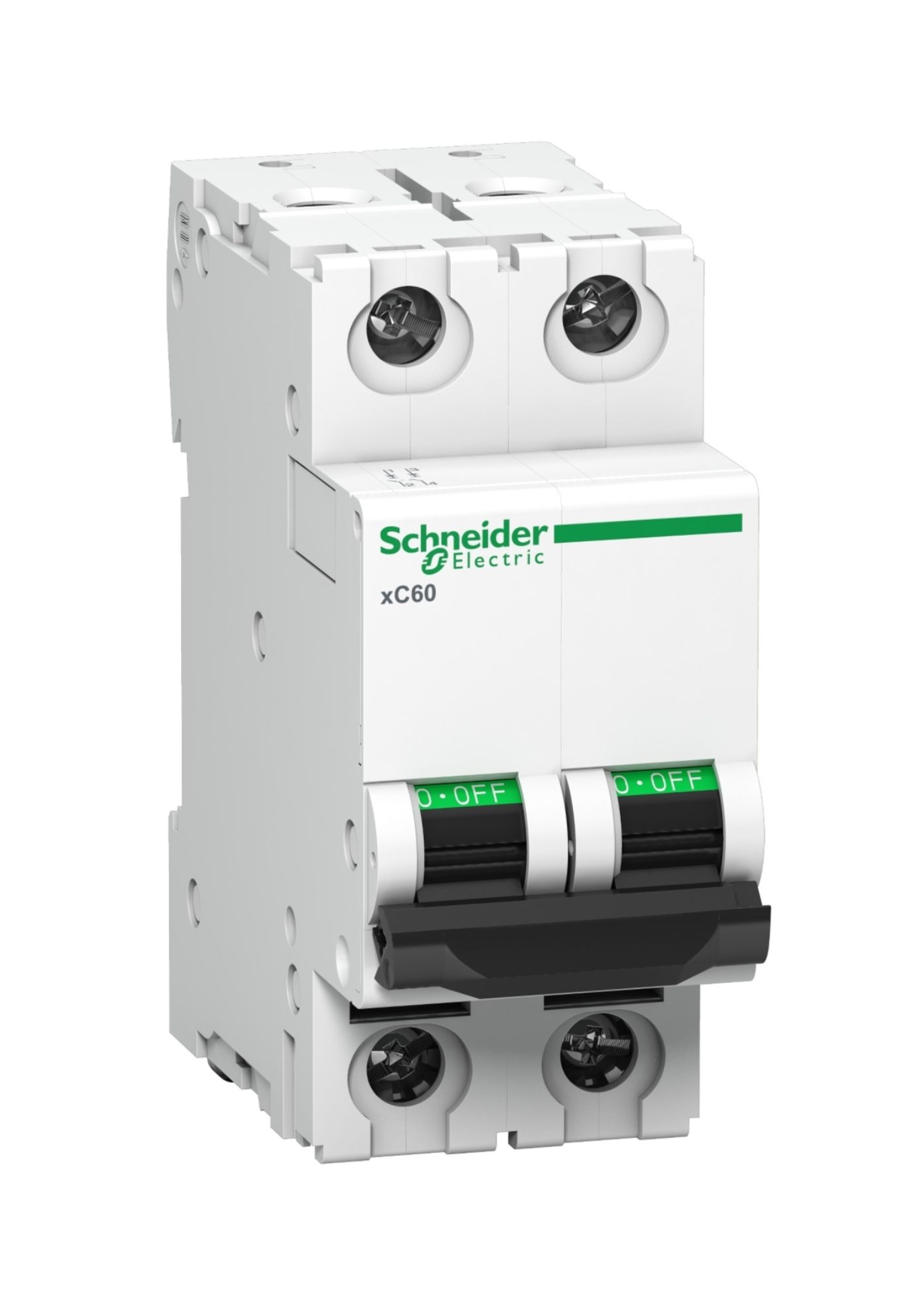

Schneider A9N2P16CGN, Miniature circuit breaker (MCB), 2 Pole, 16Amp, C Curve, 10kA

In stock

SKU

A9N2P16CGN

Special Price ₹501.39 Regular Price ₹1,857.00

(18% GST Extra)

Qty

Add to Wish List

Acti9 xC60 is a low voltage biconnect miniature circuit breaker (MCB), 2P with 2 protected poles and 16A In rated current with D tripping curve.
Rated short-circuit breaking capacity up to 10000A at 380VAC - 415VAC, conforming to IS/IEC 60898-1 standard, protecting against short circuit and overload.
Features include a green strip for guaranteed physical opening of contacts, ensuring safe downstream operations.
Durability: Mechanical up to 20,000 cycles, Electrical up to 20,000 cycles; Ui rated insulation voltage: 500VAC; Operating frequency: 50Hz/60Hz.
Mountable on DIN rail, 4-pitch width (9mm each), Pollution degree 3, Product color: white (RAL9003), Degree of protection: IP20/IP40, Operating temperature: -30°C to 70°C, Storage temperature: -40°C to 85°C.

Schneider A9N2P16CGN, Miniature circuit breaker (MCB), 2 Pole, 16Amp, C Curve, 10kA is available to buy in increments of 1

Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

100% Secure Payment

Acti9 XC60 MCB Specifications

Main
Device application	Distribution
Range of product	Acti9
Range	Acti9
Product name	XC60
Product or component type	Miniature circuit-breaker
Device short name	xC60
Poles description	2P
Number of protected poles	2
[In] rated current	16 A
Network type	AC
Trip unit technology	Thermal-magnetic
Curve code	C
Complementary
Network frequency	50/60 Hz
[Ue] rated operational voltage	220...240 V AC 50/60 Hz 380...415 V AC 50/60 Hz
Magnetic tripping limit	5...10 x In
Breaking capacity	10000 A Icn at 240 V AC 50/60 Hz conforming to IS/IEC 60898-1 10000 A Icn at 415 V AC 50/60 Hz conforming to IS/IEC 60898-1
Limitation class	3 conforming to IS/IEC 60898-1
Contact position indicator	Yes
Control type	Toggle
Local signalling	ON/OFF indication
Mounting mode	Clip-on
Mounting support	35 mm DIN rail
Comb busbar and distribution block compatibility	Top: YES, 9 mm pitches: 4
Height	85 mm
Width	36 mm
Depth	77.5 mm
Colour	White
Mechanical durability	20000 cycles
Electrical durability	20000 cycles
Connections - terminals	Tunnel type terminals (bottom) 16 mm² flexible Tunnel type terminals (bottom) 25 mm² rigid Biconnect (bottom)
Wire stripping length	13 mm for top or bottom connection
Tightening torque	2 N.m
Earth-leakage protection	Separate block
Product compatibility	C60 accessories, C60 auxiliary
Overvoltage category	IV
