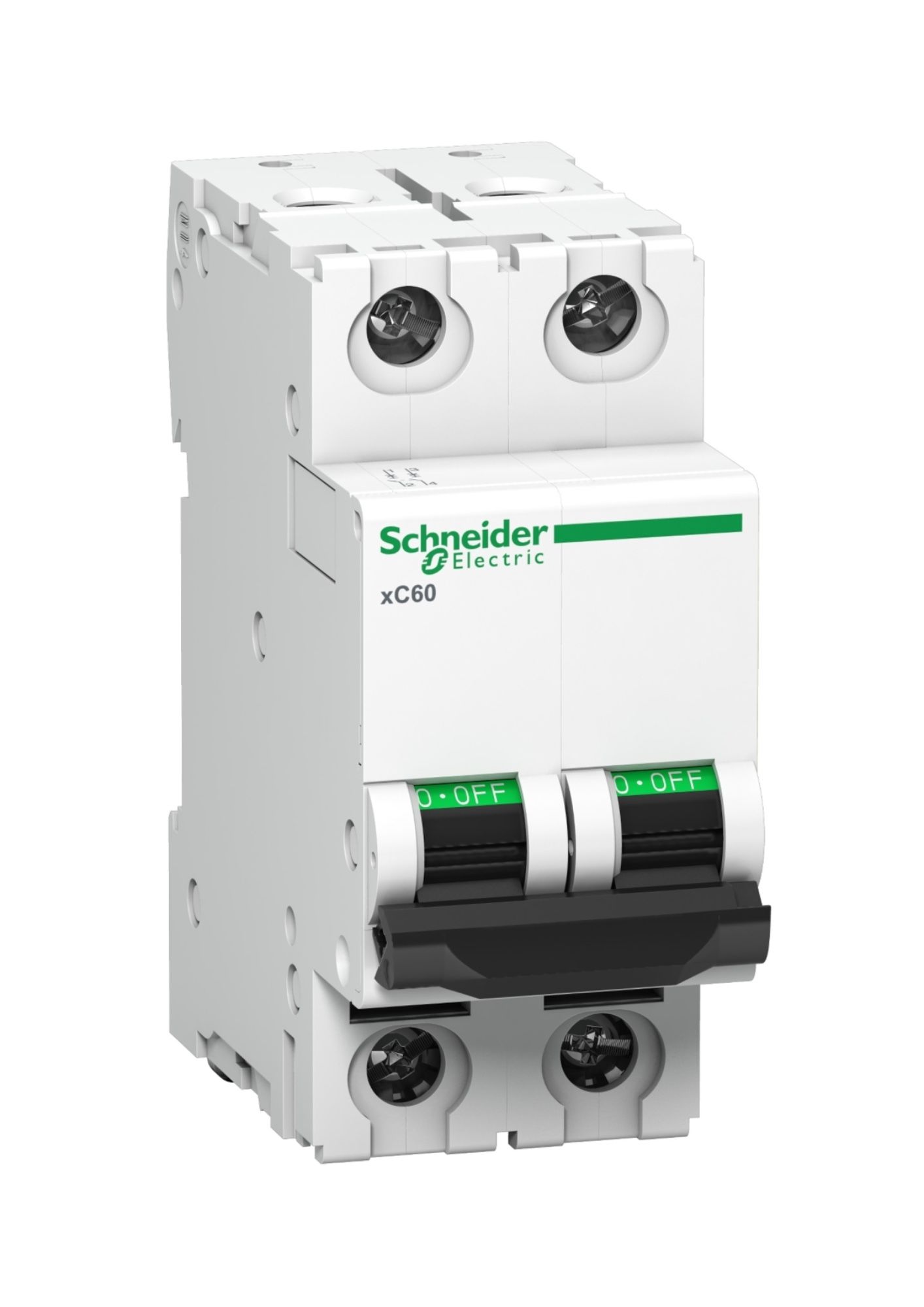

Schneider A9N2P20CGN, Miniature circuit breaker (MCB), 2 Pole, 20Amp, C Curve, 10kA
Schneider A9N2P20CGN, Miniature circuit breaker (MCB), 2 Pole, 20Amp, C Curve, 10kA

Schneider A9N2P20CGN, Miniature circuit breaker (MCB), 2 Pole, 20Amp, C Curve, 10kA

In stock
SKU
A9N2P20CGN
Special Price ₹386.10 Regular Price ₹1,430.00
(18% GST Extra)
Add to Wish List
  • Acti9 xC60 is a 2P low-voltage biconnect miniature circuit breaker (MCB) with 2 protected poles and 20A rated current (D tripping curve).
  • Rated short-circuit breaking capacity up to 10,000A at 380–415VAC, conforming to IS/IEC 60898-1 standard.
  • Mechanical and electrical durability: up to 20,000 cycles; Ui rated insulation voltage: 500VAC; operating frequency: 50/60Hz.
  • Mountable on DIN rail, width: 4 × 9mm pitches, pollution degree 3, color: white (RAL9003), IP20/IP40 protection.
  • Operating temperature: -30°C to 70°C; storage temperature: -40°C to 85°C; green strip ensures safe downstream operations.
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

Acti9 XC60 MCB
Main
Device applicationDistribution
Range of productActi9
RangeActi9
Product nameXC60
Product or component typeMiniature circuit-breaker
Device short namexC60
Poles description2P
Number of protected poles2
[In] rated current20 A
Network typeAC
Trip unit technologyThermal-magnetic
Curve codeC
Complementary
Network frequency50/60 Hz
[Ue] rated operational voltage220...240 V AC 50/60 Hz
380...415 V AC 50/60 Hz
Magnetic tripping limit5...10 x In
Breaking capacity10000 A at 240 V AC
10000 A at 415 V AC
Limitation class3
Contact position indicatorYes
Control typeToggle
Local signallingON/OFF indication
Mounting modeClip-on
Mounting support35 mm DIN rail
Comb busbar compatibilityTop: YES, 9 mm pitches: 4
Dimensions (HxWxD)85 x 36 x 77.5 mm
ColourWhite
Mechanical durability20000 cycles
Electrical durability20000 cycles
Connections - terminalsTunnel type bottom 16 mm² flexible
Tunnel type bottom 25 mm² rigid
Biconnect bottom
Wire stripping length13 mm
Tightening torque2 N.m
Earth-leakage protectionSeparate block
Product compatibilityC60 auxiliary & accessories
Overvoltage categoryIV
