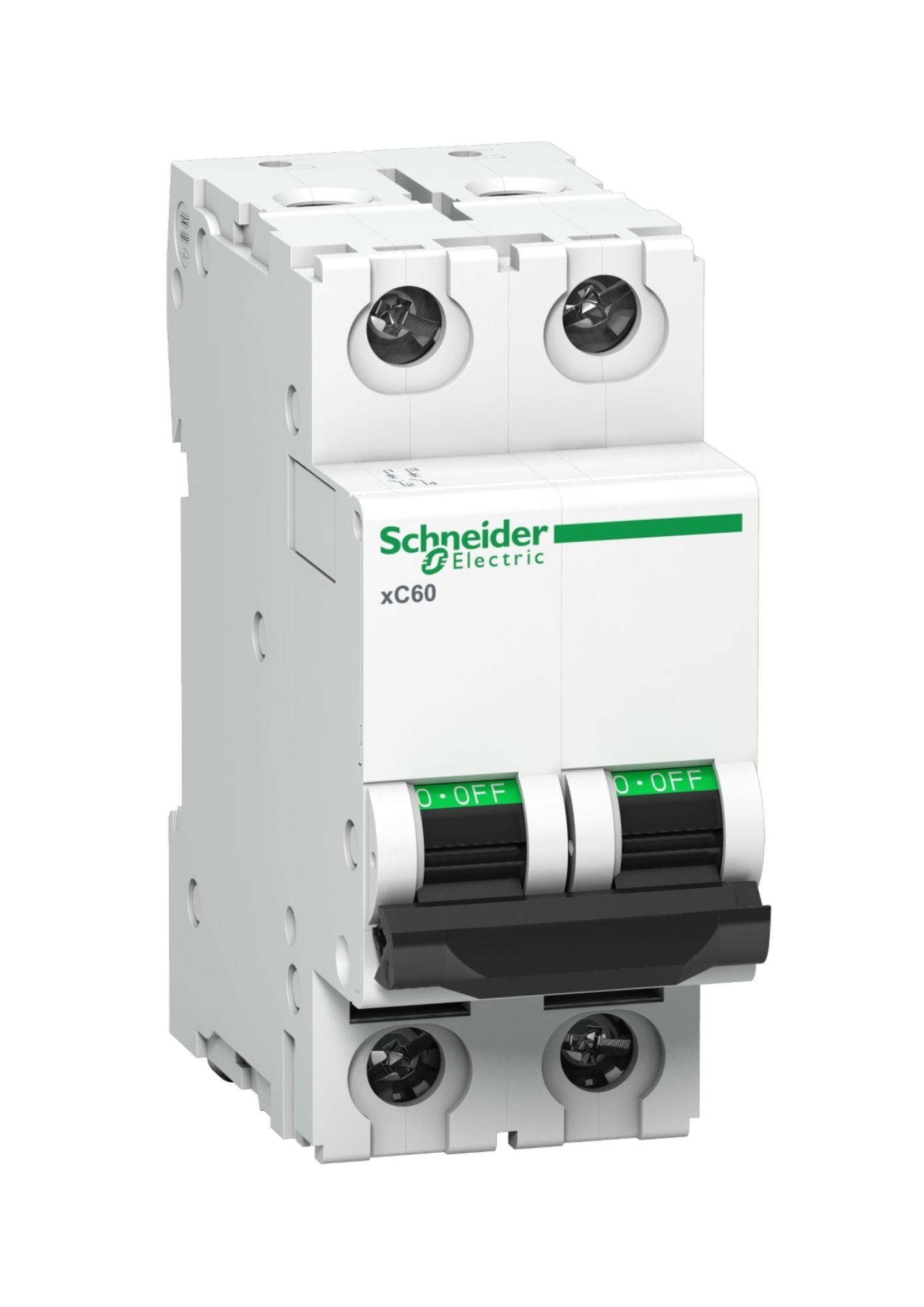

Schneider A9N2P25CGN, Miniature circuit breaker (MCB), 2 Pole, 25Amp, C Curve, 10kA
Schneider A9N2P25CGN, Miniature circuit breaker (MCB), 2 Pole, 25Amp, C Curve, 10kA

Schneider A9N2P25CGN, Miniature circuit breaker (MCB), 2 Pole, 25Amp, C Curve, 10kA

In stock
SKU
A9N2P25CGN
Special Price ₹386.10 Regular Price ₹1,430.00
(18% GST Extra)
Add to Wish List
  • Acti9 xC60 is a low voltage 2-pole (2P) miniature circuit breaker with 25A rated current and D tripping curve.
  • Provides short-circuit and overload protection with a breaking capacity of up to 10,000A at 380-415VAC (IS/IEC 60898-1 compliant).
  • Green strip ensures physical opening of contacts for safe downstream operations; mechanical and electrical durability up to 20,000 cycles.
  • Rated insulation voltage Ui: 500VAC, operating frequency: 50/60Hz, mountable on DIN rail, width: 4 x 9mm pitches, pollution degree: 3.
  • Product color: white (RAL9003), protection degree: IP20/IP40, operating temperature: -30°C to 70°C, storage temperature: -40°C to 85°C.
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

Acti9 XC60 MCB Specifications
Main
Device applicationDistribution
Range of productActi9
RangeActi9
Product nameXC60
Product or component typeMiniature circuit-breaker
Device short namexC60
Poles description2P
Number of protected poles2
[In] rated current25 A
Network typeAC
Trip unit technologyThermal-magnetic
Curve codeC
Complementary
Network frequency50/60 Hz
[Ue] rated operational voltage220...240 V AC 50/60 Hz
380...415 V AC 50/60 Hz
Magnetic tripping limit5...10 x In
Breaking capacity10000 A Icn at 240 V AC 50/60 Hz
10000 A Icn at 415 V AC 50/60 Hz
Limitation class3
Contact position indicatorYes
Control typeToggle
Local signallingON/OFF indication
Mounting modeClip-on
Mounting support35 mm DIN rail
Comb busbar compatibilityTop: YES, 9 mm pitches, 4
Height85 mm
Width36 mm
Depth77.5 mm
ColourWhite
Mechanical durability20000 cycles
Electrical durability10000 cycles
Connections - terminalsTunnel type 16 mm² flexible, 25 mm² rigid
Biconnect (bottom)
Wire stripping length13 mm
Tightening torque2 N.m
Earth-leakage protectionSeparate block
Product compatibilityC60 auxiliary, C60 accessories
Overvoltage categoryIV
