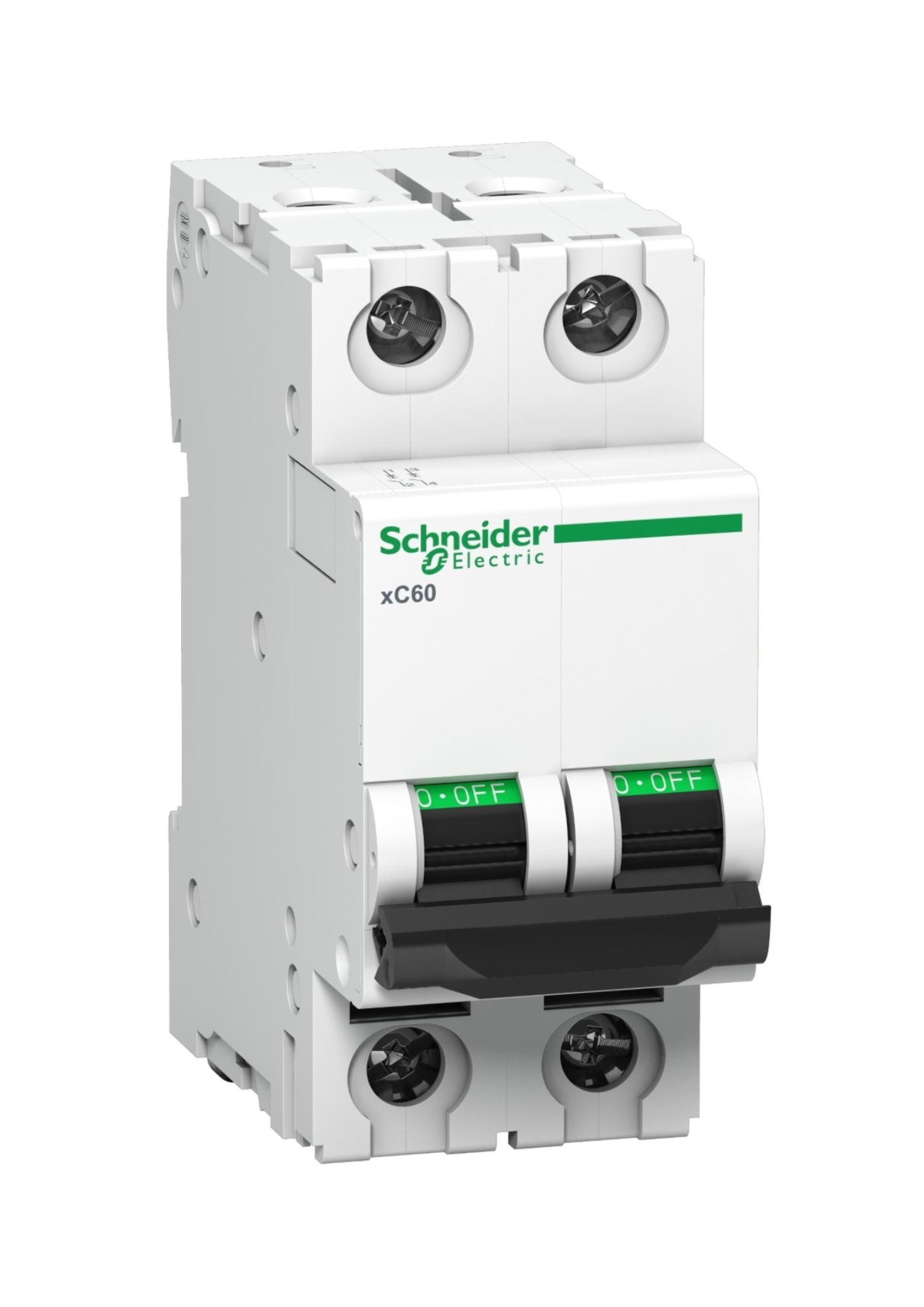

Schneider A9N2P32CGN, Miniature circuit breaker (MCB), 2 Pole, 32Amp, C Curve, 10kA
Schneider A9N2P32CGN, Miniature circuit breaker (MCB), 2 Pole, 32Amp, C Curve, 10kA

Schneider A9N2P32CGN, Miniature circuit breaker (MCB), 2 Pole, 32Amp, C Curve, 10kA

In stock
SKU
A9N2P32CGN
Special Price ₹386.10 Regular Price ₹1,430.00
(18% GST Extra)
Add to Wish List
  • Low voltage biconnect miniature circuit breaker (MCB), 2P with 2 protected poles and 32A In rated current with D tripping curve.
  • Rated short circuit breaking capacity up to 10,000A at 380VAC - 415VAC, conforming to IS/IEC 60898-1 standard.
  • Protects circuits against short circuit and overload; green strip ensures physical opening of contacts for safe downstream operations.
  • Mechanical and electrical durability up to 20,000 cycles; Ui rated insulation voltage: 500VAC; operating frequency: 50Hz/60Hz.
  • DIN rail mountable, 4 pitches of 9mm; pollution degree 3; color: white (RAL9003); IP20/IP40 protection; operating temperature -30°C to 70°C, storage temperature -40°C to 85°C.
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

Acti9 XC60 MCB Specifications
Main
Device applicationDistribution
Range of productActi9
RangeActi9
Product nameXC60
Product or component typeMiniature circuit-breaker
Device short namexC60
Poles description2P
Number of protected poles2
[In] rated current32 A
Network typeAC
Trip unit technologyThermal-magnetic
Curve codeC
Complementary
Network frequency50/60 Hz
[Ue] rated operational voltage220...240 V AC 50/60 Hz
380...415 V AC 50/60 Hz
Magnetic tripping limit5...10 x In
Breaking capacity10000 A Icn at 240 V AC 50/60 Hz conforming to IS/IEC 60898-1
10000 A Icn at 415 V AC 50/60 Hz conforming to IS/IEC 60898-1
Limitation class3 conforming to IS/IEC 60898-1
Contact position indicatorYes
Control typeToggle
Local signallingON/OFF indication
Mounting modeClip-on
Mounting support35 mm DIN rail
Comb busbar and distribution block compatibilityTop: YES, 9 mm pitches, 4
Height85 mm
Width36 mm
Depth77.5 mm
ColourWhite
Mechanical durability20000 cycles
Electrical durability10000 cycles
Connections - terminalsBiconnect (bottom)
Tunnel type terminals (bottom) 25 mm² flexible
Tunnel type terminals (bottom) 35 mm² rigid
Wire stripping length13 mm for top or bottom connection
Tightening torque3.5 N.m
Earth-leakage protectionSeparate block
Product compatibilityC60 auxiliary, C60 accessories
Overvoltage categoryIV
