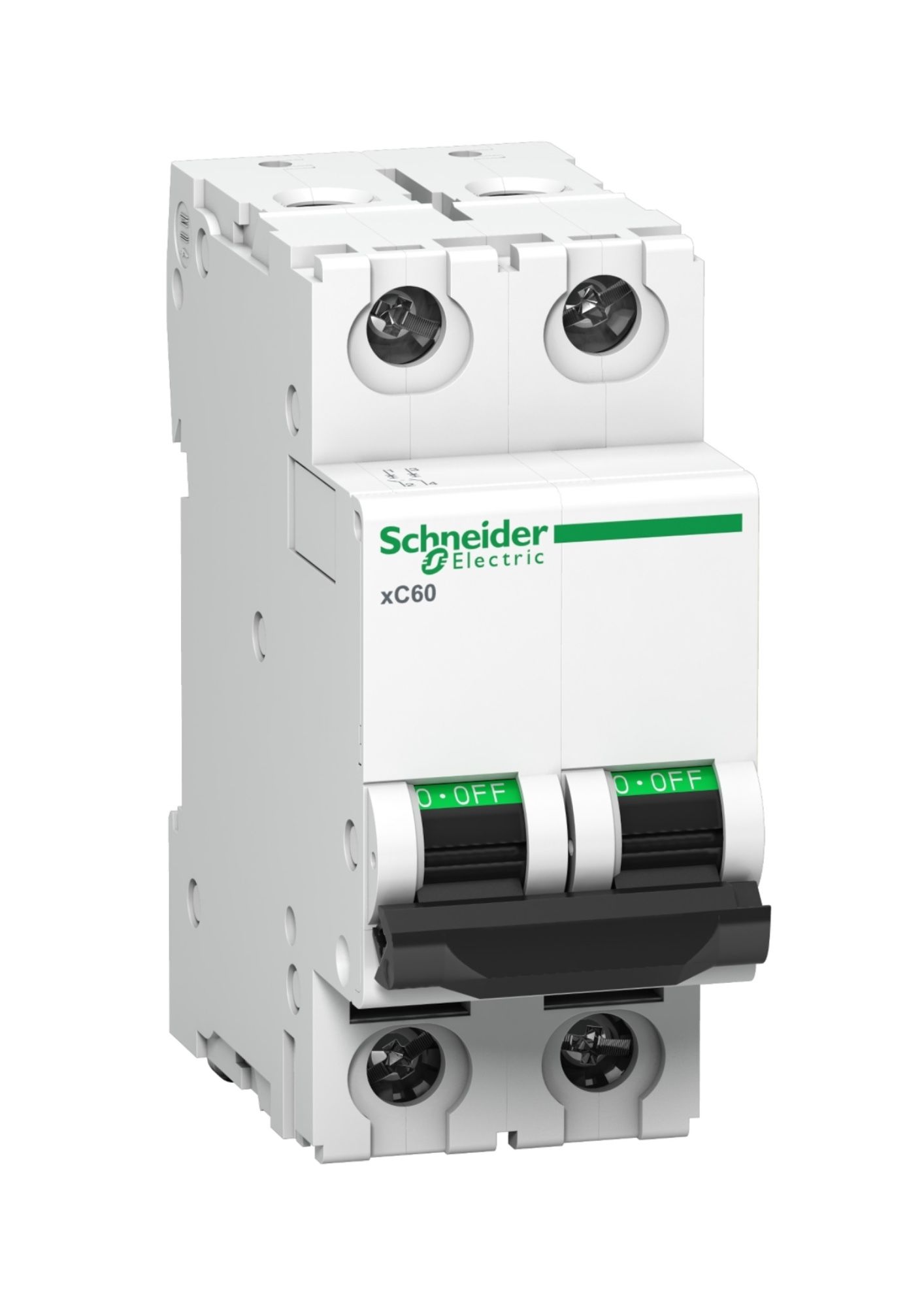

Schneider A9N2P40CGN, Miniature circuit breaker (MCB), 2 Pole, 40Amp, C Curve, 10kA
In stock
SKU
A9N2P40CGN
Special Price
₹807.03
Regular Price
₹2,989.00
Schneider A9N2P40CGN, Miniature circuit breaker (MCB), 2 Pole, 40Amp, C Curve, 10kA is available to buy in increments of 1
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Main | |
|---|---|
| Device application | Distribution |
| Range of product | Acti9 |
| Range | Acti9 |
| Product name | XC60 |
| Product or component type | Miniature circuit-breaker |
| Device short name | xC60 |
| Poles description | 2P |
| Number of protected poles | 2 |
| [In] rated current | 40 A |
| Network type | AC |
| Trip unit technology | Thermal-magnetic |
| Curve code | C |
| Complementary | |
| Network frequency | 50/60 Hz |
| [Ue] rated operational voltage | 220...240 V AC 50/60 Hz 380...415 V AC 50/60 Hz |
| Magnetic tripping limit | 5...10 x In |
| Breaking capacity | 10000 A Icn at 240 V AC 50/60 Hz 10000 A Icn at 415 V AC 50/60 Hz Conforming to IS/IEC 60898-1 |
| Limitation class | 3 conforming to IS/IEC 60898-1 |
| Contact position indicator | Yes |
| Control type | Toggle |
| Local signalling | ON/OFF indication |
| Mounting mode | Clip-on |
| Mounting support | 35 mm DIN rail |
| Comb busbar and distribution block compatibility | Top: YES, 9 mm pitches 4 |
| Height | 85 mm |
| Width | 36 mm |
| Depth | 77.5 mm |
| Colour | White |
| Mechanical durability | 20000 cycles |
| Electrical durability | 10000 cycles |
| Connections - terminals | Biconnect (bottom) Tunnel type terminals (bottom) 25 mm² flexible Tunnel type terminals (bottom) 35 mm² rigid |
| Wire stripping length | 13 mm for top or bottom connection |
| Tightening torque | 3.5 N.m |
| Earth-leakage protection | Separate block |
| Product compatibility | C60 accessories, C60 auxiliary |
| Overvoltage category | IV |
