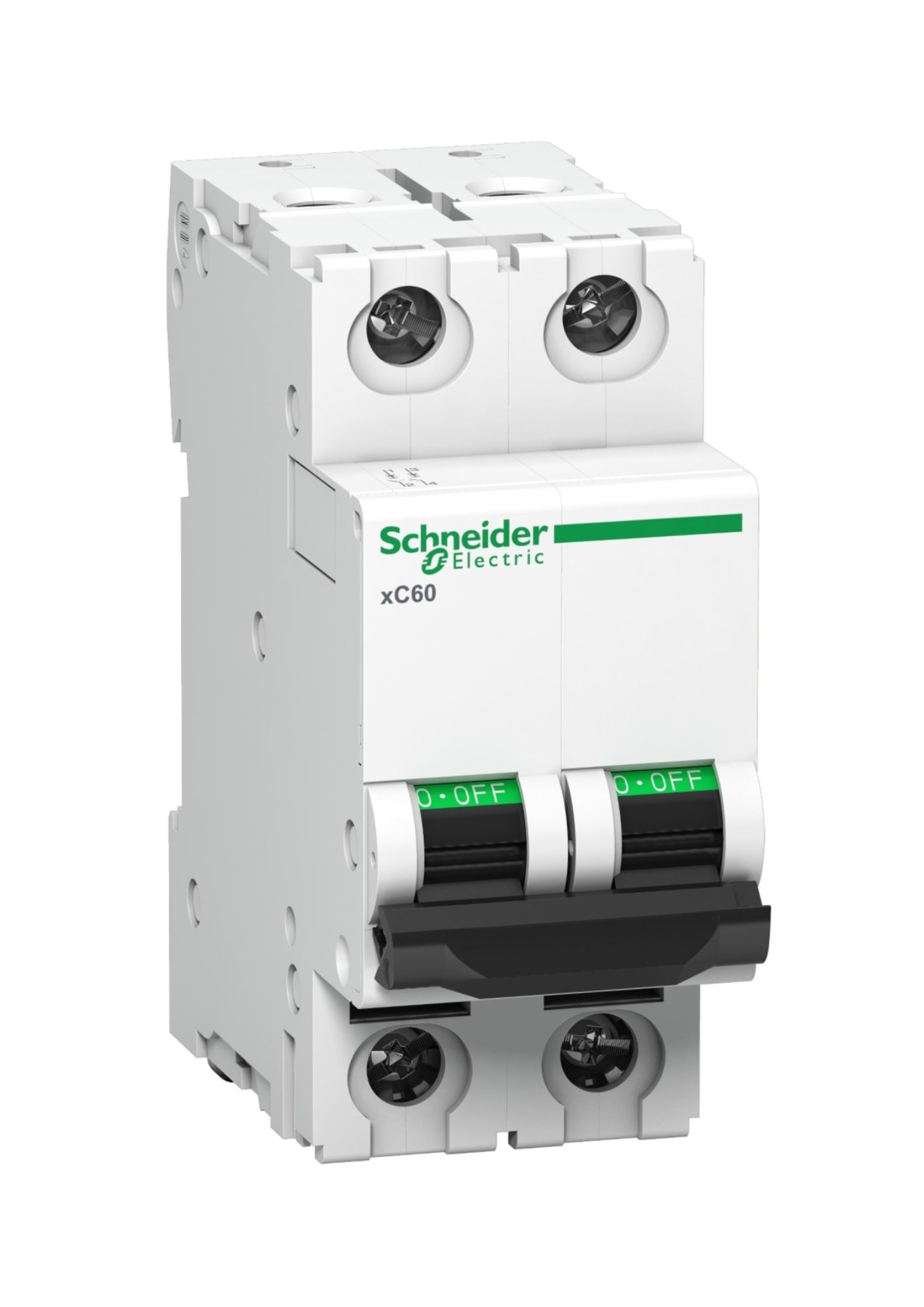

Schneider A9N2P63CGN, Miniature circuit breaker (MCB), 2 Pole, 63Amp, C Curve, 10kA
Schneider A9N2P63CGN, Miniature circuit breaker (MCB), 2 Pole, 63Amp, C Curve, 10kA

Schneider A9N2P63CGN, Miniature circuit breaker (MCB), 2 Pole, 63Amp, C Curve, 10kA

In stock
SKU
A9N2P63CGN
Special Price ₹626.94 Regular Price ₹2,322.00
(18% GST Extra)
Add to Wish List
  • 2P miniature circuit breaker (MCB) with 63A rated current, D tripping curve, and 2 protected poles
  • Short-circuit breaking capacity up to 10000A at 380-415VAC (IS/IEC 60898-1)
  • Green strip ensures physical opening of contacts for safe downstream operations
  • Mechanical and electrical durability: 20,000 cycles each; Ui rated insulation voltage: 500VAC
  • Mountable on DIN rail, IP20/IP40 protection, operating temperature -30°C to 70°C, storage -40°C to 85°C
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

Acti9 XC60 MCB Specifications
Main
Device application Distribution
Range of product Acti9
Range Acti9
Product name XC60
Product or component type Miniature circuit-breaker
Device short name xC60
Poles description 2P
Number of protected poles 2
[In] rated current 63 A
Network type AC
Trip unit technology Thermal-magnetic
Curve code C
Complementary
Network frequency 50/60 Hz
[Ue] rated operational voltage 220...240 V AC 50/60 Hz
380...415 V AC 50/60 Hz
Magnetic tripping limit 5...10 x In
Breaking capacity 10000 A Icn at 240 V AC 50/60 Hz conforming to IS/IEC 60898-1
10000 A Icn at 415 V AC 50/60 Hz conforming to IS/IEC 60898-1
Limitation class 3 conforming to IS/IEC 60898-1
Contact position indicator Yes
Control type Toggle
Local signalling ON/OFF indication
Mounting mode Clip-on
Mounting support 35 mm DIN rail
Comb busbar and distribution block compatibility Top: YES, 9 mm pitches 4
Height 85 mm
Width 36 mm
Depth 77.5 mm
Colour White
Mechanical durability 20000 cycles
Electrical durability 10000 cycles
Connections - terminals Biconnect (bottom)
Tunnel type terminals (bottom) 25 mm² flexible
Tunnel type terminals (bottom) 35 mm² rigid
Wire stripping length 13 mm for top or bottom connection
Tightening torque 3.5 N.m
Earth-leakage protection Separate block
Product compatibility C60 accessories, C60 auxiliary
Overvoltage category IV

No specifications available for this product.
