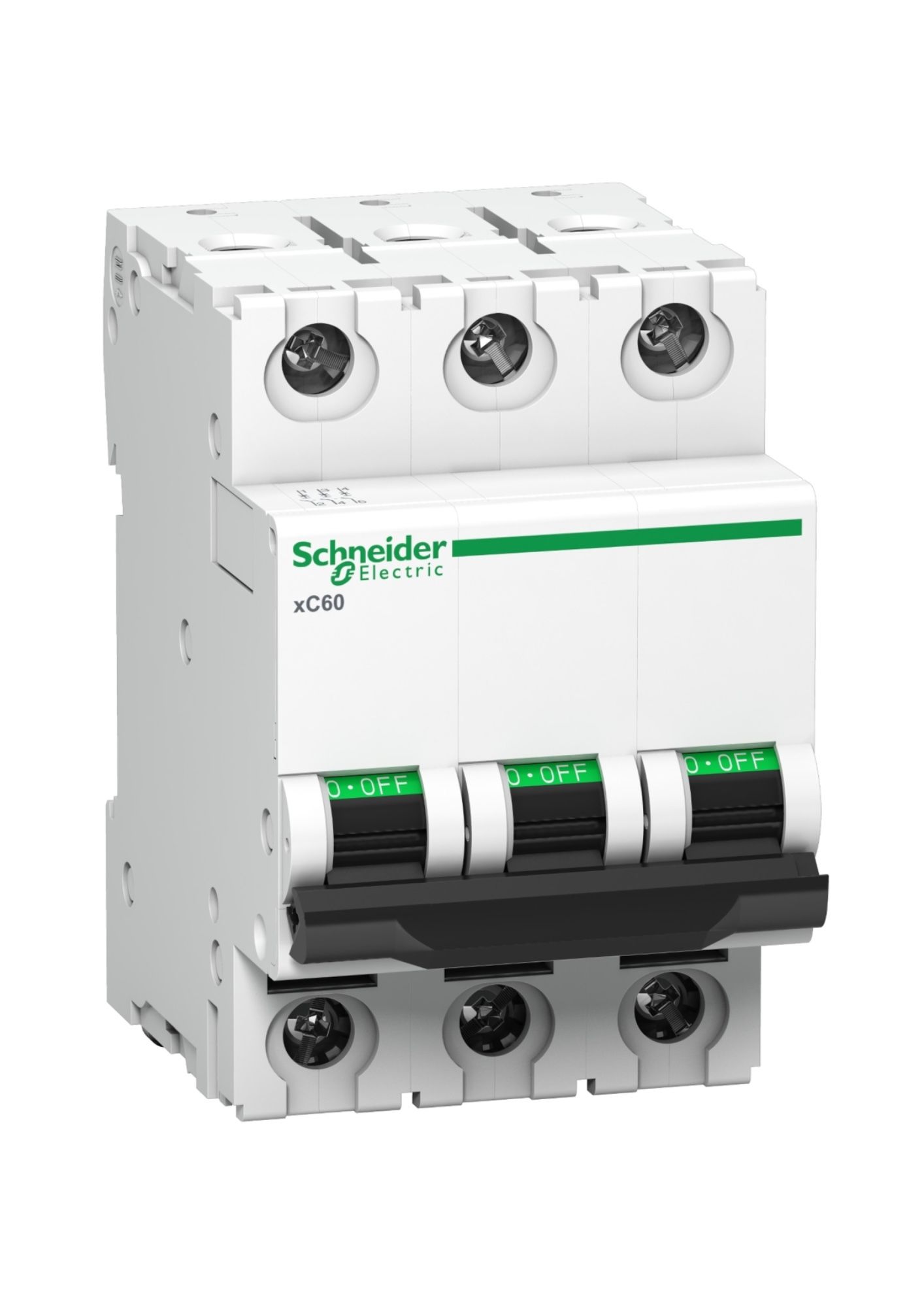

Schneider A9N3P06CGN, Miniature circuit breaker (MCB), 3 Pole, 6Amp, C Curve, 10kA
Schneider A9N3P06CGN, Miniature circuit breaker (MCB), 3 Pole, 6Amp, C Curve, 10kA

Schneider A9N3P06CGN, Miniature circuit breaker (MCB), 3 Pole, 6Amp, C Curve, 10kA

In stock
SKU
A9N3P06CGN
Special Price ₹640.71 Regular Price ₹2,373.00
(18% GST Extra)
Add to Wish List
  • Acti9 xC60 is a 3P low voltage biconnect miniature circuit breaker (MCB) with 3 protected poles and 6A rated current (D tripping curve).
  • Short-circuit breaking capacity up to 10,000A at 380–415VAC; protects against short circuit and overload; green strip ensures physical contact opening for safe downstream operation.
  • Mechanical and electrical durability up to 20,000 cycles; rated insulation voltage (Ui) 500VAC; operating frequency 50Hz/60Hz.
  • Mountable on DIN rail or Vertical Fishbone Busbar; width 6 pitches of 9mm; pollution degree 3; product color white (RAL9003).
  • Degree of protection: IP20 (standard), IP40 (in enclosure); operating temperature -30°C to 70°C; storage temperature -40°C to 85°C.
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

Main
Device application Distribution
Range of product Acti9
Range Acti9
Product name XC60
Product or component type Miniature circuit-breaker
Device short name xC60
Poles description 3P
Number of protected poles 3
[In] rated current 6 A
Network type AC
Trip unit technology Thermal-magnetic
Curve code C
Complementary
Network frequency 50/60 Hz
[Ue] rated operational voltage 220...240 V AC 50/60 Hz
380...415 V AC 50/60 Hz
Magnetic tripping limit 5...10 x In
Breaking capacity 10000 A Icn at 240 V AC
10000 A Icn at 415 V AC
Limitation class 3
Contact position indicator Yes
Control type Toggle
Local signalling ON/OFF indication
Mounting mode Clip-on
Mounting support 35 mm DIN rail
Comb busbar compatibility Top: YES, 9 mm pitches 6
Dimensions (H x W x D) 85 x 54 x 77.5 mm
Colour White
Durability (mechanical/electrical) 20000 cycles / 20000 cycles
Connections - terminals Tunnel type terminals 16 mm² flexible
25 mm² rigid, Biconnect (bottom)
Wire stripping length 13 mm
Tightening torque 2 N.m
Earth-leakage protection Separate block
Product compatibility C60 accessories, C60 auxiliary
Overvoltage category IV
