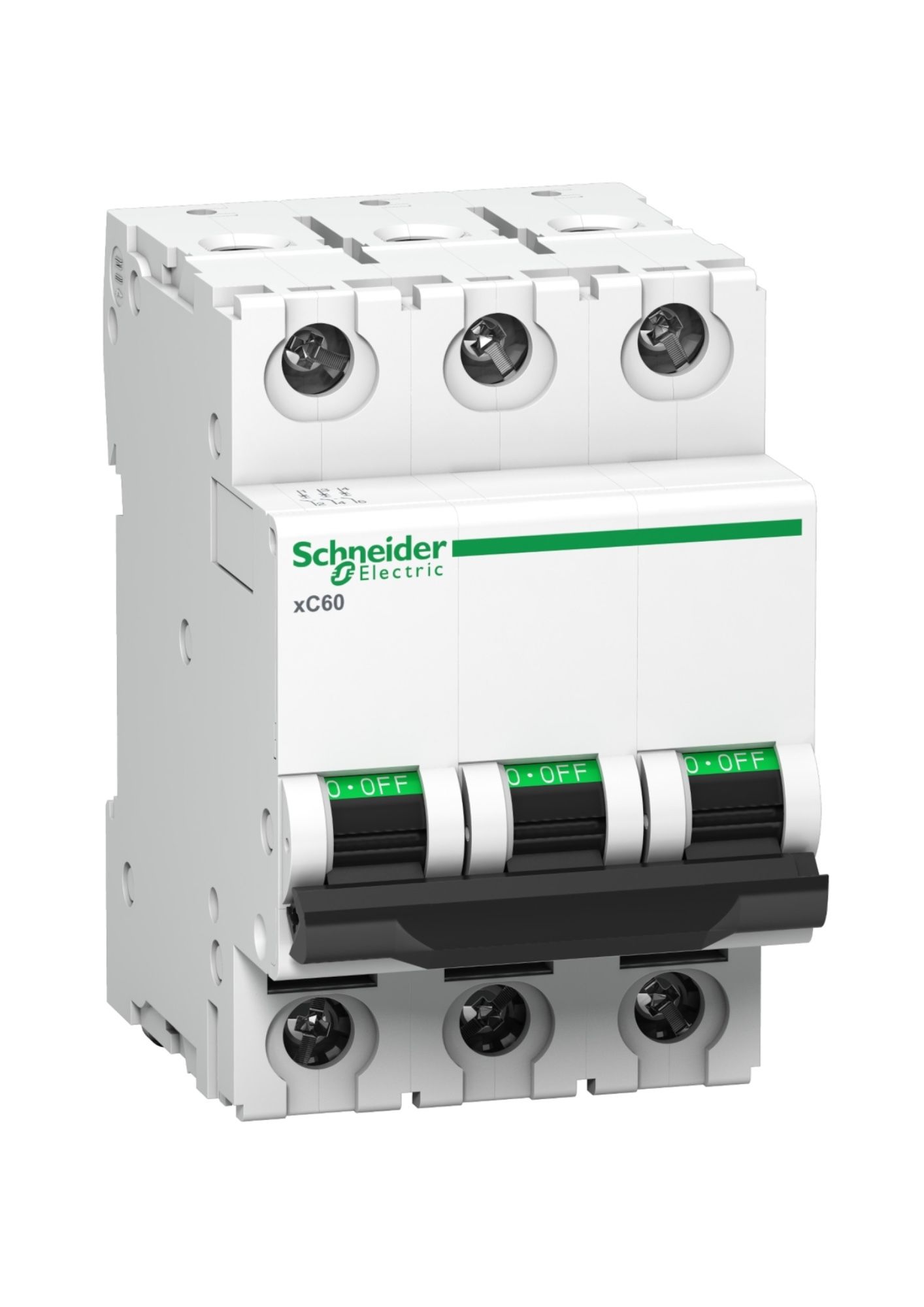

Schneider A9N3P16CGN, Miniature circuit breaker (MCB), 3 Pole, 16Amp, C Curve, 10kA
Schneider A9N3P16CGN, Miniature circuit breaker (MCB), 3 Pole, 16Amp, C Curve, 10kA

Schneider A9N3P16CGN, Miniature circuit breaker (MCB), 3 Pole, 16Amp, C Curve, 10kA

In stock
SKU
A9N3P16CGN
Special Price ₹831.60 Regular Price ₹3,080.00
(18% GST Extra)
Add to Wish List
  • 3P Acti9 xC60 miniature circuit breaker with 16A rated current (D curve)
  • Protects against short circuit and overload, rated breaking capacity 10000A (380-415VAC)
  • Green strip ensures safe physical opening of contacts
  • Durability: 20000 mechanical & electrical cycles, insulation voltage 500VAC
  • Mountable on DIN rail or busbar, operating temp -30°C to 70°C, IP20/IP40 protection
Schneider A9N3P16CGN, Miniature circuit breaker (MCB), 3 Pole, 16Amp, C Curve, 10kA is available to buy in increments of 1
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

Main
Device application Distribution
Range of product Acti9
Range Acti9
Product name XC60
Product or component type Miniature circuit-breaker
Device short name xC60
Poles description 3P
Number of protected poles 3
[In] rated current 16 A
Network type AC
Trip unit technology Thermal-magnetic
Curve code C
Complementary
Network frequency 50/60 Hz
[Ue] rated operational voltage 220...240 V AC / 380...415 V AC
Magnetic tripping limit 5...10 x In
Breaking capacity 10000 A Icn at 240/415 V AC
Limitation class 3
Contact position indicator Yes
Control type Toggle
Local signalling ON/OFF indication
Mounting mode Clip-on
Mounting support 35 mm DIN rail
Comb busbar and distribution block compatibility Top: YES, 9 mm pitches: 6
Dimensions (HxWxD) 85 x 54 x 77.5 mm
Colour White
Mechanical durability 20000 cycles
Electrical durability 20000 cycles
Connections - terminals Tunnel type (bottom) 16 mm² flexible, 25 mm² rigid, Biconnect bottom
Wire stripping length 13 mm for top or bottom connection
Tightening torque 2 N.m
Earth-leakage protection Separate block
Product compatibility C60 auxiliary, C60 accessories
Overvoltage category IV

No specifications available for this product.
