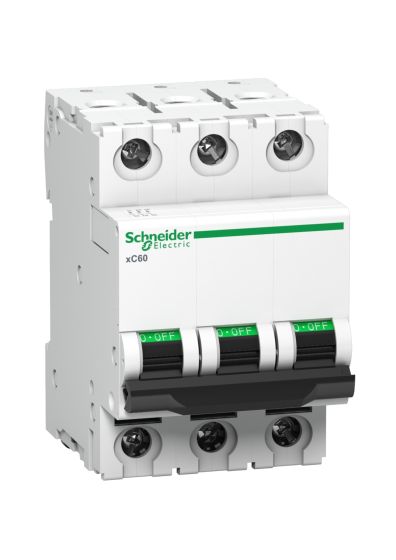

Schneider A9N3P20CGN, Miniature circuit breaker (MCB), 3 Pole, 20Amp, C Curve, 10kA
Schneider A9N3P20CGN, Miniature circuit breaker (MCB), 3 Pole, 20Amp, C Curve, 10kA

Schneider A9N3P20CGN, Miniature circuit breaker (MCB), 3 Pole, 20Amp, C Curve, 10kA

In stock
SKU
A9N3P20CGN
Special Price ₹640.71 Regular Price ₹2,373.00
(18% GST Extra)
Add to Wish List
  • 3P MCB, 20A, D curve, 380-415VAC
  • Protects against short circuit and overload
  • Green strip ensures safe contact opening
  • Durable: 20,000 cycles, 500VAC insulation
  • Mounts on DIN rail or busbar, IP20/IP40
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

Acti9 XC60 MCB Specifications
Main
Device application Distribution
Range of product Acti9
Range Acti9
Product name XC60
Product or component type Miniature circuit-breaker
Device short name xC60
Poles description 3P
Number of protected poles 3
[In] rated current 20 A
Network type AC
Trip unit technology Thermal-magnetic
Curve code C
Complementary
Network frequency 50/60 Hz
[Ue] rated operational voltage 220...240 V AC 50/60 Hz
380...415 V AC 50/60 Hz
Magnetic tripping limit 5...10 x In
Breaking capacity 10000 A Icn at 240 V AC 50/60 Hz
10000 A Icn at 415 V AC 50/60 Hz
Conforming to IS/IEC 60898-1
Limitation class 3 conforming to IS/IEC 60898-1
Contact position indicator Yes
Control type Toggle
Local signalling ON/OFF indication
Mounting mode Clip-on
Mounting support 35 mm DIN rail
Comb busbar and distribution block compatibility Top: YES, 9 mm pitches: 6
Height 85 mm
Width 54 mm
Depth 77.5 mm
Colour White
Mechanical durability 20000 cycles
Electrical durability 20000 cycles
Connections - terminals Tunnel type terminals (bottom) 16 mm² flexible
Tunnel type terminals (bottom) 25 mm² rigid
Biconnect (bottom)
Wire stripping length 13 mm for top or bottom connection
Tightening torque 2 N.m
Earth-leakage protection Separate block
Product compatibility C60 auxiliary, C60 accessories
Overvoltage category IV
