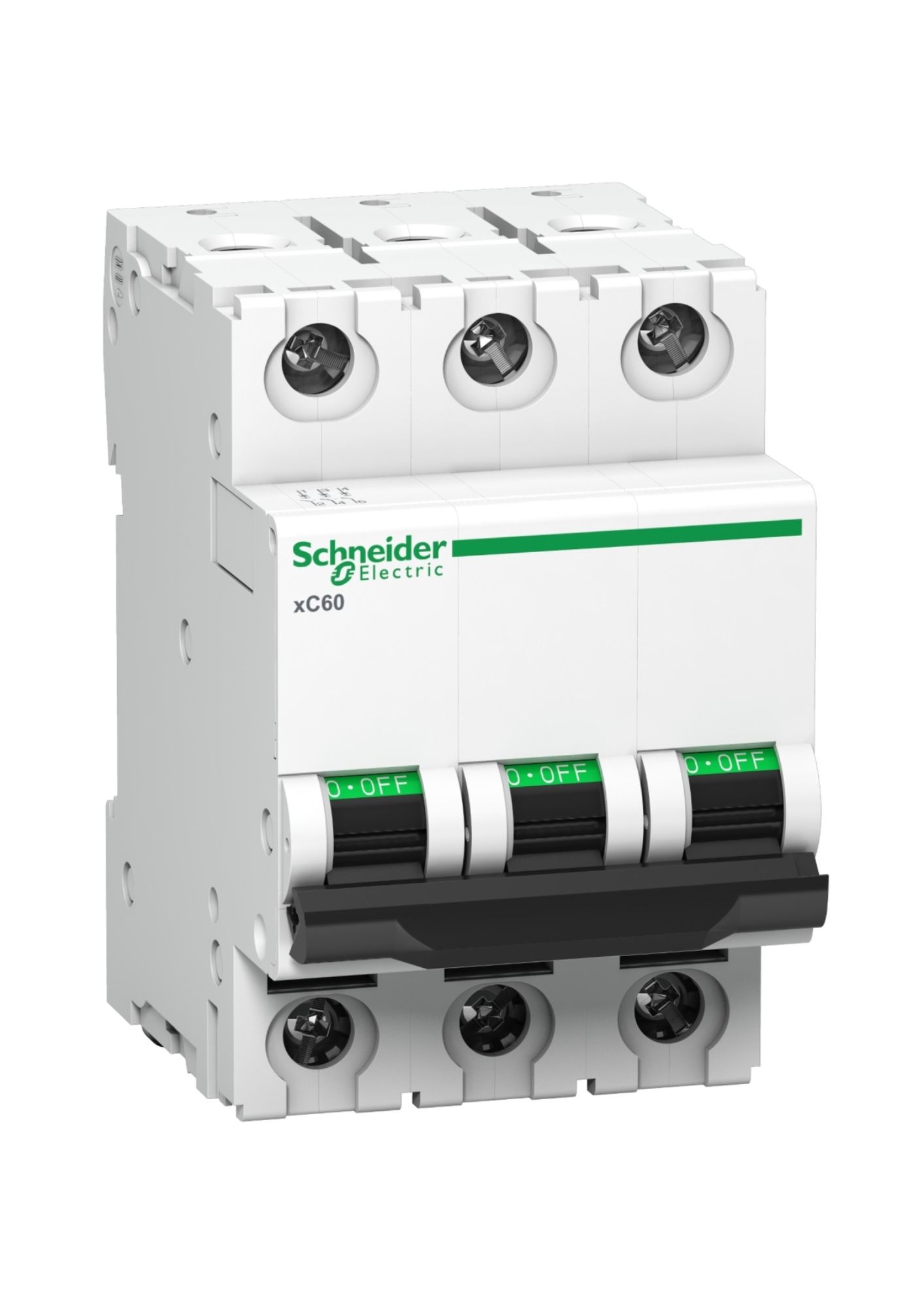

Schneider A9N3P25CGN, Miniature circuit breaker (MCB), 3 Pole, 25Amp, C Curve, 10kA
Schneider A9N3P25CGN, Miniature circuit breaker (MCB), 3 Pole, 25Amp, C Curve, 10kA

Schneider A9N3P25CGN, Miniature circuit breaker (MCB), 3 Pole, 25Amp, C Curve, 10kA

In stock
SKU
A9N3P25CGN
Special Price ₹640.71 Regular Price ₹2,373.00
(18% GST Extra)
Add to Wish List
  • 3P MCB with 25A rated current and D tripping curve
  • Protects against short circuit and overload; green strip ensures safe operation
  • Mechanical and electrical durability up to 20,000 cycles
  • Mountable on DIN rail or Vertical Fishbone Busbar; width: 6x9mm pitches
  • Operating voltage: 500VAC, frequency: 50/60Hz, IP20/IP40 protection, temperature -30°C to 70°C
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

MCB Specifications
Main
Device application Distribution
Range of product Acti9
Product name XC60
Product type Miniature circuit-breaker
Poles description 3P
Number of protected poles 3
Rated current [In] 25 A
Network type AC
Trip unit technology Thermal-magnetic
Curve code C
Complementary
Rated operational voltage [Ue] 220...240 V AC / 380...415 V AC
Magnetic tripping limit 5...10 x In
Breaking capacity 10000 A Icn at 240/415 V AC
Contact position indicator Yes
Control type Toggle
Local signalling ON/OFF indication
Mounting mode Clip-on, 35 mm DIN rail
Dimensions (HxWxD) 85 x 54 x 77.5 mm
Colour White
Mechanical durability 20000 cycles
Electrical durability 10000 cycles
Connections - terminals Tunnel type 16 mm² flexible / 25 mm² rigid
Wire stripping length 13 mm
Tightening torque 2 N.m
Earth-leakage protection Separate block
Product compatibility C60 accessories / auxiliary
Overvoltage category IV
