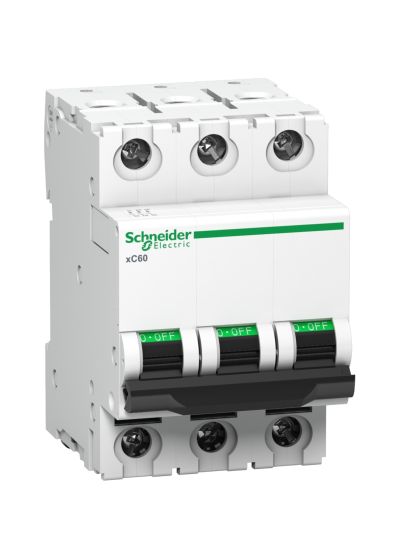

Schneider A9N3P63CGN, Miniature circuit breaker (MCB), 3 Pole, 63Amp, C Curve, 10kA
Schneider A9N3P63CGN, Miniature circuit breaker (MCB), 3 Pole, 63Amp, C Curve, 10kA

Schneider A9N3P63CGN, Miniature circuit breaker (MCB), 3 Pole, 63Amp, C Curve, 10kA

In stock
SKU
A9N3P63CGN
Special Price ₹1,007.91 Regular Price ₹3,733.00
(18% GST Extra)
Add to Wish List
  • 3P MCB with 63A rated current and D curve.
  • Breaking capacity up to 10kA at 380–415VAC.
  • Protects against short circuit and overload.
  • 20,000 mechanical & electrical cycles, 500VAC insulation.
  • IP20/IP40 protection, DIN rail mounting, -30°C to 70°C.
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

Main
Device applicationDistribution
Range of productActi9
RangeActi9
Product namexC60
Product or component typeMiniature circuit-breaker
Device short namexC60
Poles description3P
Number of protected poles3
[In] rated current63 A
Network typeAC
Trip unit technologyThermal-magnetic
Curve codeC
Complementary
Network frequency50/60 Hz
[Ue] rated operational voltage220...240 V AC / 380...415 V AC 50/60 Hz
Magnetic tripping limit5...10 x In
Breaking capacity10000 A Icn at 240/415 V AC 50/60 Hz (IS/IEC 60898-1)
Limitation class3 (IS/IEC 60898-1)
Contact position indicatorYes
Control typeToggle
Local signallingON/OFF indication
Mounting modeClip-on
Mounting support35 mm DIN rail
Comb busbar compatibilityTop: Yes
9 mm pitches6
Height85 mm
Width54 mm
Depth77.5 mm
ColourWhite
Mechanical durability20000 cycles
Electrical durability10000 cycles
Connections - terminalsBiconnect (bottom)
Terminal capacity25 mm² flexible / 35 mm² rigid
Wire stripping length13 mm
Tightening torque3.5 N.m
Earth-leakage protectionSeparate block
Product compatibilityC60 auxiliary, C60 accessories
Overvoltage categoryIV
