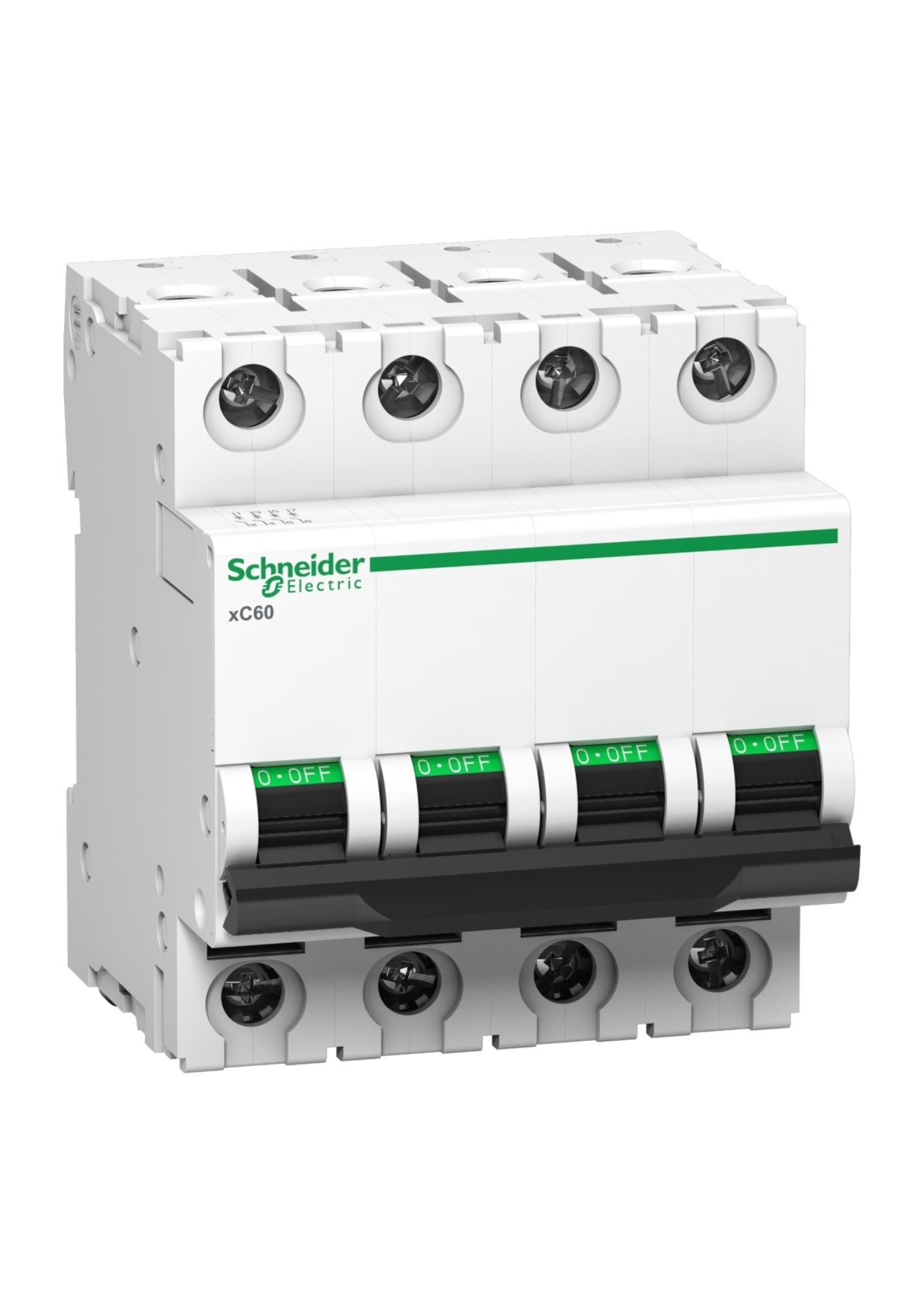

Schneider A9N4P06CGN, Miniature circuit breaker (MCB), 4 Pole, 6Amp, C Curve, 10kA
Schneider A9N4P06CGN, Miniature circuit breaker (MCB), 4 Pole, 6Amp, C Curve, 10kA

Schneider A9N4P06CGN, Miniature circuit breaker (MCB), 4 Pole, 6Amp, C Curve, 10kA

Be the first to review this product
In stock
SKU
A9N4P06CGN
Special Price ₹1,120.50 Regular Price ₹4,150.00
(18% GST Extra)
Add to Wish List
  • 4P circuit breaker, 6A rated current with C curve
  • Breaking capacity up to 10,000A at 380–415VAC (IS/IEC 60898-1)
  • Protects against short circuit & overload with safe contact opening
  • Durability: 20,000 mechanical & electrical cycles, DIN rail mountable
  • Protection: Ui 500VAC, IP20/IP40, -30°C to +70°C operating range
Schneider A9N4P06CGN, Miniature circuit breaker (MCB), 4 Pole, 6Amp, C Curve, 10kA is available to buy in increments of 1
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

Main
Device application Distribution
Range of product Acti9
Range Acti9
Product name XC60
Product type Miniature circuit-breaker
Device short name xC60
Poles description 4P
Number of protected poles 4
Rated current [In] 6 A
Network type AC
Trip unit technology Thermal-magnetic
Curve code C
Complementary
Network frequency 50/60 Hz
Rated operational voltage [Ue] 220–240 V AC 50/60 Hz
380–415 V AC 50/60 Hz
Magnetic tripping limit 5–10 x In
Breaking capacity 10000 A Icn at 240 V AC
10000 A Icn at 415 V AC
conforming to IS/IEC 60898-1
Limitation class 3 conforming to IS/IEC 60898-1
Contact position indicator Yes
Control type Toggle
Local signalling ON/OFF indication
Mounting mode Clip-on
Mounting support 35 mm DIN rail
Comb busbar and distribution block compatibility Top: YES
9 mm pitches: 8
Height 85 mm
Width 72 mm
Depth 77.5 mm
Colour White
Mechanical durability 20000 cycles
Electrical durability 20000 cycles
Connections - terminals Tunnel type terminals (bottom) 16 mm² flexible
Tunnel type terminals (bottom) 25 mm² rigid
Biconnect (bottom)
Wire stripping length: 13 mm
Tightening torque: 2 N.m
Earth-leakage protection Separate block
Product compatibility C60 accessories, C60 auxiliary
Overvoltage category IV
Product Variants

No specifications available for this product.

Reviews
Write Your Own Review
You're reviewing:Schneider A9N4P06CGN, Miniature circuit breaker (MCB), 4 Pole, 6Amp, C Curve, 10kA
Your Rating
Downloads
document A9N4P06CGN Datasheet (255.88 kB)
