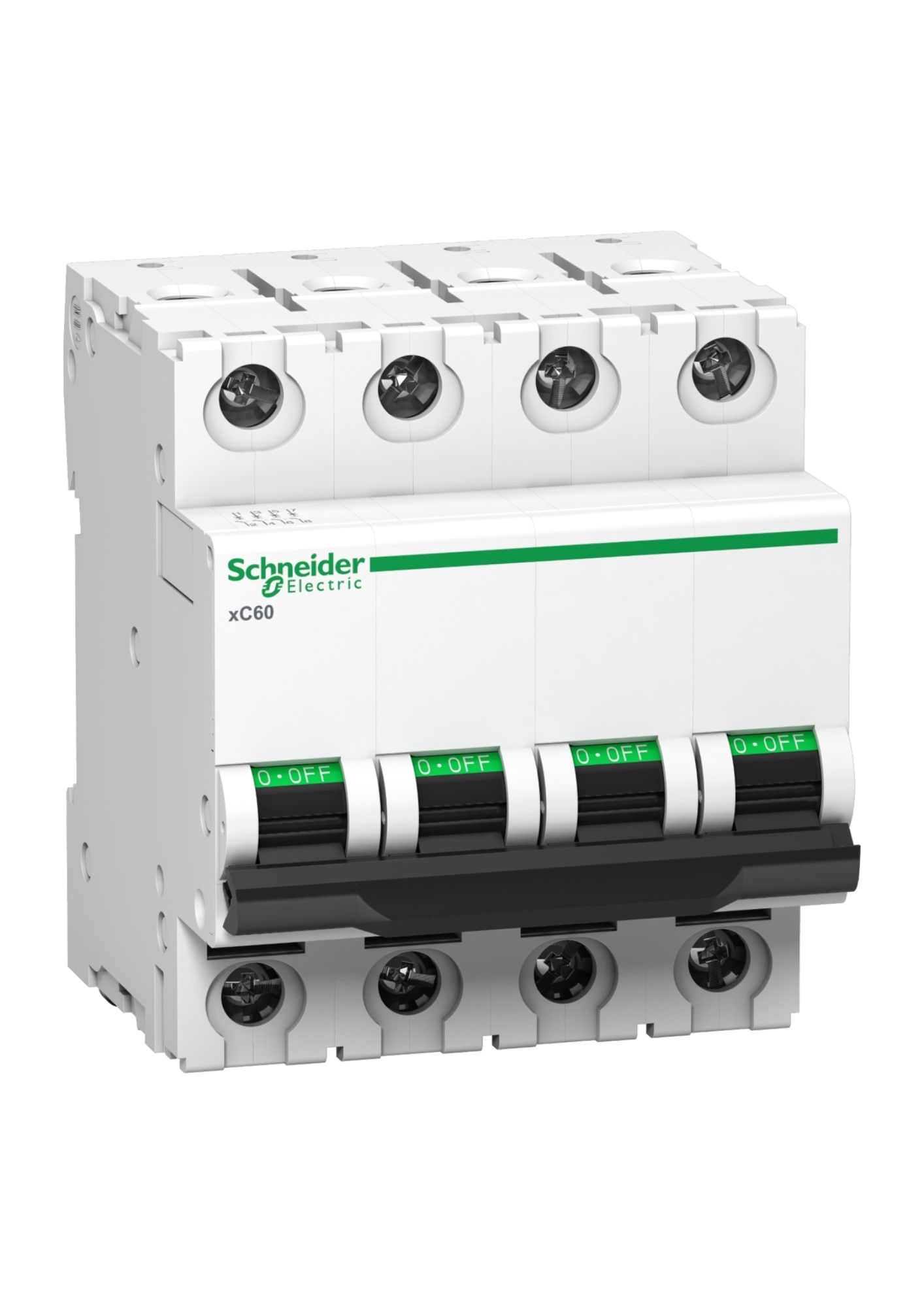

Schneider A9N4P10CGN, Miniature circuit breaker (MCB), 4 Pole, 10Amp, C Curve, 10kA
Schneider A9N4P10CGN, Miniature circuit breaker (MCB), 4 Pole, 10Amp, C Curve, 10kA

Schneider A9N4P10CGN, Miniature circuit breaker (MCB), 4 Pole, 10Amp, C Curve, 10kA

In stock
SKU
A9N4P10CGN
Special Price ₹863.19 Regular Price ₹3,197.00
(18% GST Extra)
Add to Wish List
  • 4P Acti9 xC60 MCB with 10A rated current and C tripping curve.
  • Protects against short circuit and overload; breaking capacity up to 10000A (380-415VAC).
  • Mechanical & electrical durability up to 20000 cycles; green strip ensures safe contact opening.
  • DIN rail mountable; Ui 500VAC; operating frequency 50/60Hz; 8 x 9mm width; pollution degree 3.
  • Operating temp -30°C to 70°C; storage temp -40°C to 85°C; color white (RAL9003); protection IP20/IP40.
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

Acti9 XC60 MCB Specs
Main
Device applicationDistribution
Range of productActi9
RangeActi9
Product nameXC60
Product or component typeMiniature circuit-breaker
Device short namexC60
Poles description4P
Number of protected poles4
Rated current [In]10 A
Network typeAC
Trip unit technologyThermal-magnetic
Curve codeC
Complementary
Network frequency50/60 Hz
Rated operational voltage [Ue]220...240 V AC / 380...415 V AC 50/60 Hz
Magnetic tripping limit5...10 x In
Breaking capacity10000 A Icn at 240/415 V AC
Limitation class3
Contact position indicatorYes
Control typeToggle
Local signallingON/OFF indication
Mounting modeClip-on
Mounting support35 mm DIN rail
Comb busbar compatibilityTop: YES, 9 mm pitches 8
Dimensions (H x W x D)85 x 72 x 77.5 mm
ColourWhite
Mechanical durability20000 cycles
Electrical durability20000 cycles
Connections - terminalsTunnel type terminals (bottom) 16 mm² flexible / 25 mm² rigid, Biconnect (bottom)
Wire stripping length13 mm
Tightening torque2 N.m
Earth-leakage protectionSeparate block
Product compatibilityC60 auxiliary, C60 accessories
Overvoltage categoryIV
