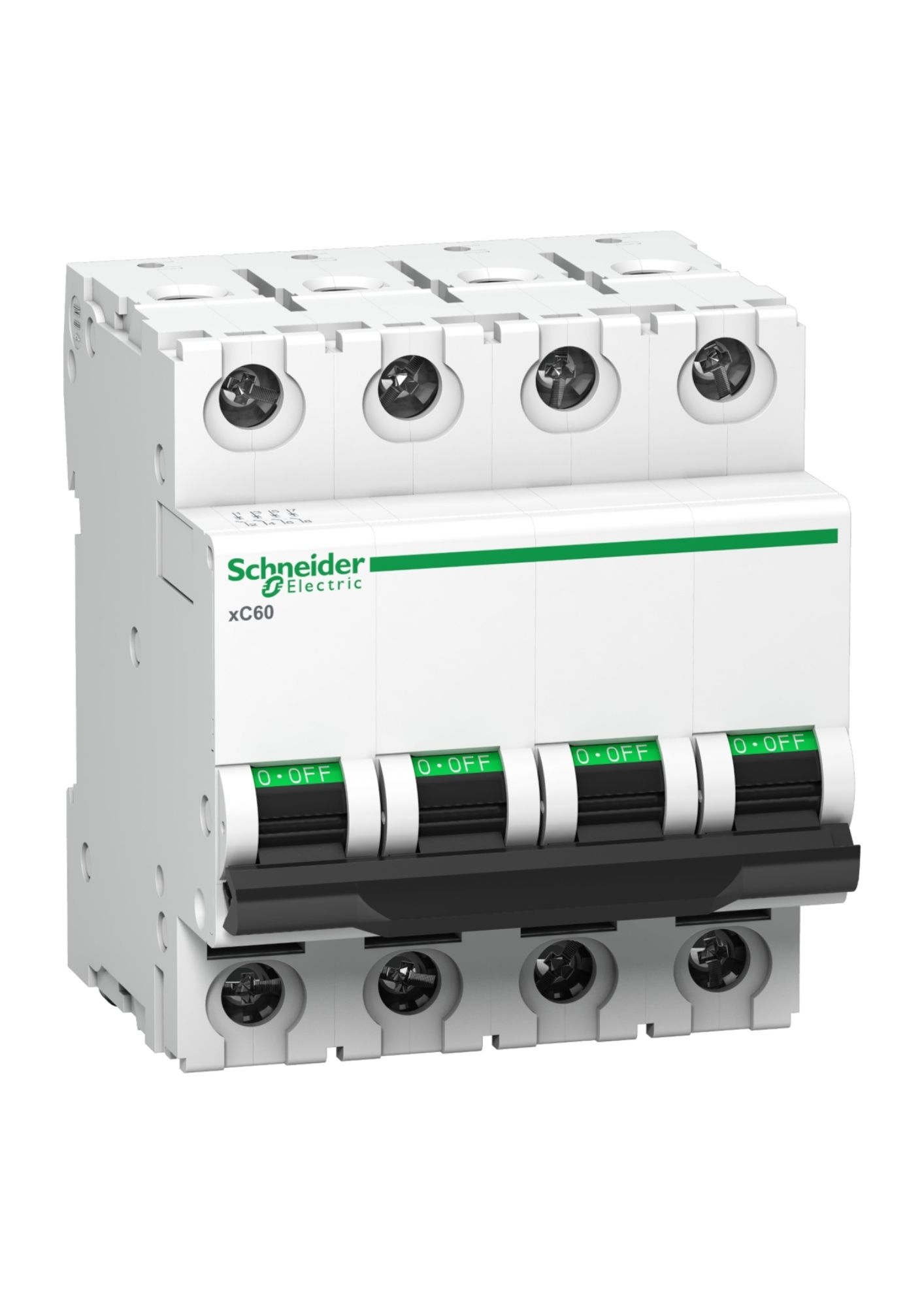

Schneider A9N4P20CGN, Miniature circuit breaker (MCB), 4 Pole, 20Amp, C Curve, 10kA
Schneider A9N4P20CGN, Miniature circuit breaker (MCB), 4 Pole, 20Amp, C Curve, 10kA

Schneider A9N4P20CGN, Miniature circuit breaker (MCB), 4 Pole, 20Amp, C Curve, 10kA

In stock
SKU
A9N4P20CGN
Special Price ₹863.19 Regular Price ₹3,197.00
(18% GST Extra)
Add to Wish List
  • 4P Acti9 xC60 MCB with 20A rated current and D tripping curve.
  • Protects against short circuits and overloads; green strip ensures safe operation.
  • Breaking capacity up to 10,000A at 380–415VAC, IS/IEC 60898-1 compliant.
  • Durability: 20,000 mechanical & electrical cycles; insulation voltage 500VAC.
  • DIN rail mountable; IP20/IP40; operating -30°C to 70°C, storage -40°C to 85°C.
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

Acti9 XC60 MCB Data
Main
Device applicationDistribution
Range of productActi9
RangeActi9
Product nameXC60
Product or component typeMiniature circuit-breaker
Device short namexC60
Poles description4P
Number of protected poles4
[In] rated current20 A
Network typeAC
Trip unit technologyThermal-magnetic
Curve codeC
Complementary
Network frequency50/60 Hz
[Ue] rated operational voltage220...240 V AC 50/60 Hz
380...415 V AC 50/60 Hz
Magnetic tripping limit5...10 x In
Breaking capacity10000 A Icn at 240 V AC 50/60 Hz conforming to IS/IEC 60898-1
10000 A Icn at 415 V AC 50/60 Hz conforming to IS/IEC 60898-1
Limitation class3 conforming to IS/IEC 60898-1
Contact position indicatorYes
Control typeToggle
Local signallingON/OFF indication
Mounting modeClip-on
Mounting support35 mm DIN rail
Comb busbar & distribution block compatibilityTop: YES, 9 mm pitches 8
Height85 mm
Width72 mm
Depth77.5 mm
ColourWhite
Mechanical durability20000 cycles
Electrical durability20000 cycles
Connections - terminalsTunnel type terminals (bottom) 16 mm² flexible
Tunnel type terminals (bottom) 25 mm² rigid
Biconnect (bottom)
Wire stripping length13 mm for top or bottom connection
Tightening torque2 N.m
Earth-leakage protectionSeparate block
Product compatibilityC60 accessories, C60 auxiliary
Overvoltage categoryIV
