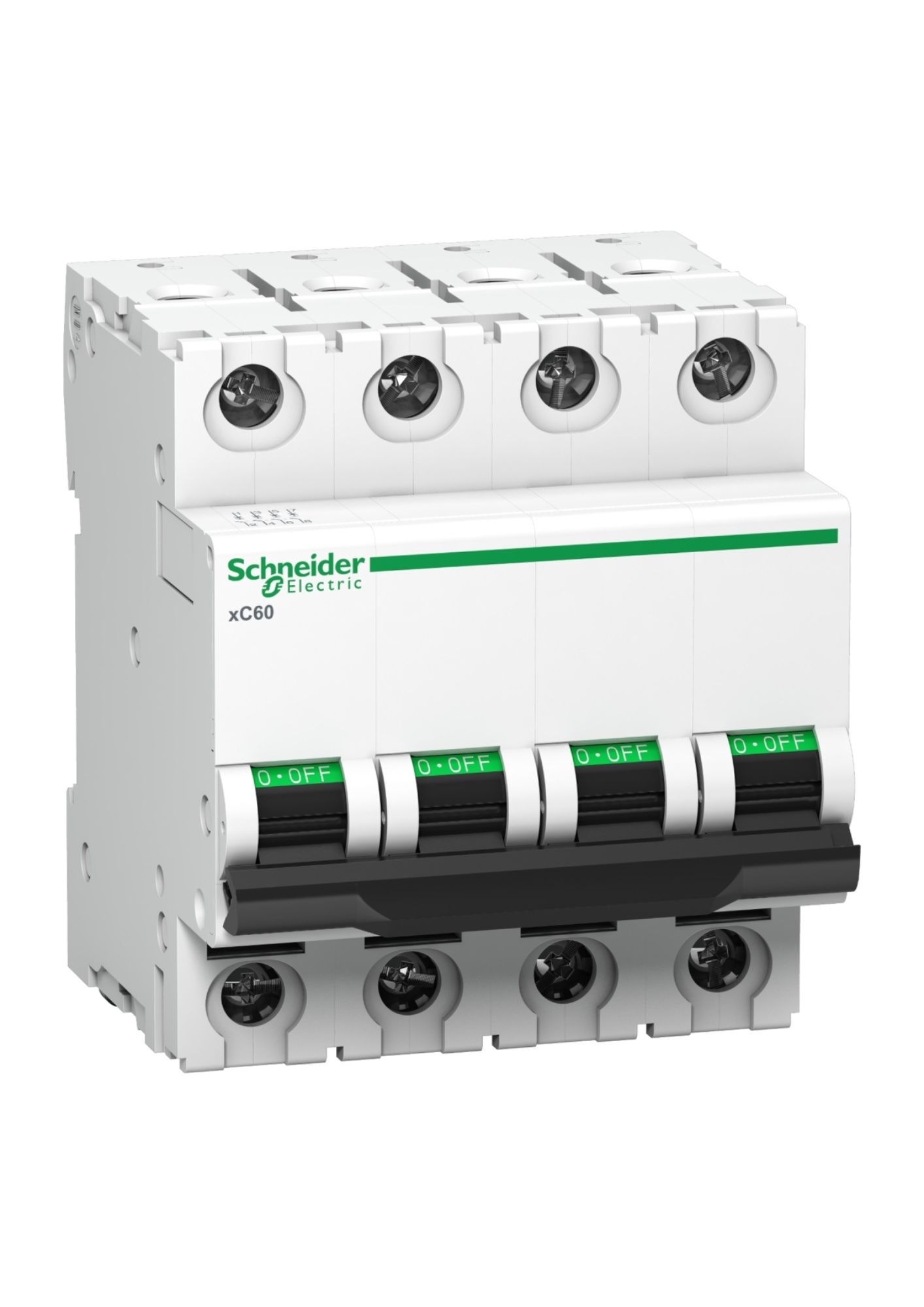

Schneider A9N4P32CGN, Miniature circuit breaker (MCB), 4 Pole, 32Amp, C Curve, 10kA
Schneider A9N4P32CGN, Miniature circuit breaker (MCB), 4 Pole, 32Amp, C Curve, 10kA

Schneider A9N4P32CGN, Miniature circuit breaker (MCB), 4 Pole, 32Amp, C Curve, 10kA

In stock
SKU
A9N4P32CGN
Special Price ₹863.19 Regular Price ₹3,197.00
(18% GST Extra)
Add to Wish List
  • 4P miniature circuit breaker with 32A rated current and D tripping curve.
  • Protects against short circuit and overload; green strip ensures safe contact opening.
  • Mechanical and electrical durability up to 20,000 cycles; insulation voltage 500VAC.
  • Mountable on DIN rail, width 8 pitches (9mm), operates at 50Hz/60Hz.
  • Operating temperature -30°C to 70°C, storage -40°C to 85°C; IP20/IP40 protection.
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

Main
Device application Distribution
Range of product Acti9
Range Acti9
Product name XC60
Product type Miniature circuit-breaker
Device short name xC60
Poles description 4P
Number of protected poles 4
Rated current [In] 32 A
Network type AC
Trip unit technology Thermal-magnetic
Curve code C
Complementary
Network frequency 50/60 Hz
Rated operational voltage [Ue] 220–240 V AC 50/60 Hz
380–415 V AC 50/60 Hz
Magnetic tripping limit 5...10 × In
Breaking capacity 10000 A at 240 V AC / 415 V AC (IS/IEC 60898-1)
Limitation class 3 (IS/IEC 60898-1)
Contact position indicator Yes
Control type Toggle
Local signalling ON/OFF indication
Mounting mode Clip-on, 35 mm DIN rail
Comb busbar / distribution block Top: YES, 9 mm pitches: 8
Height 85 mm
Width 72 mm
Depth 77.5 mm
Colour White
Mechanical durability 20,000 cycles
Electrical durability 10,000 cycles
Connections - terminals Biconnect (bottom)
Tunnel type terminals 25 mm² flexible
Tunnel type terminals 35 mm² rigid
Wire stripping length: 13 mm
Tightening torque: 3.5 N·m
Earth-leakage protection Separate block
Product compatibility C60 auxiliary / C60 accessories
Overvoltage category IV
