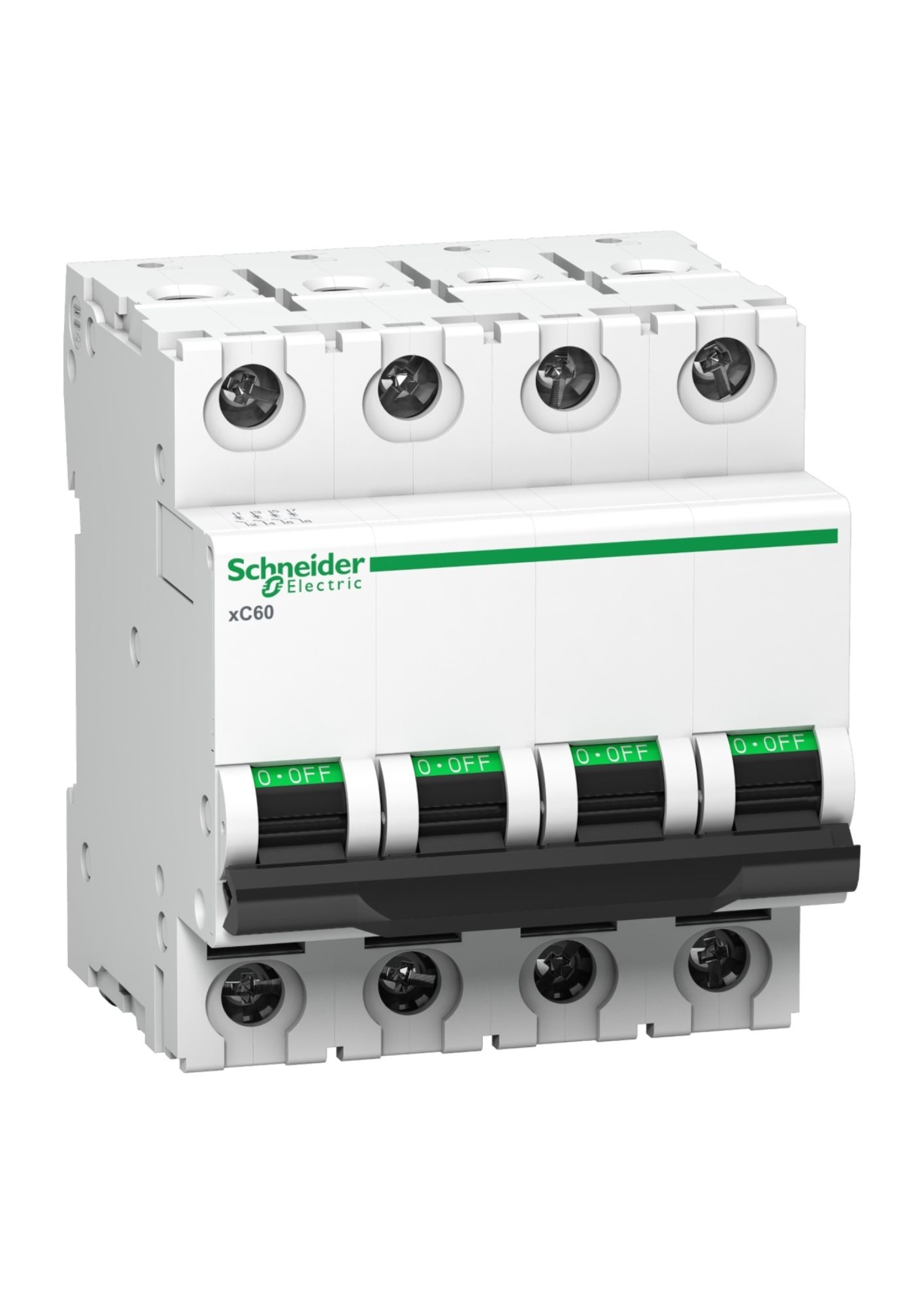

Schneider A9N4P63CGN, Miniature circuit breaker (MCB), 4 Pole, 63Amp, C Curve, 10kA
Schneider A9N4P63CGN, Miniature circuit breaker (MCB), 4 Pole, 63Amp, C Curve, 10kA

Schneider A9N4P63CGN, Miniature circuit breaker (MCB), 4 Pole, 63Amp, C Curve, 10kA

In stock
SKU
A9N4P63CGN
Special Price ₹1,305.99 Regular Price ₹4,837.00
(18% GST Extra)
Add to Wish List
  • 4P MCB with 63A rated current and D tripping curve.
  • Protects against short circuit and overload; green strip ensures safe operation.
  • Breaking capacity up to 10,000A at 380-415VAC (IS/IEC 60898-1 compliant).
  • Durability: 20,000 mechanical & electrical cycles; insulation voltage 500VAC; 50/60Hz.
  • DIN rail mountable; 8-pitch width; IP20/IP40 protection; operating temp -30°C to 70°C.
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

Acti9 XC60 MCB Data
Main
Device application Distribution
Range of product Acti9
Range Acti9
Product name XC60
Product or component type Miniature circuit-breaker
Device short name xC60
Poles description 4P
Number of protected poles 4
[In] rated current 63 A
Network type AC
Trip unit technology Thermal-magnetic
Curve code C
Complementary
Network frequency 50/60 Hz
[Ue] rated operational voltage 220...240 V AC 50/60 Hz
380...415 V AC 50/60 Hz
Magnetic tripping limit 5...10 x In
Breaking capacity 10000 A Icn at 240 V AC 50/60 Hz
10000 A Icn at 415 V AC 50/60 Hz
Limitation class 3
Contact position indicator Yes
Control type Toggle
Local signalling ON/OFF indication
Mounting mode Clip-on
Mounting support 35 mm DIN rail
Comb busbar and distribution block compatibility Top: YES, 9 mm pitches: 8
Height 85 mm
Width 72 mm
Depth 77.5 mm
Colour White
Mechanical durability 20000 cycles
Electrical durability 10000 cycles
Connections - terminals Biconnect (bottom)
Tunnel type terminals (bottom) 25 mm² flexible
Tunnel type terminals (bottom) 35 mm² rigid
Wire stripping length 13 mm for top or bottom connection
Tightening torque 3.5 N.m
Earth-leakage protection Separate block
Product compatibility C60 auxiliary, C60 accessories
Overvoltage category IV
