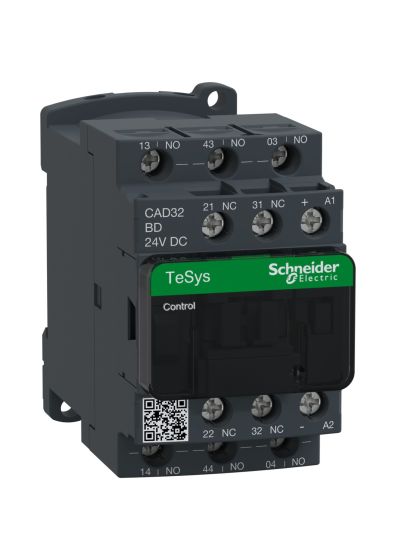

Schneider CAD32BD, TeSys D control relay - 3 NO + 2 NC, 690 V - 24 V DC standard coil
Schneider CAD32BD, TeSys D control relay - 3 NO + 2 NC, 690 V - 24 V DC standard coil Schneider CAD32BD, TeSys D control relay - 3 NO + 2 NC, 690 V - 24 V DC standard coil Schneider CAD32BD, TeSys D control relay - 3 NO + 2 NC, 690 V - 24 V DC standard coil

Schneider CAD32BD, TeSys D control relay - 3 NO + 2 NC, 690 V - 24 V DC standard coil

Be the first to review this product
In stock
SKU
CAD32BD
Special Price ₹1,984.00 Regular Price ₹4,960.00
(18% GST Extra)
Add to Wish List
  • Same design as TeSys D, K and SK contactors
  • Different ways for connection. (such as screw clamp terminal, spring terminal, welded on PCB)
  • TeSys D control relay, 5 contacts (3NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13
  • Provides a 24V DC control circuit with no inrush consumption and equipped with a surge suppression device
  • It procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw
Schneider CAD32BD, TeSys D control relay - 3 NO + 2 NC, 690 V - 24 V DC standard coil is available to buy in increments of 1
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • Range:
    • TeSys
    • TeSys Deca
  • Product name:
    • TeSys CAD
  • Product or component type:
    • Control relay
  • Device short name:
    • CAD
  • Contactor application:
    • Control circuit
  • Utilisation category:
    • DC-13
    • AC-15
    • AC-14
  • Pole contact composition:
    • 3 NO + 2 NC
  • [Ue] rated operational voltage:
    • ≤ 690 V AC 25...400 Hz
  • Control circuit type:
    • DC standard
  • [Uc] control circuit voltage:
    • 24 V DC
  • [Uimp] rated impulse withstand voltage:
    • 6 kV conforming to IEC 60947
  • [Ith] conventional free air thermal current:
    • 10 A (at 60 °C)
  • Irms rated making capacity:
    • 140 A AC conforming to IEC 60947-5-1
    • 250 A DC conforming to IEC 60947-5-1
  • [Icw] rated short-time withstand current:
    • 100 A - 1 s
    • 120 A - 500 ms
    • 140 A - 100 ms
  • Associated fuse rating:
    • 10 A gG conforming to IEC 60947-5-1
  • [Ui] rated insulation voltage:
    • 600 V UL certified
    • 600 V CSA certified
    • 690 V conforming to IEC 60947-5-1
  • Mounting support:
    • Rail
    • Plate
  • Connections - terminals:
    • Screw clamp terminals 1 cable(s) 1…4 mm² flexible without cable end
    • Screw clamp terminals 2 cable(s) 1…4 mm² flexible without cable end
    • Screw clamp terminals 1 cable(s) 1…4 mm² flexible with cable end
    • Screw clamp terminals 2 cable(s) 1…2.5 mm² flexible with cable end
    • Screw clamp terminals 1 cable(s) 1…4 mm² solid without cable end
    • Screw clamp terminals 2 cable(s) 1…4 mm² solid without cable end
  • Tightening torque:
    • 1.7 N.m - with screwdriver Philips No 2
    • 1.7 N.m - with screwdriver flat Ø 6 mm
    • 1.7 N.m - with screwdriver pozidriv No 2
  • Control circuit voltage limits:
    • 0.1...0.25 Uc (-40…70 °C): drop-out DC
    • 0.7...1.25 Uc (-40…60 °C): operational DC
    • 1...1.25 Uc (60…70 °C): operational DC
Product Variants

No specifications available for this product.

Reviews
Write Your Own Review
You're reviewing:Schneider CAD32BD, TeSys D control relay - 3 NO + 2 NC, 690 V - 24 V DC standard coil
Your Rating
Downloads
document CAD32BD-Datasheet (287.97 kB)
document CAD32BD-Instruction Manual (613.17 kB)
