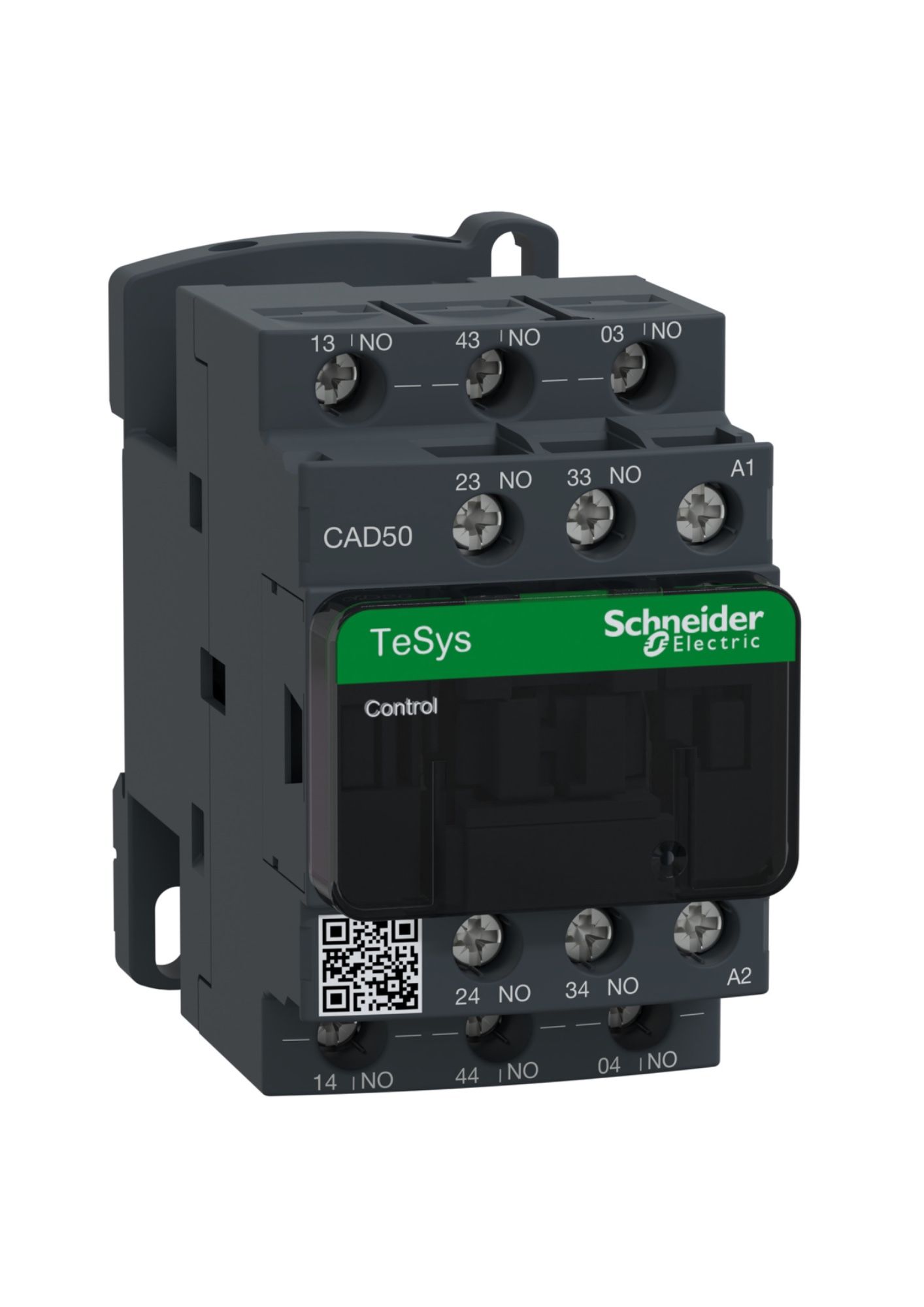

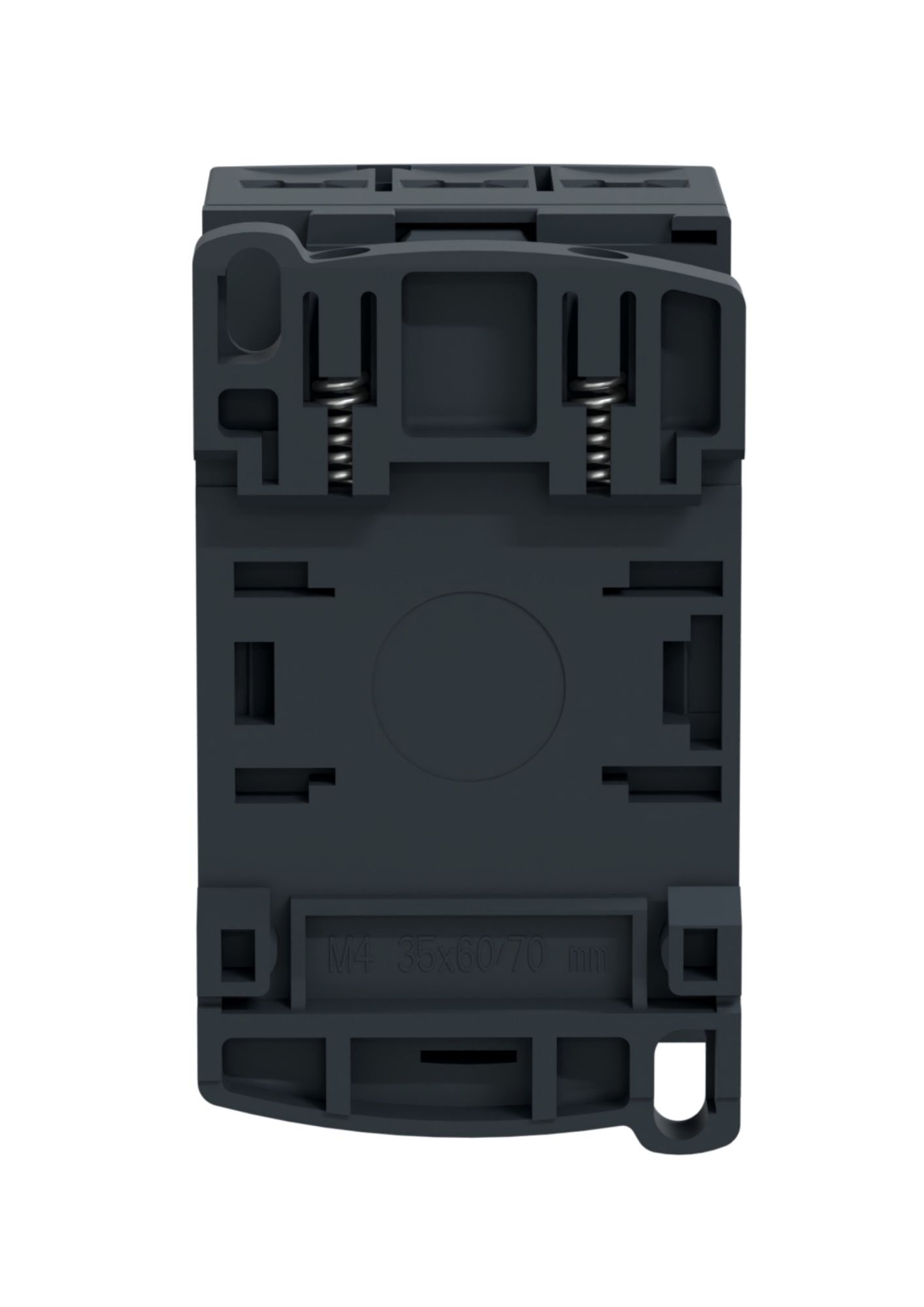

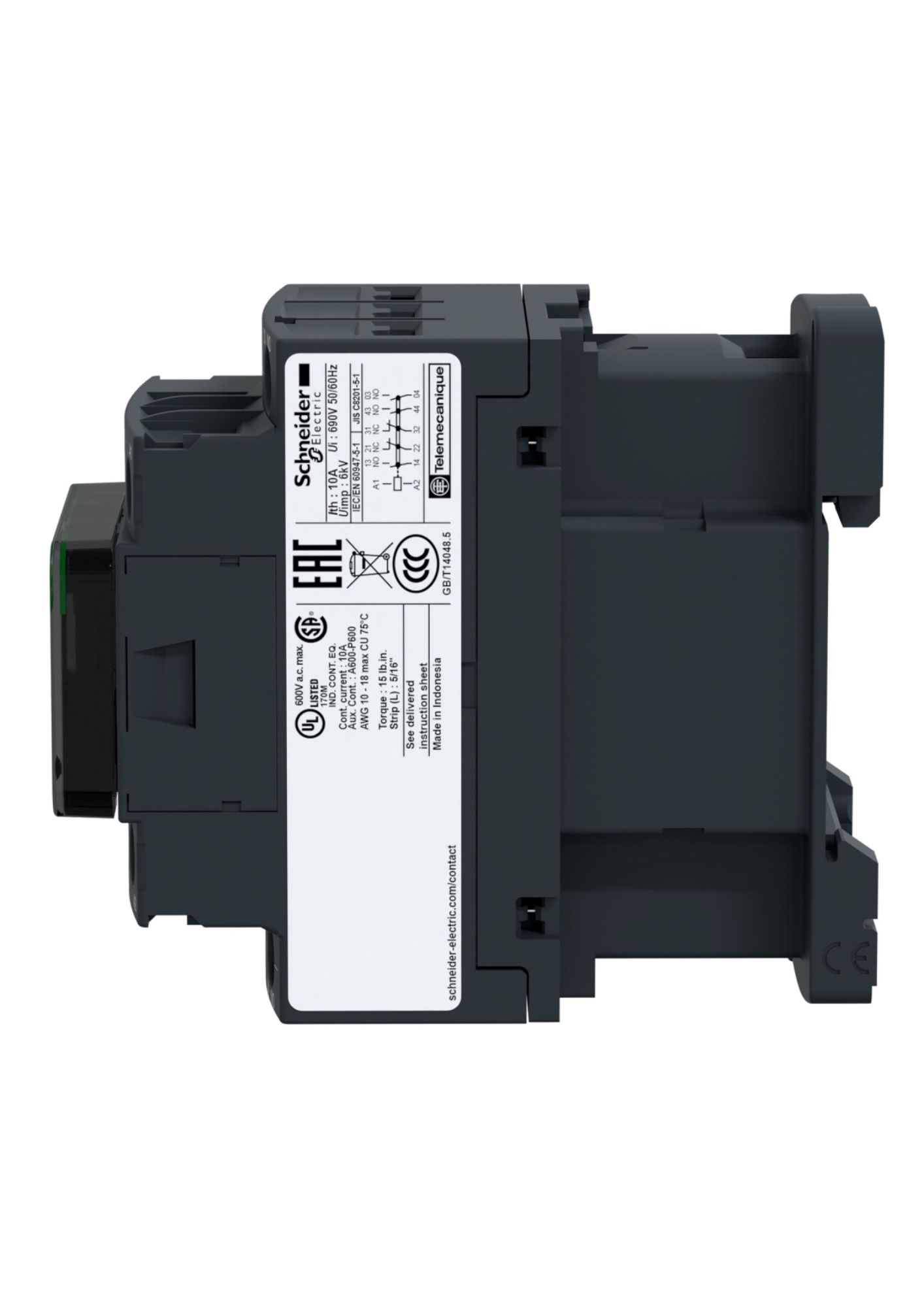

Schneider CAD50M7, TeSys D control relay - 5 NO - <= 690V, 220V AC standard coil
In stock
SKU
CAD50M7
Special Price
₹994.00
Regular Price
₹2,485.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
- Range
- TeSys
- TeSys Deca
- Product name
- TeSys CAD
- Product or component type
- Control relay
- Device short name
- CAD
- Contactor application
- Control circuit
- Utilisation category
- AC-15
- AC-14
- DC-13
- Pole contact composition
- 5 NO
- [Ue] rated operational voltage
- ≤ 690 V AC 25...400 Hz
- Control circuit type
- AC at 50/60 Hz
- [Uc] control circuit voltage
- 220 V AC 50/60 Hz
- [Uimp] rated impulse withstand voltage
- 6 kV conforming to IEC 60947
- [Ith] conventional free air thermal current
- 10 A (at 60 °C)
- Irms rated making capacity
- 140 A AC conforming to IEC 60947-5-1
- 250 A DC conforming to IEC 60947-5-1
- [Icw] rated short-time withstand current
- 100 A - 1 s
- 120 A - 500 ms
- 140 A - 100 ms
- Associated fuse rating
- 10 A gG conforming to IEC 60947-5-1
- [Ui] rated insulation voltage
- 600 V UL certified
- 600 V CSA certified
- 690 V conforming to IEC 60947-5-1
- Mounting support
- Plate
- Rail
- Connections - terminals
- Screw clamp terminals 1 cable(s) 1…4 mm² flexible without cable end
- Screw clamp terminals 2 cable(s) 1…4 mm² flexible without cable end
- Screw clamp terminals 1 cable(s) 1…4 mm² flexible with cable end
- Screw clamp terminals 2 cable(s) 1…2.5 mm² flexible with cable end
- Screw clamp terminals 1 cable(s) 1…4 mm² solid without cable end
- Screw clamp terminals 2 cable(s) 1…4 mm² solid without cable end
- Tightening torque
- 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2
- 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
- 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2
- Control circuit voltage limits
- 0.3...0.6 Uc (-40…70 °C): drop-out AC 50/60 Hz
- 0.8...1.1 Uc (-40…60 °C): operational AC 50 Hz
- 0.85...1.1 Uc (-40…60 °C): operational AC 60 Hz
- 1...1.1 Uc (60…70 °C): operational AC 50/60 Hz
- Operating time
- 12...22 ms coil energisation and NO closing
- 4...12 ms coil de-energisation and NO opening
- Mechanical durability
- 30 Mcycles
- Maximum operating rate
- 180 cyc/mn
- Inrush power in VA
- 70 VA 50 Hz (at 20 °C)
- Hold-in power consumption in VA
- 8 VA 50 Hz (at 20 °C)
- Minimum switching voltage
- 17 V
- Minimum switching current
- 5 mA
- Non-overlap time
- 1.5 ms on energisation between NC and NO contact
- 1.5 ms on de-energisation between NC and NO contact
- Insulation resistance
- > 10 MΩ
- Mechanical robustness
- Shocks control relay open: 10 Gn for 11 ms conforming to IEC 60068-2-27
- Shocks control relay closed: 15 Gn for 11 ms conforming to IEC 60068-2-27
- Vibrations control relay open: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6
- Vibrations control relay closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6
- Height
- 77 mm
- Width
- 45 mm
- Depth
- 84 mm
- Net weight
- 0.58 kg
