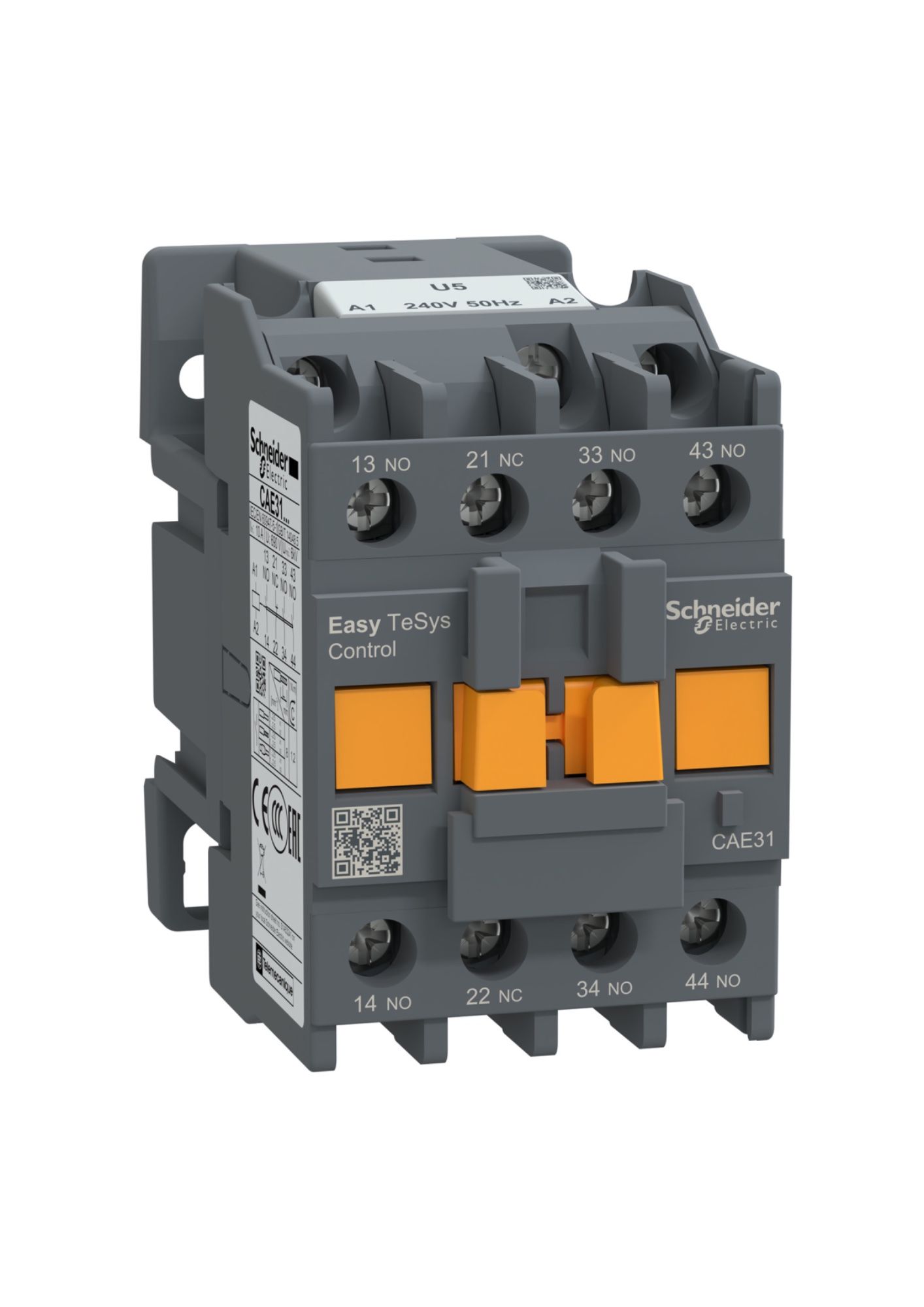

Schneider CAE31U5, Easy TeSys control relay - 3 NO + 1 NC <= 690 V - 240 VAC
In stock
SKU
CAE31U5
Special Price
₹976.60
Regular Price
₹2,570.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Main | |
|---|---|
| Range | Easy TeSys |
| Range of product | Easy TeSys Control Relay |
| Product or component type | Control relay |
| Device short name | CAE |
| Contactor application | Control circuit |
| Colour | Grey (RAL 7011) |
| Complementary | |
| Utilisation category | AC-14, AC-15 |
| Pole contact composition | 3 NO + 1 NC |
| Rated operational voltage (Ue) | ≤ 690 V AC |
| Control circuit type | AC at 50 Hz |
| Control circuit voltage (Uc) | 240 V AC 50 Hz |
| Rated impulse withstand voltage (Uimp) | 6 kV (IEC 60947) |
| Thermal current (Ith) | 10 A at 40 °C |
| Rated making capacity (Irms) | 140 A at 690 V AC |
| Short-time withstand current (Icw) | 120 A (500 ms), 140 A (100 ms) |
| Associated fuse rating | 10 A gG at 690 V |
| Rated insulation voltage (Ui) | 690 V |

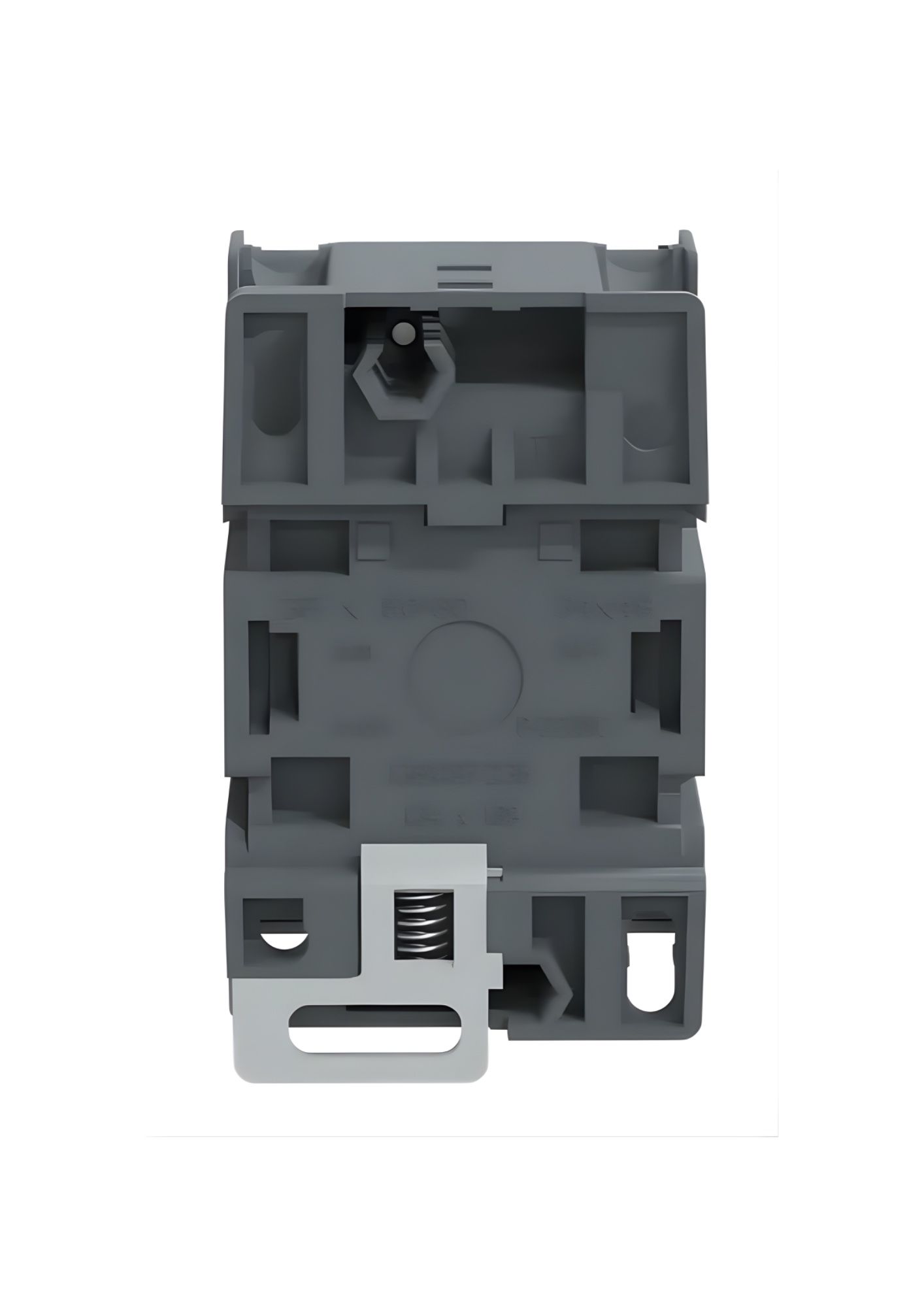

| Mounting support | Plate / Rail |
| Connections | Screw clamp terminals, 1–2.5 mm² |
| Tightening torque | 1.2 N·m (Philips No.2) |
| Mechanical durability | 10 million cycles |
| Maximum operating rate | 180 cycles/min |

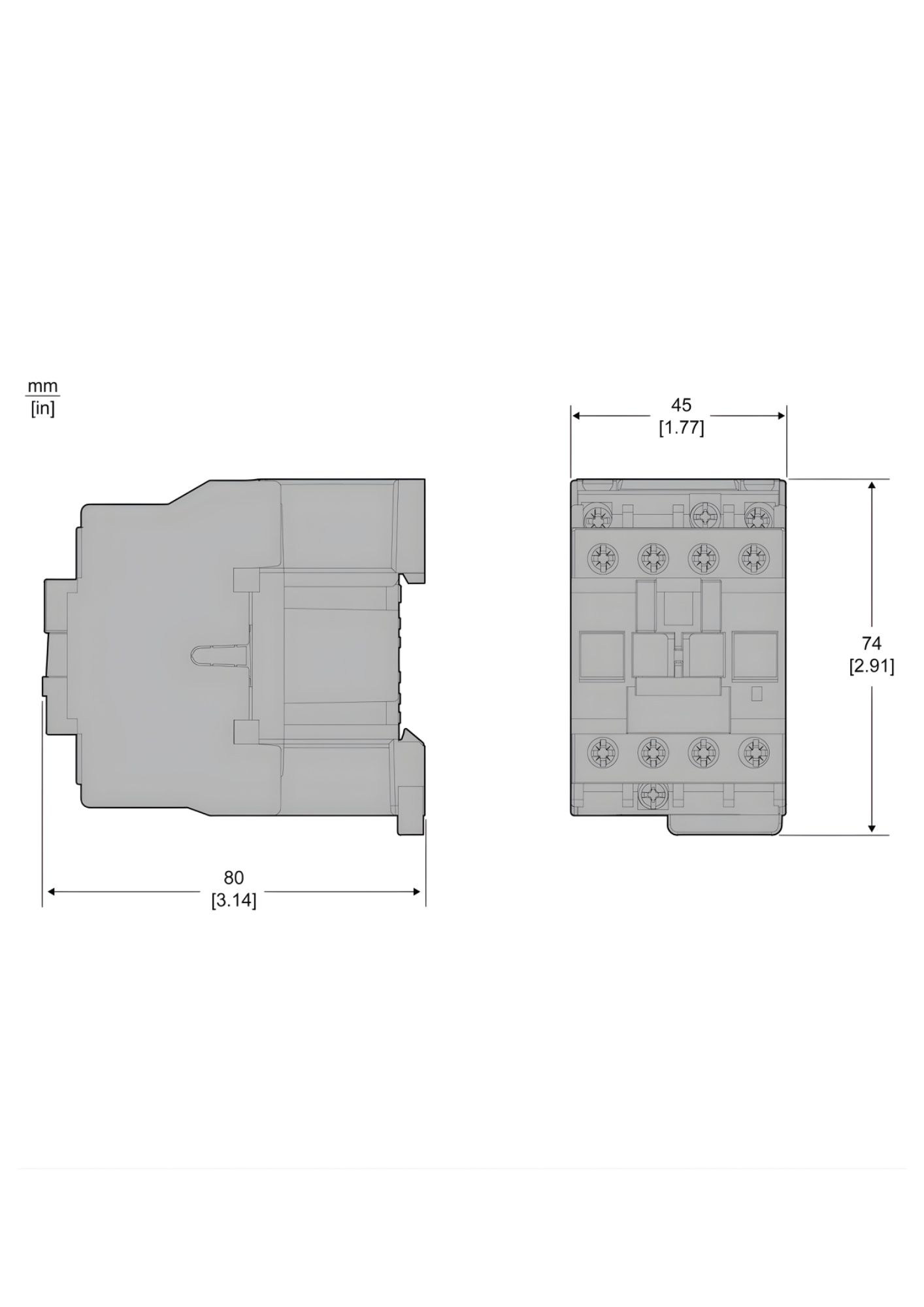

| Dimensions (H × W × D) | 74 × 45 × 80 mm |
