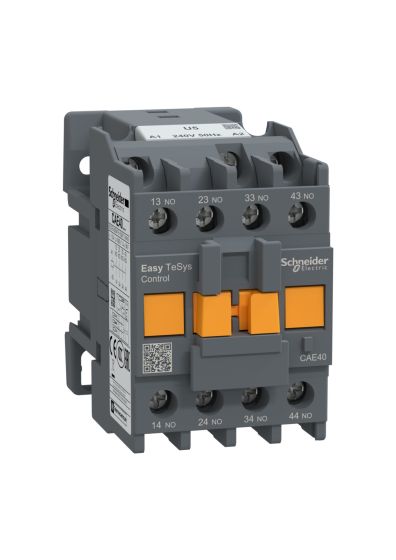

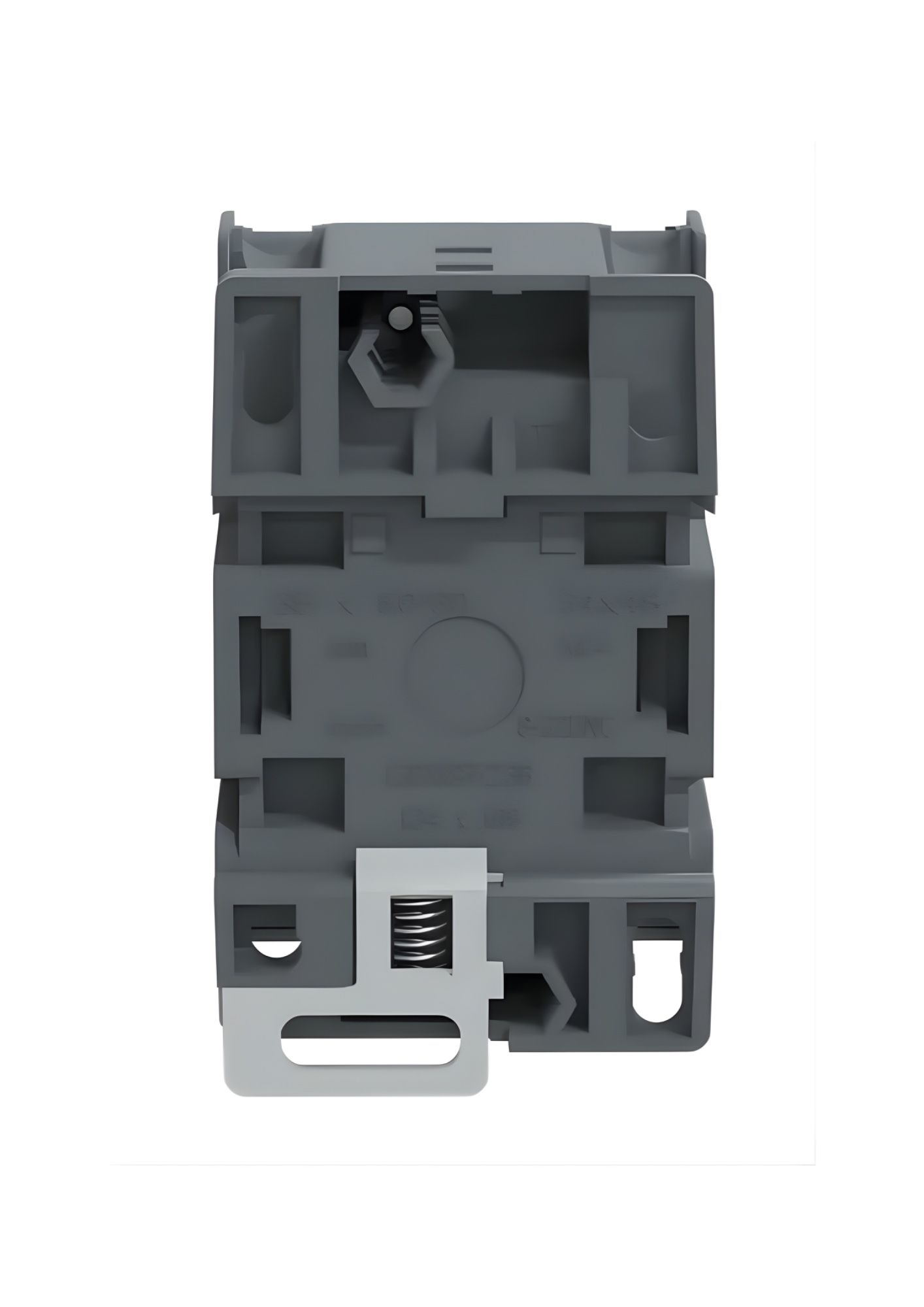

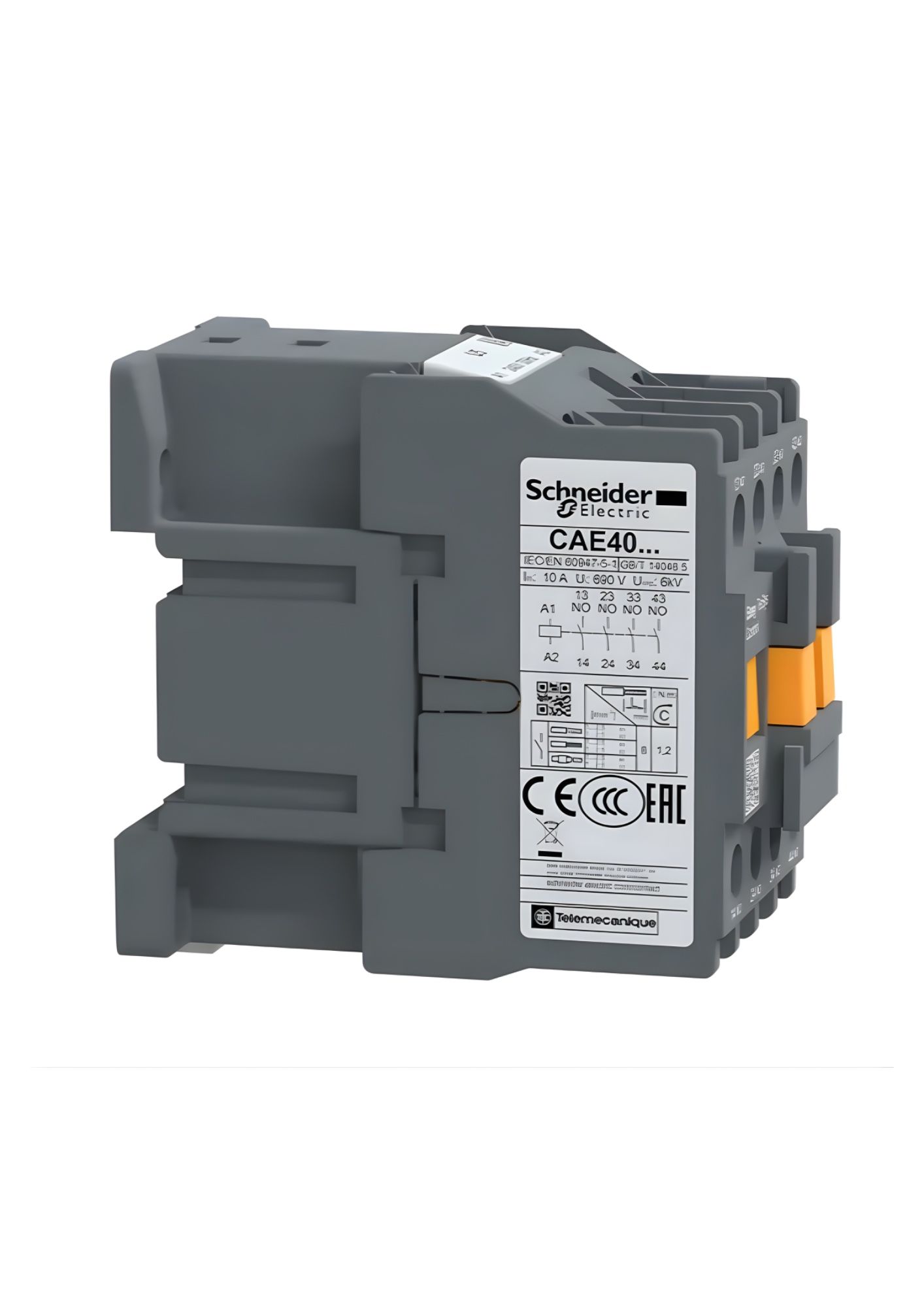

Schneider CAE40U5, Easy TeSys control relay - 4 NO <= 690 V - 240 VAC
In stock
SKU
CAE40U5
Special Price
₹976.60
Regular Price
₹2,570.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Main | |
|---|---|
| Range | Easy TeSys |
| Range of product | Easy TeSys Control Relay |
| Product or component type | Control relay |
| Device short name | CAE |
| Contactor application | Control circuit |
| Colour | Grey (RAL 7011) |
| Complementary | |
| Utilisation category | AC-14, AC-15 |
| Pole contact composition | 4 NO |
| [Ue] rated operational voltage | <= 690 V AC |
| Control circuit type | AC at 50 Hz |
| [Uc] control circuit voltage | 240 V AC 50 Hz |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947 |
| [Ith] conventional free air thermal current | 10 A (at 40 °C) |
| Irms rated making capacity | 140 A at 690 V AC conforming to IEC 60947-5-1 |
| [Icw] rated short-time withstand current |
120 A - 500 ms 140 A - 100 ms |
| Associated fuse rating | 10 A gG at 690 V conforming to IEC 60947-5-1 |
| [Ui] rated insulation voltage | 690 V conforming to IEC 60947-5-1 |
| Mounting support | Plate, Rail |
| Connections - terminals |
Screw clamp terminals 1 1…2.5 mm² - cable stiffness: flexible without cable end Screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible without cable end Screw clamp terminals 1 1…2.5 mm² - cable stiffness: flexible with cable end Screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end Screw clamp terminals 1 1…2.5 mm² - cable stiffness: solid without cable end Screw clamp terminals 2 1…2.5 mm² - cable stiffness: solid without cable end |
| Recommended tightening torque | 1.2 N.m - on screw clamp terminals - with screwdriver Philips No 2 |
| Control circuit voltage limits |
Operational: 0.85...1.1 Uc at 50 Hz Drop-out: 0.3...0.6 Uc |
| Operating time |
12...22 ms coil energisation and NO closing 6...17 ms coil de-energisation and NO closing |
| Mechanical durability | 10 Mcycles |
| Maximum operating rate | 180 cyc/mn |
| Inrush power in VA | 70 VA 50 Hz (at 20 °C) |
| Hold-in power consumption in VA | 8 VA 50 Hz (at 20 °C) |
| Minimum switching voltage | 17 V |
| Minimum switching current | 5 mA |
| Insulation resistance | > 10 MOhm |
| Mechanical robustness |
Shocks control relay open: 7 Gn for 11 ms Shocks control relay closed: 10 Gn for 11 ms Vibrations control relay open: 1.5 Gn, 5...300 Hz Vibrations control relay closed: 3 Gn, 5...300 Hz |

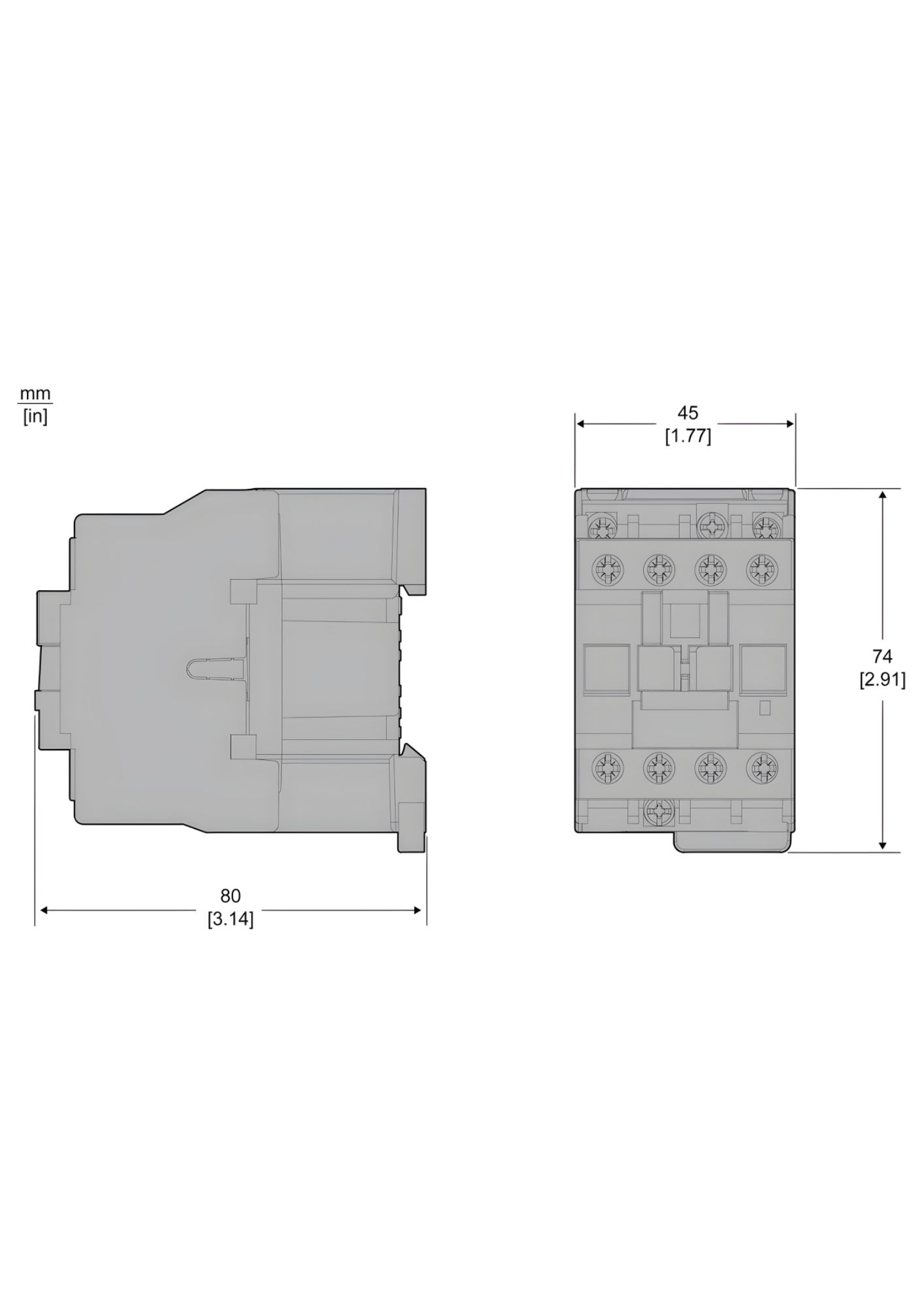

| Height | 74 mm |
| Width | 45 mm |
| Depth | 80 mm |
