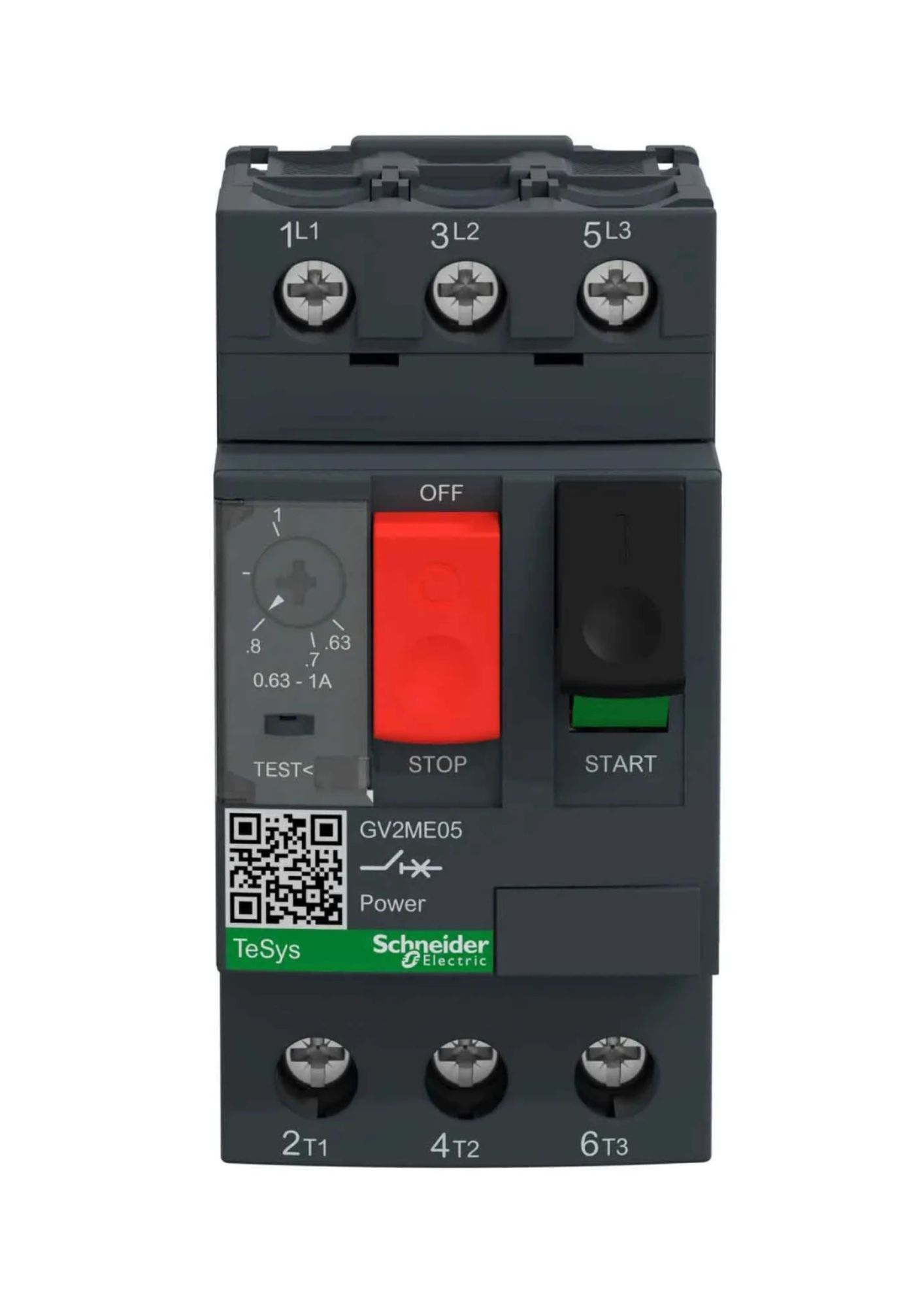

Schneider GV2ME05, Motor Protection Circuit Breaker (MPCB), TeSys GV2, 3P, 0.63-1 A, thermal magnetic, spring terminals
Schneider GV2ME05, Motor Protection Circuit Breaker (MPCB), TeSys GV2, 3P, 0.63-1 A, thermal magnetic, spring terminals Schneider GV2ME05, Motor Protection Circuit Breaker (MPCB), TeSys GV2, 3P, 0.63-1 A, thermal magnetic, spring terminals Schneider GV2ME05, Motor Protection Circuit Breaker (MPCB), TeSys GV2, 3P, 0.63-1 A, thermal magnetic, spring terminals

Schneider GV2ME05, Motor Protection Circuit Breaker (MPCB), TeSys GV2, 3P, 0.63-1 A, thermal magnetic, spring terminals

In stock
SKU
GV2ME05
Special Price ₹2,682.00 Regular Price ₹6,705.00
(18% GST Extra)
Add to Wish List
  • TeSys GV motor circuit breaker, 3 poles (3P), 1A/690V, for 3-phase motors up to 0.25kW at 400V
  • Thermal-magnetic protection with setting range 0.63–1A, magnetic tripping at 13xIn
  • High breaking capacity of 100kA (Icu) at 400V
  • Screw clamp terminals with push-button start/stop control (100,000 cycles AC-3)
  • Certified by IEC, UL, CSA, CCC, EAC, Marine, ATEX and Green Premium compliant (RoHS/REACh)
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

TeSys GV2ME Datasheet
Main
RangeTeSys Deca
Product nameTeSys GV2
Product or component typeMotor circuit breaker
Device short nameGV2ME
Device applicationMotor protection
Trip unit technologyThermal-magnetic
Complementary
Poles description3P
Network typeAC
Utilisation category Category A (IEC 60947-2), AC-3 / AC-3e (IEC 60947-4-1)
Network frequency50/60 Hz (IEC 60947-2)
Motor power kW 0.25 kW at 400/415 V AC
0.55 kW at 690 V AC
Breaking capacity 100 kA Icu at 230/240 V AC
100 kA Icu at 400/415 V AC
100 kA Icu at 440 V AC
100 kA Icu at 500 V AC
100 kA Icu at 690 V AC
[Ics] Service short-circuit capacity 100% at all rated voltages (230–690 V AC)
Control typePush-button
[In] Rated current1 A
Thermal protection adjustment range0.63…1 A
Magnetic tripping current15.1 A
[Ith] Conventional free air thermal current1 A
[Ue] Rated operational voltage690 V AC
[Ui] Rated insulation voltage690 V AC
[Uimp] Impulse withstand voltage6 kV
Phase failure sensitivityYes (IEC 60947-4-1)
Suitability for isolationYes (IEC 60947-1)
Power dissipation per pole2.5 W
Mechanical durability100,000 cycles
Electrical durability 100,000 cycles (AC-3 & AC-3e at 415 V)
Rated dutyUninterrupted (IEC 60947-4-1)
Connections - terminals Power circuit: screw clamp terminals
2× 1…6 mm² solid
2× 1.5…6 mm² flexible (without cable end)
2× 1…4 mm² flexible (with cable end)
Tightening torque1.7 N·m
Fixing mode 35 mm DIN rail (clipped)
Panel (screwed with adaptor plate)
Mounting positionHorizontal / Vertical
Width45 mm
Height89 mm
Depth78.5 mm
ColourDark grey
