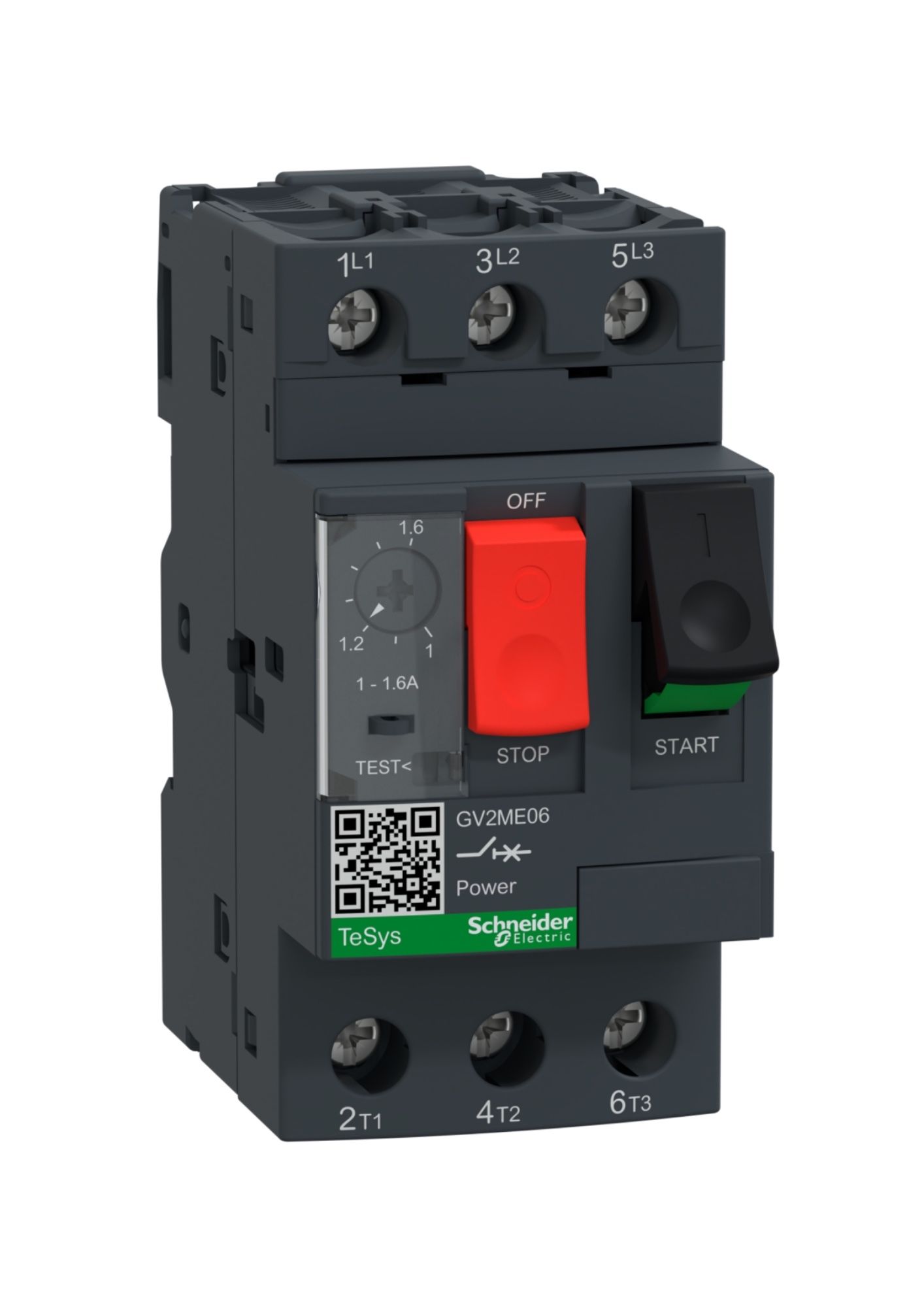

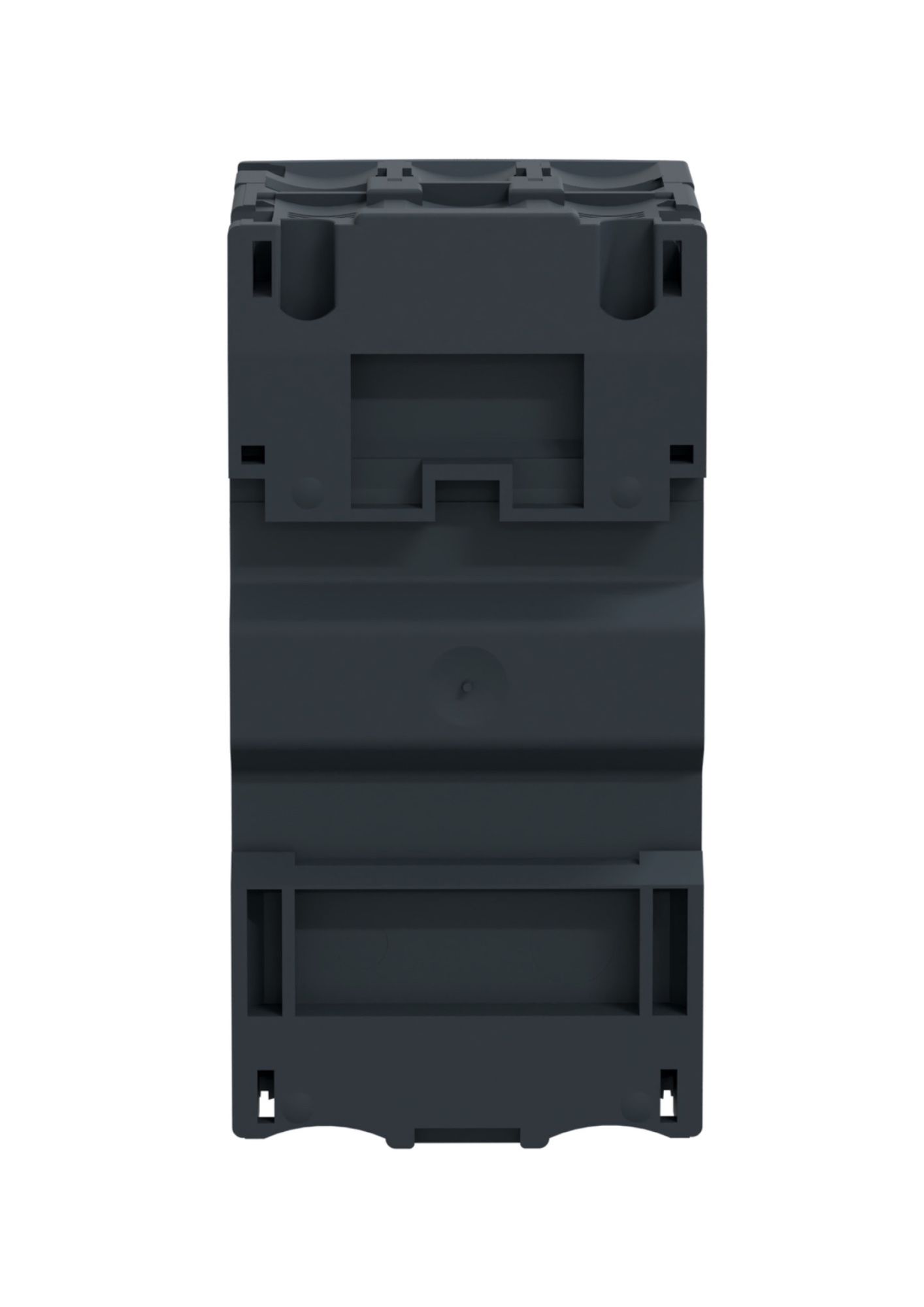

Schneider GV2ME06, Motor Protection Circuit Breaker (MPCB), TeSys GV2, 3P, 1-1.6 A, thermal magnetic, screw clamp terminals
Schneider GV2ME06, Motor Protection Circuit Breaker (MPCB), TeSys GV2, 3P, 1-1.6 A, thermal magnetic, screw clamp terminals Schneider GV2ME06, Motor Protection Circuit Breaker (MPCB), TeSys GV2, 3P, 1-1.6 A, thermal magnetic, screw clamp terminals Schneider GV2ME06, Motor Protection Circuit Breaker (MPCB), TeSys GV2, 3P, 1-1.6 A, thermal magnetic, screw clamp terminals

Schneider GV2ME06, Motor Protection Circuit Breaker (MPCB), TeSys GV2, 3P, 1-1.6 A, thermal magnetic, screw clamp terminals

In stock
SKU
GV2ME06
Special Price ₹2,740.00 Regular Price ₹6,850.00
(18% GST Extra)
Add to Wish List
  • 3-pole (3P) TeSys GV motor circuit breaker, 1.6A/690V, for 3-phase motor applications 0.37-0.55 kW @ 400V.
  • Thermal-magnetic protection with thermal setting range 1-1.6A and magnetic tripping at 13xIn.
  • High breaking capacity: Icu 100 kA @ 400V.
  • Connection via screw clamp terminals; start-stop control by push-button, guaranteed for 100,000 cycles AC-3.
  • Multi-standard certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX) and Green Premium compliant (RoHS/REACh).
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

TeSys GV2ME Datasheet
Main
RangeTeSys Deca
Product nameTeSys GV2
Product or component typeMotor circuit breaker
Device short nameGV2ME
Device applicationMotor protection
Trip unit technologyThermal-magnetic
Complementary
Poles description3P
Network typeAC
Utilisation categoryCategory A conforming to IEC 60947-2, AC-3, AC-3e conforming to IEC 60947-4-1
Network frequency50/60 Hz conforming to IEC 60947-2
Motor power kW 0.37–1.1 kW (depending on voltage: 400/415 V, 500 V, 690 V AC 50/60 Hz)
Breaking capacity100 kA Icu at 230–690 V AC 50/60 Hz conforming to IEC 60947-2
[Ics] rated service short-circuit breaking capacity100 % at 230–690 V AC 50/60 Hz
Control typePush-button
[In] rated current1.6 A
Thermal protection adjustment range1…1.6 A
Magnetic tripping current26.2 A
[Ith] conventional free air thermal current1.6 A
[Ue] rated operational voltage690 V AC 50/60 Hz
[Ui] rated insulation voltage690 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage6 kV
Phase failure sensitivityYes
Suitability for isolationYes
Power dissipation per pole2.5 W
Mechanical durability100,000 cycles
Electrical durability100,000 cycles for AC-3/AC-3e at 415 V In
Rated dutyUninterrupted
Connections - terminals Screw clamp terminal for 1–6 mm² solid, 1.5–6 mm² flexible without cable end, 1–4 mm² flexible with cable end
Tightening torque1.7 N·m
Fixing mode35 mm DIN rail clipped, Panel screwed (with adaptor plate)
Mounting positionHorizontal, Vertical
Width45 mm
Height89 mm
Depth78.5 mm
ColourDark grey
