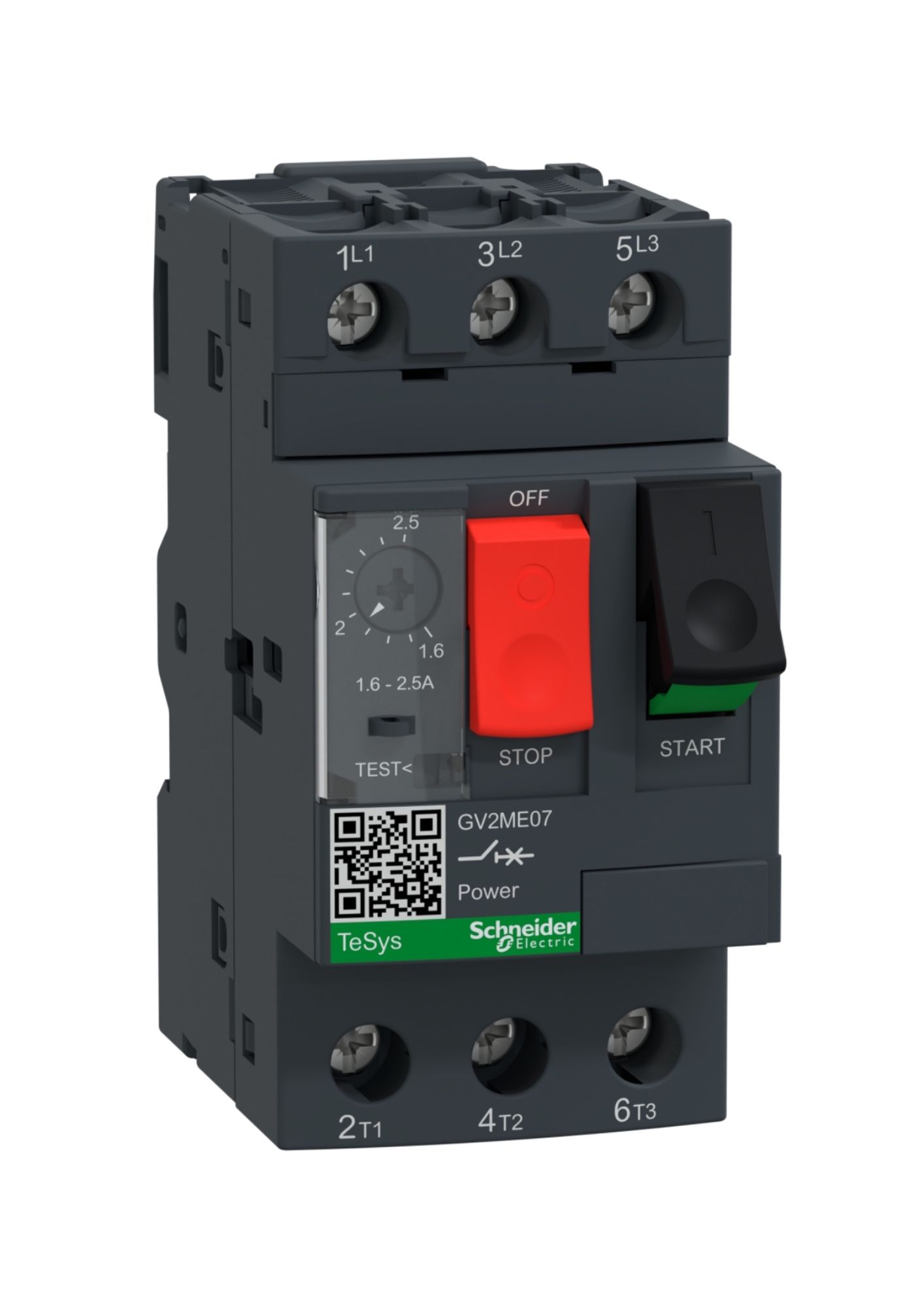

Schneider GV2ME07, Motor Protection Circuit Breaker (MPCB), TeSys GV2, 3P, 1.6-2.5 A, thermal magnetic, screw clamp terminals
Schneider GV2ME07, Motor Protection Circuit Breaker (MPCB), TeSys GV2, 3P, 1.6-2.5 A, thermal magnetic, screw clamp terminals Schneider GV2ME07, Motor Protection Circuit Breaker (MPCB), TeSys GV2, 3P, 1.6-2.5 A, thermal magnetic, screw clamp terminals Schneider GV2ME07, Motor Protection Circuit Breaker (MPCB), TeSys GV2, 3P, 1.6-2.5 A, thermal magnetic, screw clamp terminals

Schneider GV2ME07, Motor Protection Circuit Breaker (MPCB), TeSys GV2, 3P, 1.6-2.5 A, thermal magnetic, screw clamp terminals

In stock
SKU
GV2ME07
Special Price ₹2,740.00 Regular Price ₹6,850.00
(18% GST Extra)
Add to Wish List
  • TeSys GV motor circuit breaker, 3 poles (3P), 2.5A/690V, for 3-phase motor applications 0.75kW@400V.
  • Thermal-magnetic protection with a thermal setting range of 1.6-2.5A and magnetic tripping at 13xIn.
  • High breaking capacity Icu 100kA@400V with screw clamp terminals for connection.
  • Start-stop control by push-button, guaranteed for 100,000 AC-3 cycles.
  • Certified to multiple standards (IEC, UL, CSA, CCC, EAC, Marine, ATEX) and Green Premium compliant (RoHS/REACh).
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

TeSys GV2ME Motor Circuit Breaker Datasheet
Main
RangeTeSys Deca
Product nameTeSys GV2
Product or component typeMotor circuit breaker
Device short nameGV2ME
Device applicationMotor protection
Trip unit technologyThermal-magnetic
Complementary
Poles description3P
Network typeAC
Utilisation categoryCategory A conforming to IEC 60947-2, AC-3, AC-3e
Network frequency50/60 Hz
Motor power kW0.75 kW at 400/415 V AC, 1.1 kW at 500 V AC, 1.5 kW at 690 V AC
Breaking capacity100 kA Icu (230-500 V AC), 3 kA Icu at 690 V AC
Rated service short-circuit breaking capacity [Ics]100% (230-500 V AC), 75% at 690 V AC
Control typePush-button
Rated current [In]2.5 A
Thermal protection adjustment range1.6–2.5 A
Magnetic tripping current39 A
Rated operational voltage [Ue]690 V AC
Rated insulation voltage [Ui]690 V AC
Rated impulse withstand voltage [Uimp]6 kV
Phase failure sensitivityYes
Suitability for isolationYes
Power dissipation per pole2.5 W
Mechanical durability100,000 cycles
Electrical durability100,000 cycles for AC-3 & AC-3e at 415 V
Rated dutyUninterrupted
Connections - terminalsScrew clamp terminals, solid 1–6 mm², flexible 1.5–6 mm², flexible with cable end 1–4 mm²
Tightening torque1.7 N·m
Fixing mode35 mm DIN rail clipped, panel screwed with adaptor
Mounting positionHorizontal / Vertical
Dimensions (W×H×D)45 × 89 × 78.5 mm
ColourDark grey
