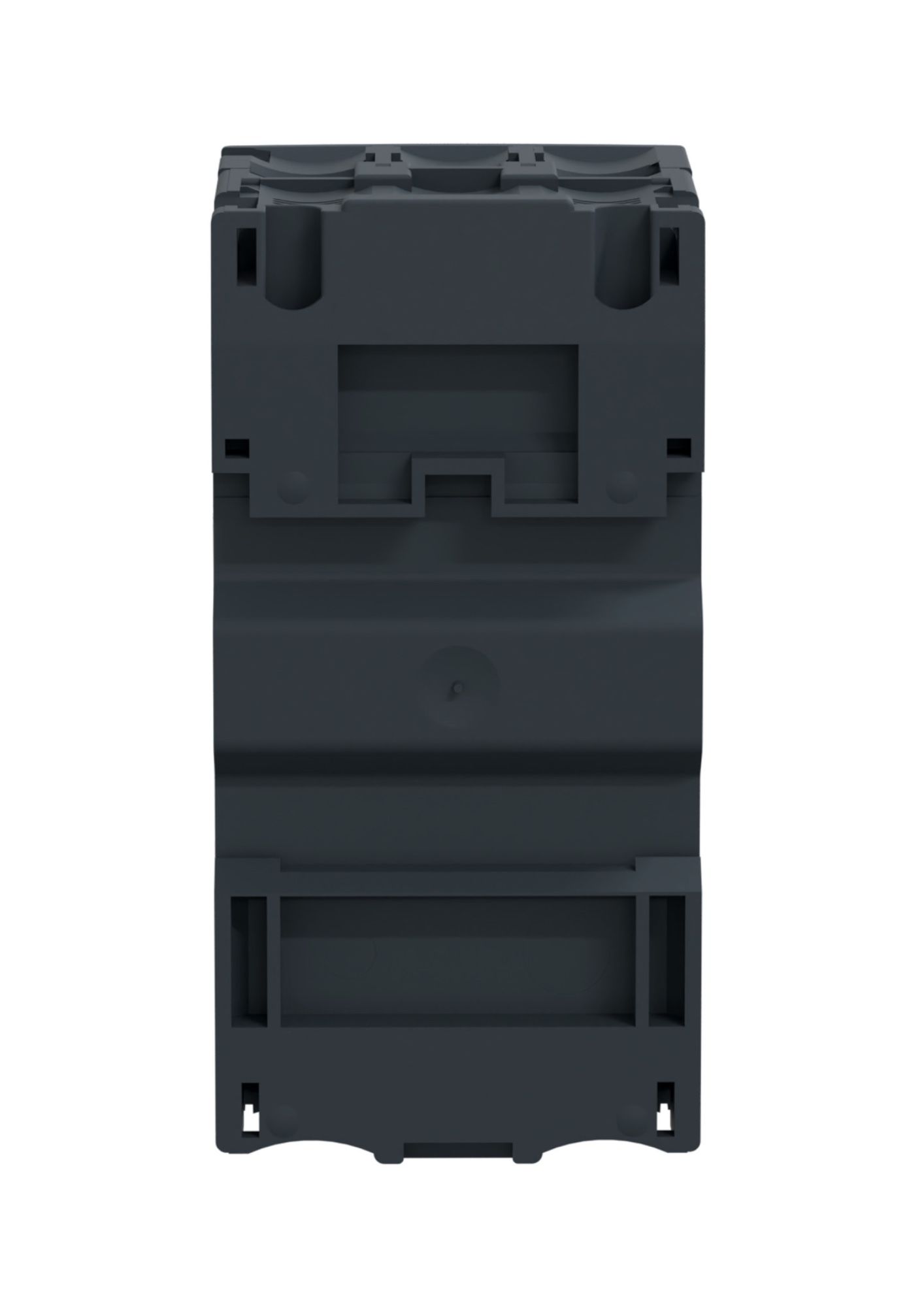

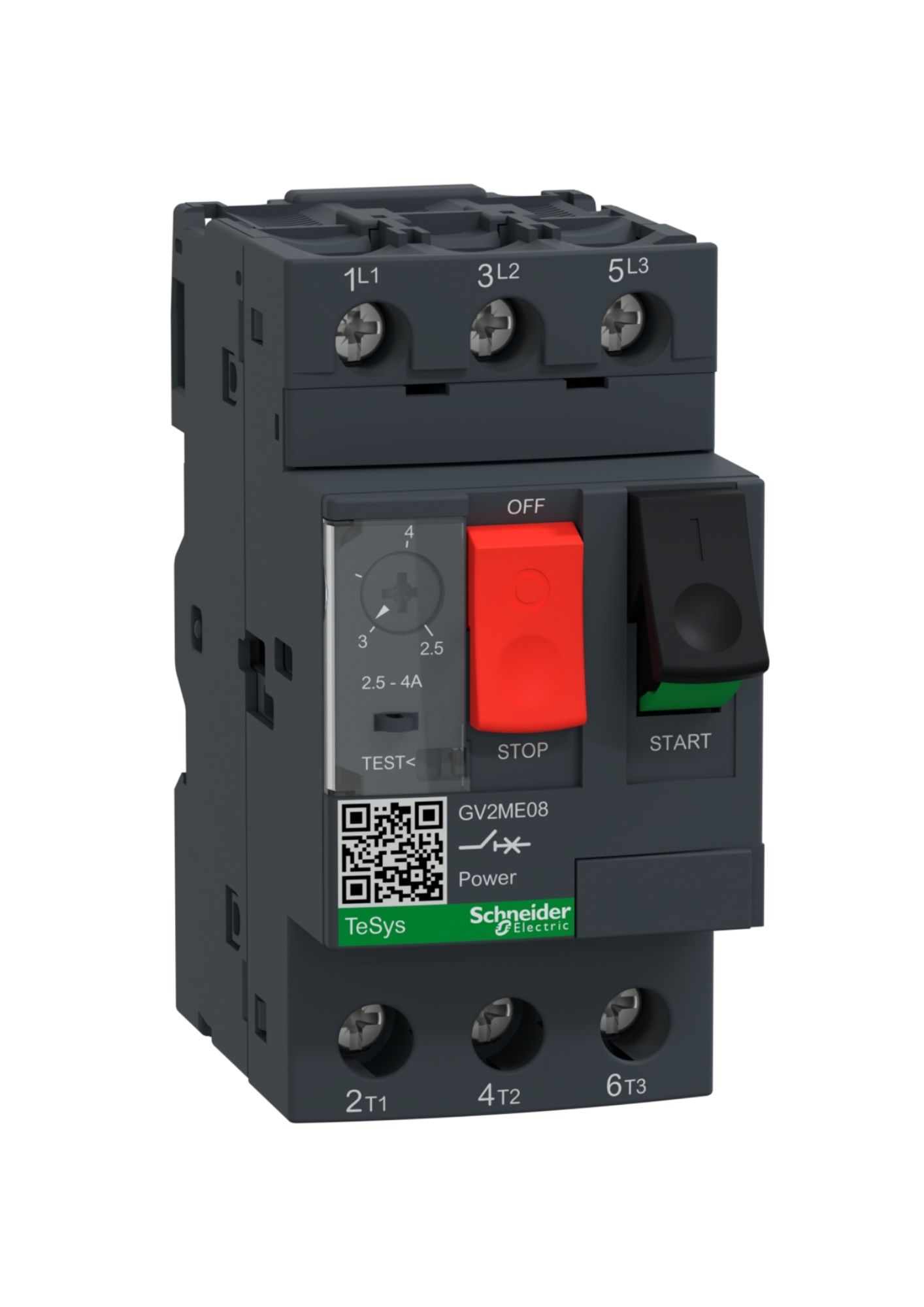

Schneider GV2ME08, Motor Protection Circuit Breaker, TeSys GV2, 3P, 2.5-4 A, thermal magnetic, screw clamp terminals
Schneider GV2ME08, Motor Protection Circuit Breaker, TeSys GV2, 3P, 2.5-4 A, thermal magnetic, screw clamp terminals Schneider GV2ME08, Motor Protection Circuit Breaker, TeSys GV2, 3P, 2.5-4 A, thermal magnetic, screw clamp terminals Schneider GV2ME08, Motor Protection Circuit Breaker, TeSys GV2, 3P, 2.5-4 A, thermal magnetic, screw clamp terminals

Schneider GV2ME08, Motor Protection Circuit Breaker, TeSys GV2, 3P, 2.5-4 A, thermal magnetic, screw clamp terminals

In stock
SKU
GV2ME08
Special Price ₹2,836.00 Regular Price ₹7,090.00
(18% GST Extra)
Add to Wish List
  • TeSys GV motor circuit breaker, 3 poles (3P), 4A/690V, for 3-phase motor applications 1.1–1.5kW @400V
  • Thermal-magnetic protection with thermal setting range 2.5–4A, magnetic tripping at 13xIn
  • High breaking capacity Icu 100kA @400V, screw clamp terminal connections
  • Start-stop control by push-button, guaranteed for 100,000 cycles (AC-3)
  • Multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh)
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

Main
RangeTeSys Deca
Product nameTeSys GV2
Product or component typeMotor circuit breaker
Device short nameGV2ME
Device applicationMotor protection
Trip unit technologyThermal-magnetic
Complementary
Poles description3P
Network typeAC
Utilisation category Category A conforming to IEC 60947-2
AC-3 conforming to IEC 60947-4-1
AC-3e conforming to IEC 60947-4-1
Network frequency50/60 Hz conforming to IEC 60947-2
Motor power (kW) 1.1 kW at 400/415 V AC
1.5 kW at 400/415 V AC
1.5 kW at 500 V AC
2.2 kW at 500 V AC
2.2 kW at 690 V AC
3 kW at 690 V AC
Breaking capacity 100 kA Icu at 230/240 V AC
100 kA Icu at 400/415 V AC
100 kA Icu at 440 V AC
100 kA Icu at 500 V AC
3 kA Icu at 690 V AC
[Ics] rated service short-circuit breaking capacity 100 % at 230/240 V AC
100 % at 400/415 V AC
100 % at 440 V AC
100 % at 500 V AC
75 % at 690 V AC
Control typePush-button
[In] rated current4 A
Thermal protection adjustment range2.5…4 A
Magnetic tripping current74 A
[Ith] conventional free air thermal current4 A
[Ue] rated operational voltage690 V AC
[Ui] rated insulation voltage690 V AC
[Uimp] rated impulse withstand voltage6 kV
Phase failure sensitivityYes (IEC 60947-4-1)
Suitability for isolationYes (IEC 60947-1)
Power dissipation per pole2.5 W
Mechanical durability100000 cycles
Electrical durability 100000 cycles for AC-3 at 415 V
100000 cycles for AC-3e at 415 V
Rated dutyUninterrupted (IEC 60947-4-1)
Connections - terminals Screw clamp terminal: 2 × 1…6 mm² solid
Screw clamp terminal: 2 × 1.5…6 mm² flexible without cable end
Screw clamp terminal: 2 × 1…4 mm² flexible with cable end
Tightening torque1.7 N·m (screw clamp terminal)
Fixing mode 35 mm symmetrical DIN rail: clipped
Panel: screwed (with adaptor plate)
Mounting positionHorizontal / Vertical
Width45 mm
Height89 mm
Depth78.5 mm
ColourDark grey
