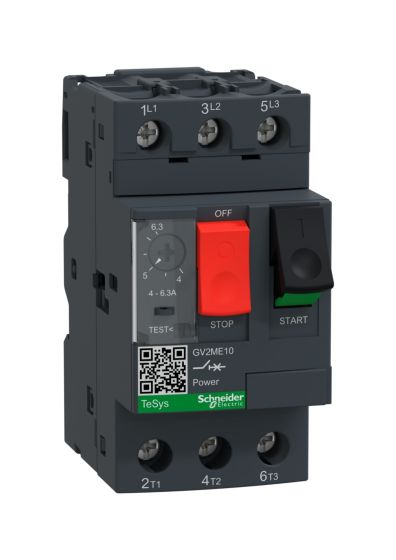

Schneider GV2ME10, Motor Protection Circuit Breaker (MPCB), TeSys GV2, 3P, 4-6.3 A, thermal magnetic, screw clamp terminals
Schneider GV2ME10, Motor Protection Circuit Breaker (MPCB), TeSys GV2, 3P, 4-6.3 A, thermal magnetic, screw clamp terminals Schneider GV2ME10, Motor Protection Circuit Breaker (MPCB), TeSys GV2, 3P, 4-6.3 A, thermal magnetic, screw clamp terminals Schneider GV2ME10, Motor Protection Circuit Breaker (MPCB), TeSys GV2, 3P, 4-6.3 A, thermal magnetic, screw clamp terminals

Schneider GV2ME10, Motor Protection Circuit Breaker (MPCB), TeSys GV2, 3P, 4-6.3 A, thermal magnetic, screw clamp terminals

In stock
SKU
GV2ME10
Special Price ₹2,836.00 Regular Price ₹7,090.00
(18% GST Extra)
Add to Wish List
  • TeSys GV motor circuit breaker, 3 poles (3P), 6.3A/690V for 3-phase motor applications up to 2.2kW@400V
  • Provides thermal-magnetic protection with thermal setting range 4-6.3A and magnetic tripping at 13xIn
  • High breaking capacity Icu 100kA@400V, screw clamp terminal connections
  • Start-stop control by push-button, guaranteed for 100,000 cycles AC-3
  • Certified by IEC, UL, CSA, CCC, EAC, Marine, ATEX and Green Premium compliant (RoHS/REACh)
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

Main
RangeTeSys Deca
Product nameTeSys GV2
Product or component typeMotor circuit breaker
Device short nameGV2ME
Device applicationMotor protection
Trip unit technologyThermal-magnetic
Complementary
Poles description3P
Network typeAC
Utilisation category Category A conforming to IEC 60947-2
AC-3 conforming to IEC 60947-4-1
AC-3e conforming to IEC 60947-4-1
Network frequency50/60 Hz conforming to IEC 60947-2
Motor power kW 2.2 kW at 400/415 V AC 50/60 Hz
3 kW at 500 V AC 50/60 Hz
4 kW at 690 V AC 50/60 Hz
Breaking capacity 100 kA Icu at 230/240 V AC 50/60 Hz
100 kA Icu at 400/415 V AC 50/60 Hz
50 kA Icu at 440 V AC 50/60 Hz
50 kA Icu at 500 V AC 50/60 Hz
3 kA Icu at 690 V AC 50/60 Hz
Rated service short-circuit breaking capacity [Ics] 100% at 230/240 V AC
100% at 400/415 V AC
100% at 440 V AC
100% at 500 V AC
75% at 690 V AC
Control typePush-button
Rated current [In]6.3 A
Thermal protection adjustment range4…6.3 A
Magnetic tripping current91 A
Conventional free air thermal current [Ith]6.3 A
Rated operational voltage [Ue]690 V AC
Rated insulation voltage [Ui]690 V AC
Rated impulse withstand voltage [Uimp]6 kV
Phase failure sensitivityYes
Suitability for isolationYes
Power dissipation per pole2.5 W
Mechanical durability100000 cycles
Electrical durability 100000 cycles for AC-3 at 415 V In
100000 cycles for AC-3e at 415 V In
Rated dutyUninterrupted
Connections - terminals Screw clamp terminal 2 cables 1…6 mm² solid
Screw clamp terminal 2 cables 1.5…6 mm² flexible without cable end
Screw clamp terminal 2 cables 1…4 mm² flexible with cable end
Tightening torque1.7 N·m
Fixing mode 35 mm DIN rail: clipped
Panel: screwed (with adaptor plate)
Mounting positionHorizontal / Vertical
Width45 mm
Height89 mm
Depth78.5 mm
ColourDark grey

No specifications available for this product.
