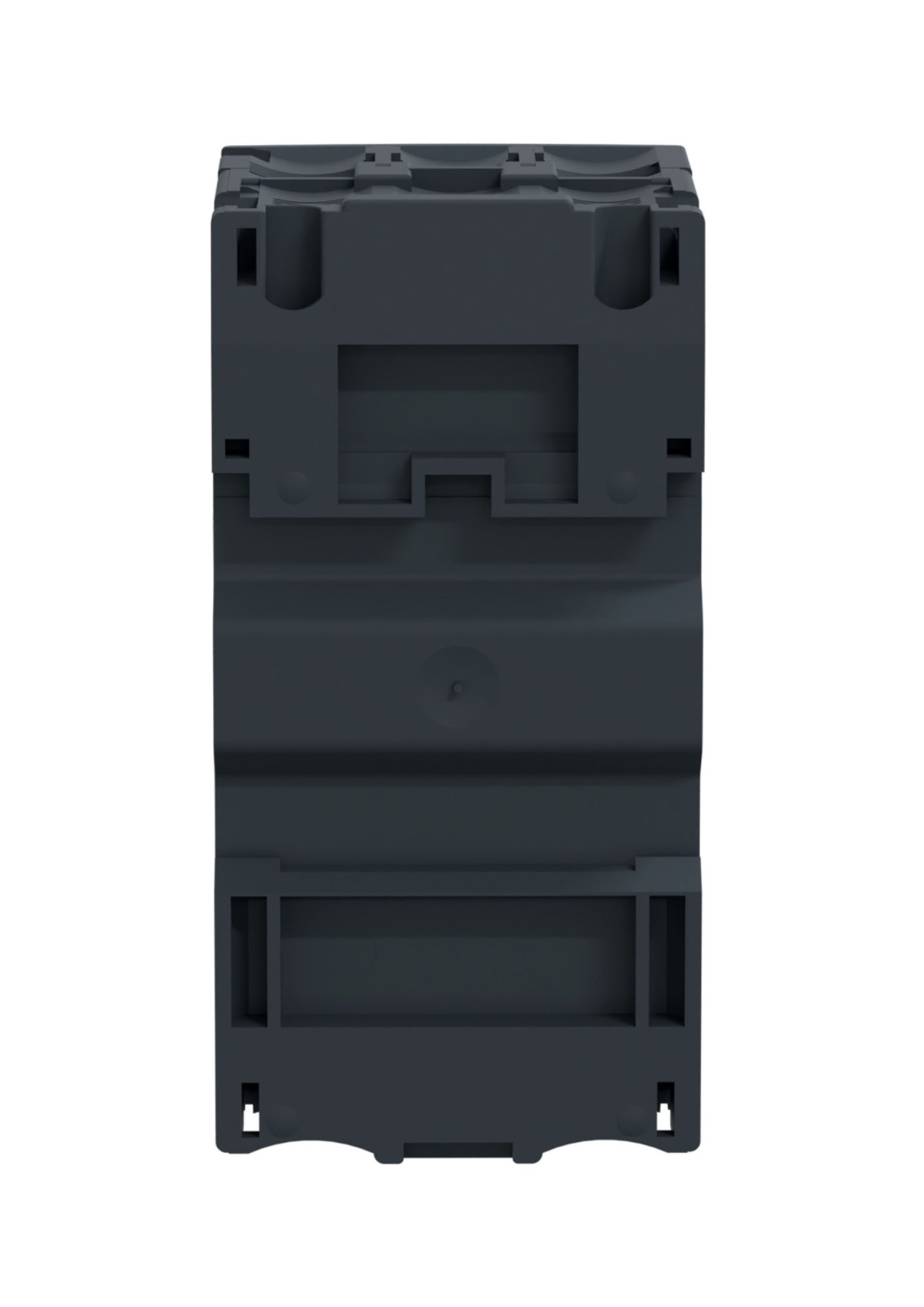

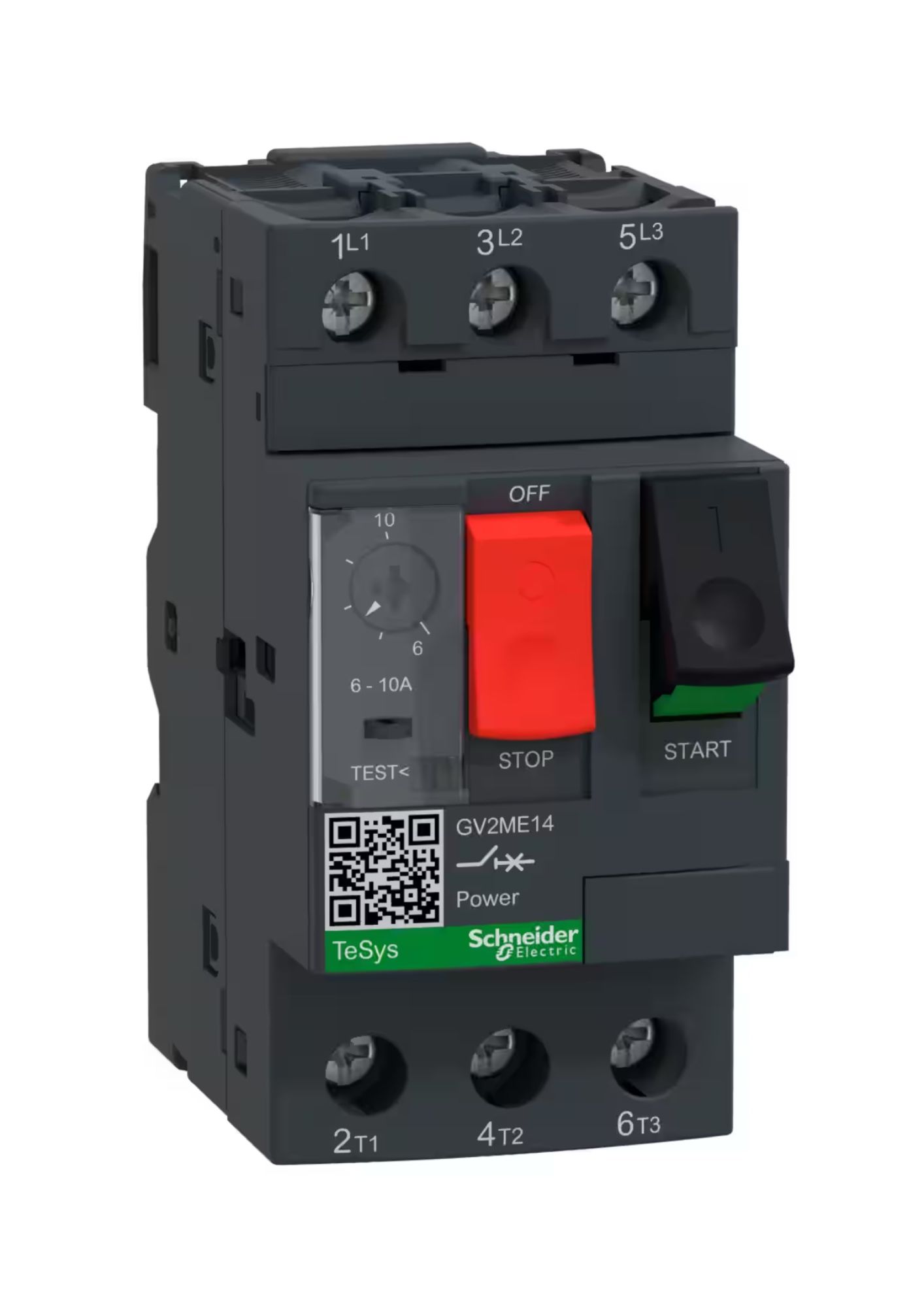

Schneider GV2ME14, Motor Protection Circuit Breaker (MPCB), TeSys GV2, 3P, 6-10 A, thermal magnetic, screw clamp terminals
Schneider GV2ME14, Motor Protection Circuit Breaker (MPCB), TeSys GV2, 3P, 6-10 A, thermal magnetic, screw clamp terminals Schneider GV2ME14, Motor Protection Circuit Breaker (MPCB), TeSys GV2, 3P, 6-10 A, thermal magnetic, screw clamp terminals Schneider GV2ME14, Motor Protection Circuit Breaker (MPCB), TeSys GV2, 3P, 6-10 A, thermal magnetic, screw clamp terminals

Schneider GV2ME14, Motor Protection Circuit Breaker (MPCB), TeSys GV2, 3P, 6-10 A, thermal magnetic, screw clamp terminals

In stock
SKU
GV2ME14
Special Price ₹2,836.00 Regular Price ₹7,090.00
(18% GST Extra)
Add to Wish List
  • 3-pole (3P) motor circuit breaker, 10A/690V, for 3-phase motor applications 3-4kW@400V.
  • Thermal-magnetic protection with thermal setting range 6-10A and magnetic tripping at 13xIn.
  • High breaking capacity Icu 100kA@400V; connection by screw clamp terminals.
  • Start-stop control by push-button, guaranteed for 100,000 cycles AC-3.
  • Certified to multiple standards (IEC, UL, CSA, CCC, EAC, Marine, ATEX) and Green Premium compliant (RoHS/REACh).
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

TeSys GV2ME Motor Circuit Breaker
Main
RangeTeSys Deca
Product nameTeSys GV2
TypeMotor circuit breaker
Device short nameGV2ME
ApplicationMotor protection
Trip unit technologyThermal-magnetic
Poles3P
Network typeAC
Utilisation categoryCategory A, AC-3, AC-3e
Motor power3–7.5 kW depending on voltage
Breaking capacity (Icu)3–100 kA depending on voltage
Rated current [In]10 A
Thermal adjustment range6–10 A
Magnetic tripping149 A
Rated operational voltage [Ue]690 V AC
Rated insulation voltage [Ui]690 V AC
Impulse withstand voltage [Uimp]6 kV
Phase failure sensitivityYes
Control typePush-button
Complementary
ConnectionScrew clamp terminals, 1–6 mm²
Mounting35 mm DIN rail / Panel mounted
Dimensions (W×H×D)45 × 89 × 78.5 mm
ColorDark grey
Mechanical durability100,000 cycles
Electrical durability100,000 cycles for AC-3/AC-3e at 415 V In
Rated dutyUninterrupted conforming to IEC 60947-4-1
