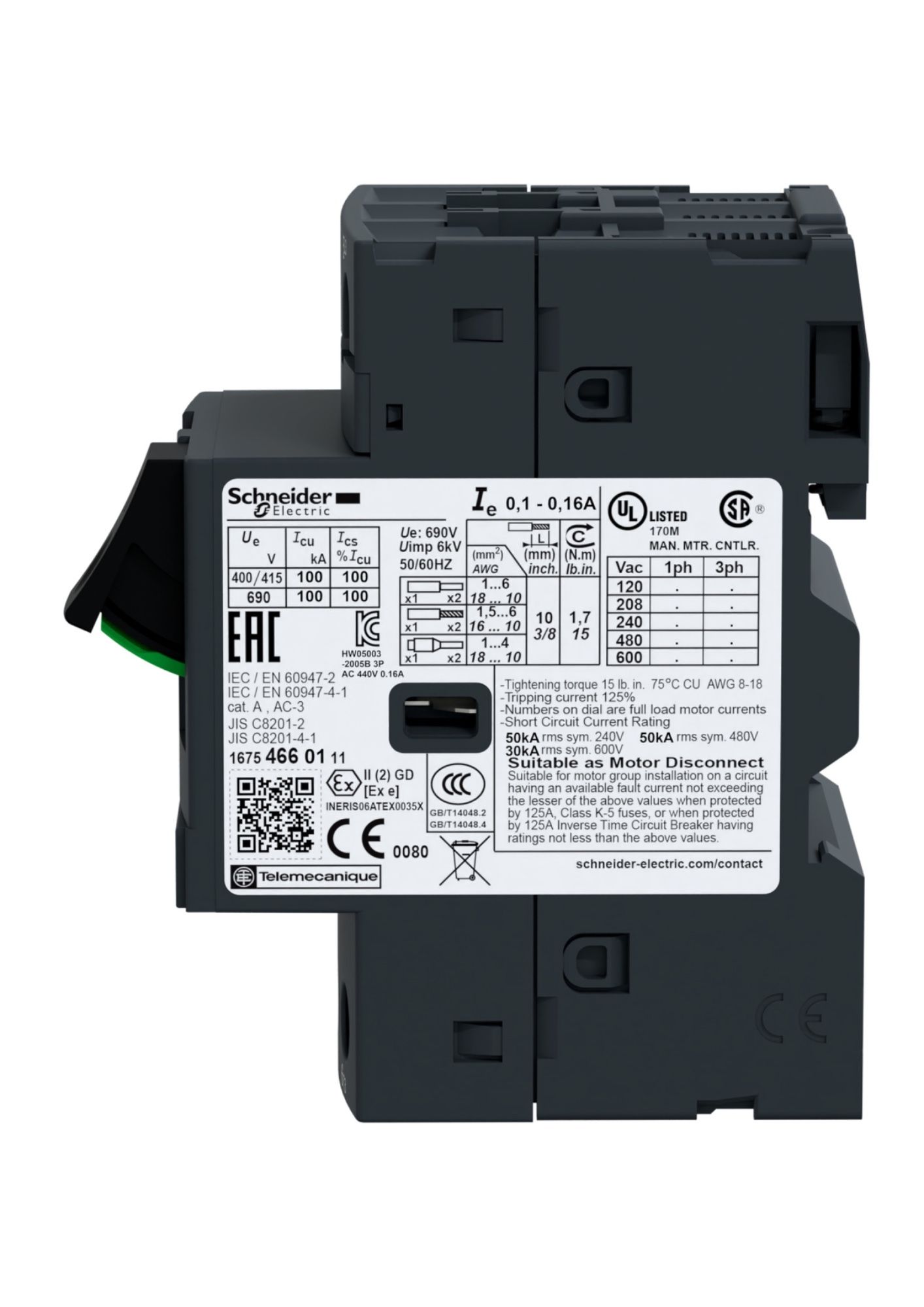

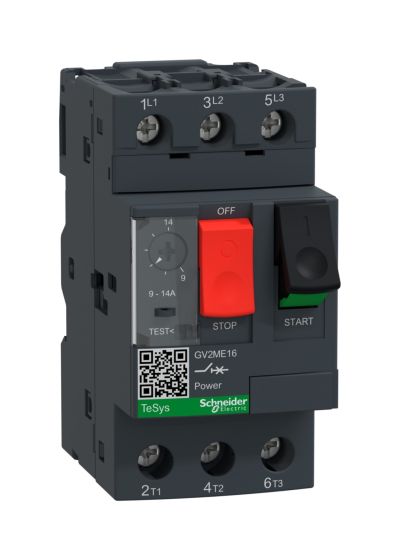

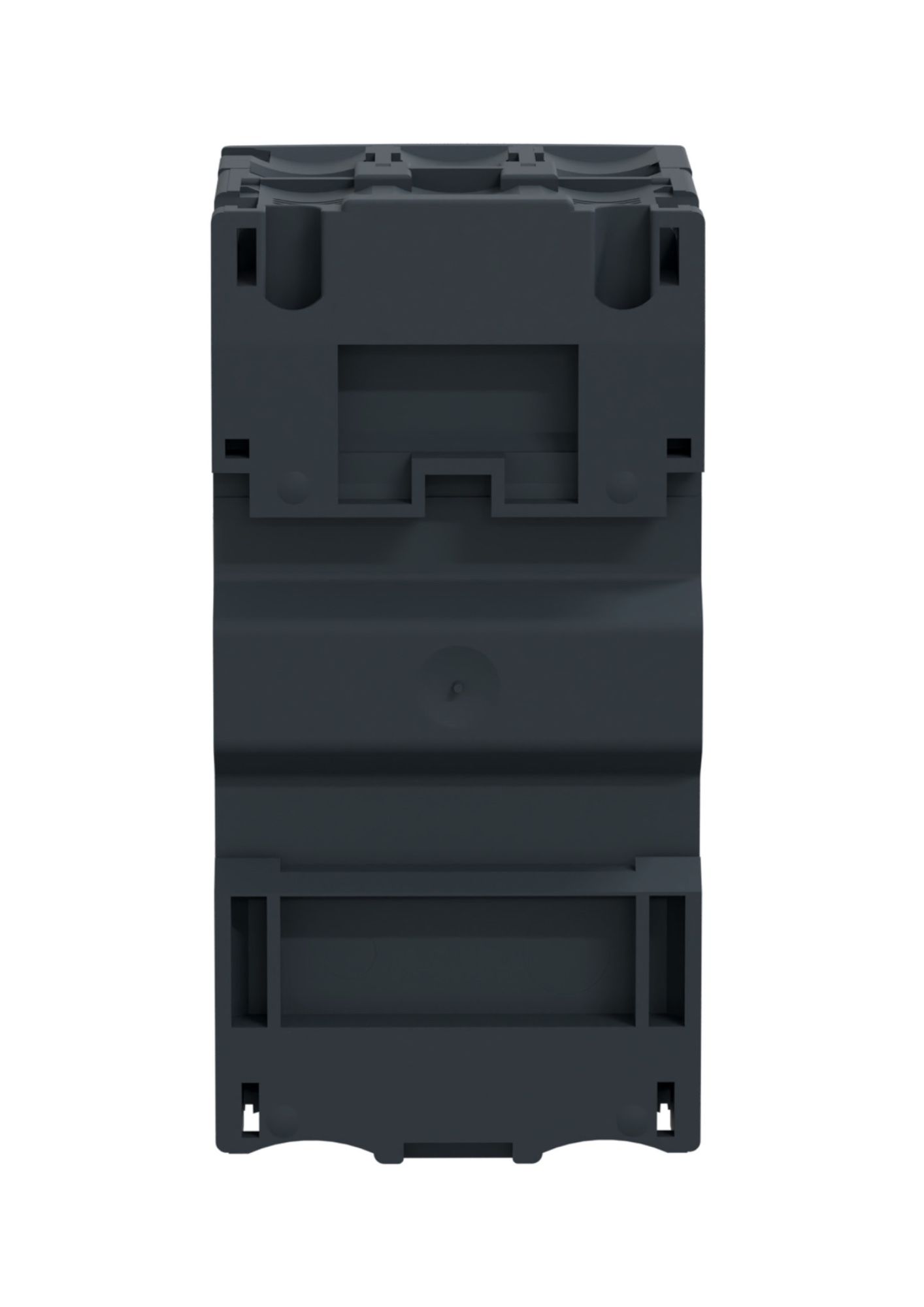

Schneider GV2ME16, Motor Protection Circuit Breaker (MPCB), TeSys GV2, 3P, 9-14 A, thermal magnetic, screw clamp terminals
In stock
SKU
GV2ME16
Special Price
₹3,176.00
Regular Price
₹7,940.00
Check Delivery Options at your Area


FREE SHIPPING
Free Shipping by Surface Only*


SECURE PAYMENT
100% Secure Payment
Main | |
---|---|
Range | TeSys Deca |
Product name | TeSys GV2 |
Product or component type | Motor circuit breaker |
Device short name | GV2ME |
Device application | Motor protection |
Trip unit technology | Thermal-magnetic |
Complementary | |
Poles description | 3P |
Network type | AC |
Utilisation category |
Category A conforming to IEC 60947-2 AC-3 conforming to IEC 60947-4-1 AC-3e conforming to IEC 60947-4-1 |
Network frequency | 50/60 Hz conforming to IEC 60947-2 |
Motor power kW |
5.5 kW at 400/415 V AC 50/60 Hz 7.5 kW at 500 V AC 50/60 Hz 9 kW at 690 V AC 50/60 Hz 11 kW at 690 V AC 50/60 Hz |
Breaking capacity |
100 kA Icu at 230/240 V AC 50/60 Hz 15 kA Icu at 400/415 V AC 50/60 Hz 8 kA Icu at 440 V AC 50/60 Hz 6 kA Icu at 500 V AC 50/60 Hz 3 kA Icu at 690 V AC 50/60 Hz |
Rated service short-circuit breaking capacity [Ics] |
100 % at 230/240 V AC 50/60 Hz 50 % at 400/415 V AC 50/60 Hz 50 % at 440 V AC 50/60 Hz 75 % at 500 V AC 50/60 Hz 75 % at 690 V AC 50/60 Hz |
Control type | Push-button |
Rated current [In] | 14 A |
Thermal protection adjustment range | 9…14 A conforming to IEC 60947-2 |
Magnetic tripping current | 253.4 A |
Conventional free air thermal current [Ith] | 14 A conforming to IEC 60947-2 |
Rated operational voltage [Ue] | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
Rated insulation voltage [Ui] | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
Rated impulse withstand voltage [Uimp] | 6 kV conforming to IEC 60947-2 |
Phase failure sensitivity | Yes conforming to IEC 60947-4-1 |
Suitability for isolation | Yes conforming to IEC 60947-1 |
Power dissipation per pole | 2.5 W |
Mechanical durability | 100,000 cycles |
Electrical durability |
100,000 cycles for AC-3 at 415 V In 100,000 cycles for AC-3e at 415 V In |
Rated duty | Uninterrupted conforming to IEC 60947-4-1 |
Connections - terminals |
Power circuit: screw clamp terminal 2 cable(s) 1…6 mm² solid Power circuit: screw clamp terminal 2 cable(s) 1.5…6 mm² flexible without cable end Power circuit: screw clamp terminal 2 cable(s) 1…4 mm² flexible with cable end |
Tightening torque | 1.7 N.m - on screw clamp terminal |
Fixing mode |
35 mm symmetrical DIN rail: clipped Panel: screwed (with adaptor plate) |
Mounting position | Horizontal, Vertical |
Width | 45 mm |
Height | 89 mm |
Depth | 78.5 mm |
Colour | Dark grey |
