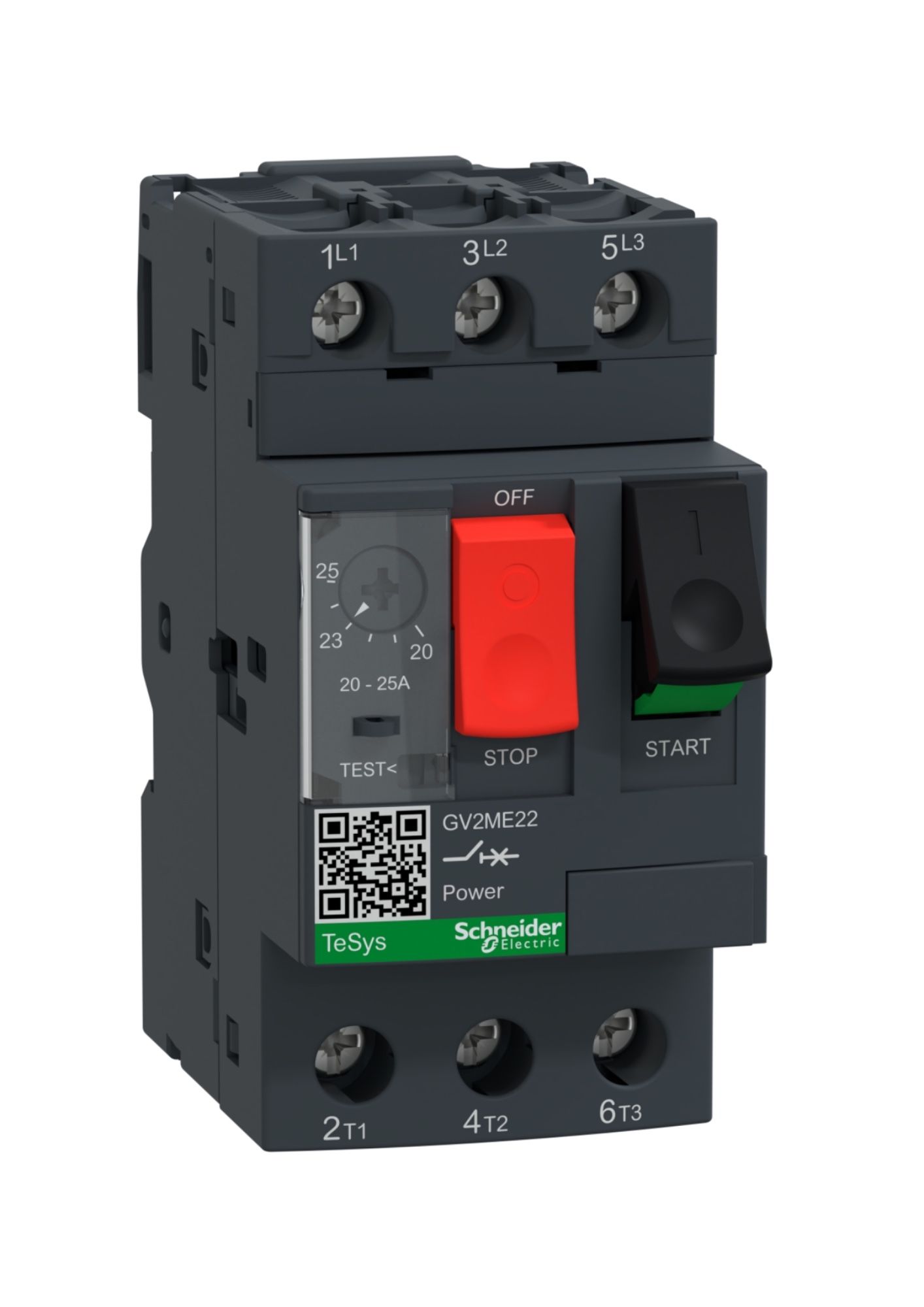

Schneider GV2ME22, Motor Protection Circuit Breaker (MPCB), TeSys GV2, 3P, 20-25 A, thermal magnetic, screw clamp terminals
In stock
SKU
GV2ME22
Special Price
₹5,666.00
Regular Price
₹14,165.00
Schneider GV2ME22, Motor Protection Circuit Breaker (MPCB), TeSys GV2, 3P, 20-25 A, thermal magnetic, screw clamp terminals is available to buy in increments of 1
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Main | |
|---|---|
| Range | TeSys Deca |
| Product name | TeSys GV2 |
| Product or component type | Motor circuit breaker |
| Device short name | GV2ME |
| Device application | Motor protection |
| Trip unit technology | Thermal-magnetic |
| Complementary | |
| Poles description | 3P |
| Network type | AC |
| Utilisation category |
Category A (IEC 60947-2) AC-3 (IEC 60947-4-1) AC-3e (IEC 60947-4-1) |
| Network frequency | 50/60 Hz (IEC 60947-2) |
| Motor power kW |
11 kW at 400/415 V AC 50/60 Hz 15 kW at 500 V AC 50/60 Hz |
| Breaking capacity |
50 kA Icu at 230/240 V AC 50/60 Hz (IEC 60947-2) 15 kA Icu at 400/415 V AC 50/60 Hz (IEC 60947-2) 6 kA Icu at 440 V AC 50/60 Hz (IEC 60947-2) 4 kA Icu at 500 V AC 50/60 Hz (IEC 60947-2) 3 kA Icu at 690 V AC 50/60 Hz (IEC 60947-2) |
| [Ics] service short-circuit breaking capacity |
100% at 230/240 V AC 50/60 Hz 40% at 400/415 V AC 50/60 Hz 50% at 440 V AC 50/60 Hz 75% at 500 V AC 50/60 Hz 75% at 690 V AC 50/60 Hz |
| Control type | Push-button |
| [In] rated current | 25 A |
| Thermal protection adjustment range | 20…25 A (IEC 60947-2) |
| Magnetic tripping current | 388.3 A |
| [Ith] conventional free air thermal current | 25 A (IEC 60947-2) |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
| [Ui] rated insulation voltage | 690 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 6 kV |
| Phase failure sensitivity | Yes (IEC 60947-4-1) |
| Suitability for isolation | Yes (IEC 60947-1) |
| Power dissipation per pole | 2.5 W |
| Mechanical durability | 100000 cycles |
| Electrical durability |
100000 cycles for AC-3 at 415 V In 100000 cycles for AC-3e at 415 V In |
| Rated duty | Uninterrupted (IEC 60947-4-1) |
| Connections - terminals |
Power circuit: screw clamp terminal 2 cable(s) 1…6 mm² solid Power circuit: screw clamp terminal 2 cable(s) 1.5…6 mm² flexible without cable end Power circuit: screw clamp terminal 2 cable(s) 1…4 mm² flexible with cable end |
| Tightening torque | 1.7 N·m (screw clamp terminal) |
| Fixing mode |
35 mm symmetrical DIN rail: clipped Panel: screwed (with adaptor plate) |
| Mounting position |
Horizontal Vertical |
| Width | 45 mm |
| Height | 89 mm |
| Depth | 78.5 mm |
| Colour | Dark grey |
