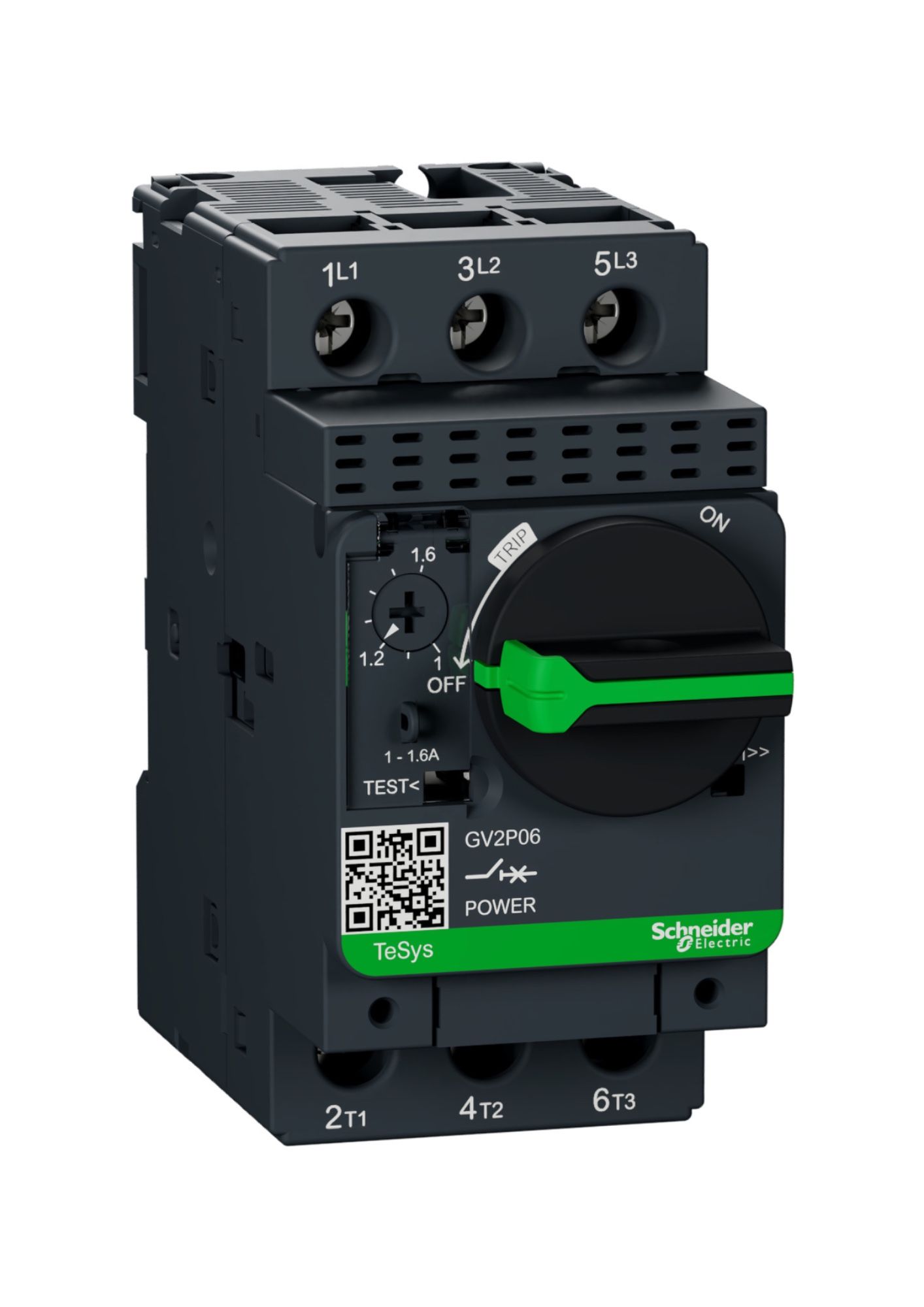

Schneider GV2P06, Motor Protection Circuit Breaker (MPCB), TeSys GV2, 3P, 1-1.6 A, thermal magnetic, screw clamp terminals
In stock
SKU
GV2P06
Special Price
₹2,824.00
Regular Price
₹7,060.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Main | |
|---|---|
| Range | TeSys Deca |
| Product name | TeSys GV2 |
| Product type | Motor circuit breaker |
| Device short name | GV2P |
| Device application | Motor protection |
| Complementary | |
| Poles description | 3P |
| Network type | AC |
| Rated current [In] | 1.6 A |
| Thermal protection range | 1…1.6 A |
| Magnetic tripping current | 26.2 A |
| Thermal free air current [Ith] | 1.6 A |
| Rated operational voltage [Ue] | 690 V AC 50/60 Hz |
| Rated insulation voltage [Ui] | 690 V AC 50/60 Hz |
| Rated impulse withstand voltage [Uimp] | 6 kV |
| Phase failure sensitivity | Yes |
| Suitability for isolation | Yes |
| Power dissipation per pole | 2.5 W |
| Mechanical durability | 100,000 cycles |
| Electrical durability | 100,000 cycles for AC-3 and AC-3e at 415 V In |
| Rated duty | Uninterrupted |
| Connections - terminals |
Screw clamp terminals: 2 cables 1–6 mm² solid 2 cables 1.5–6 mm² flexible without end 2 cables 1–4 mm² flexible with end |
| Tightening torque | 1.7 N·m |
| Fixing mode | DIN rail 35 mm clipped or panel screwed with 2 x M4 screws |
| Mounting position | Horizontal / Vertical |

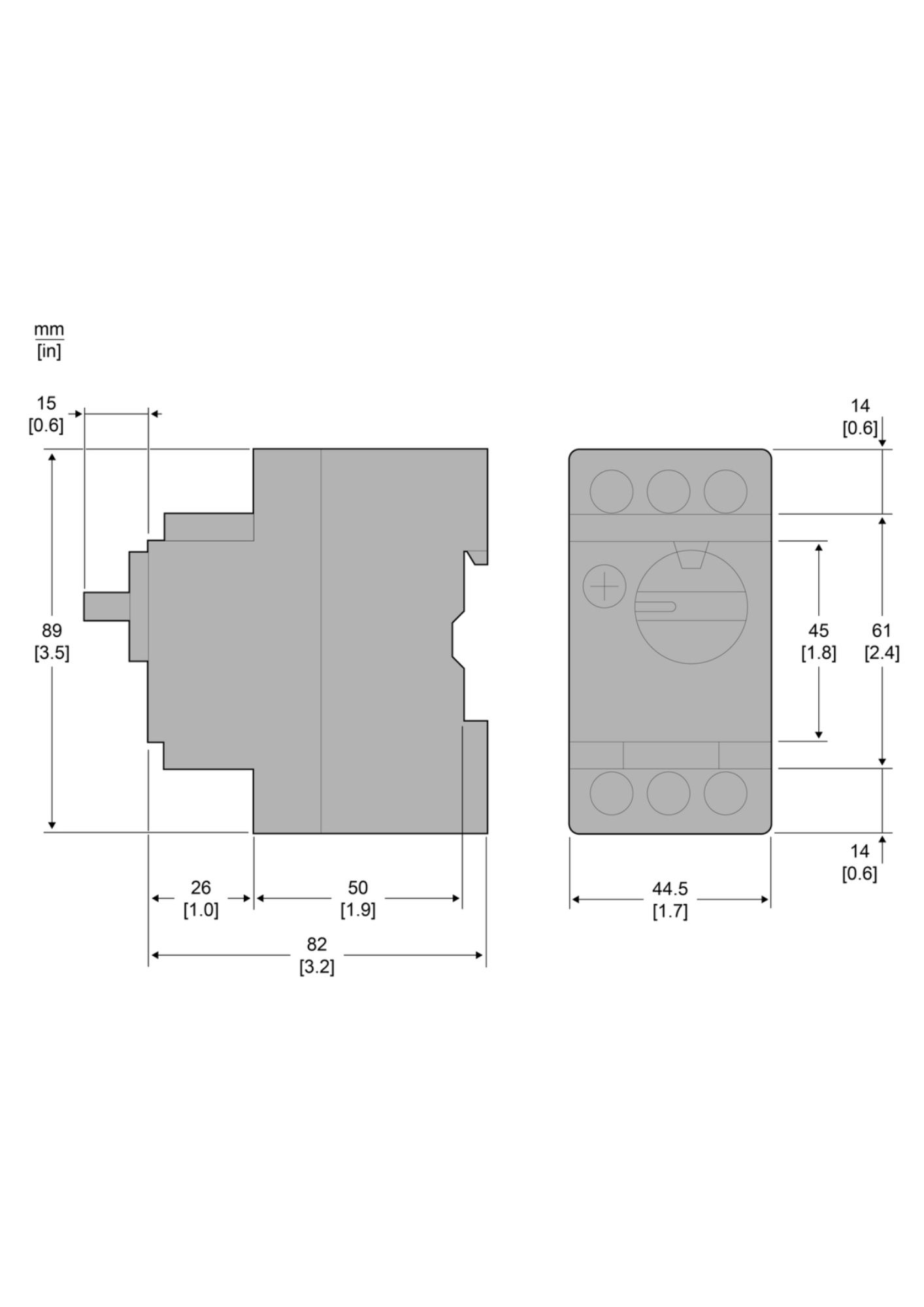

| Dimensions (W × H × D) | 45 × 89 × 97 mm |
| Colour | Dark grey |
