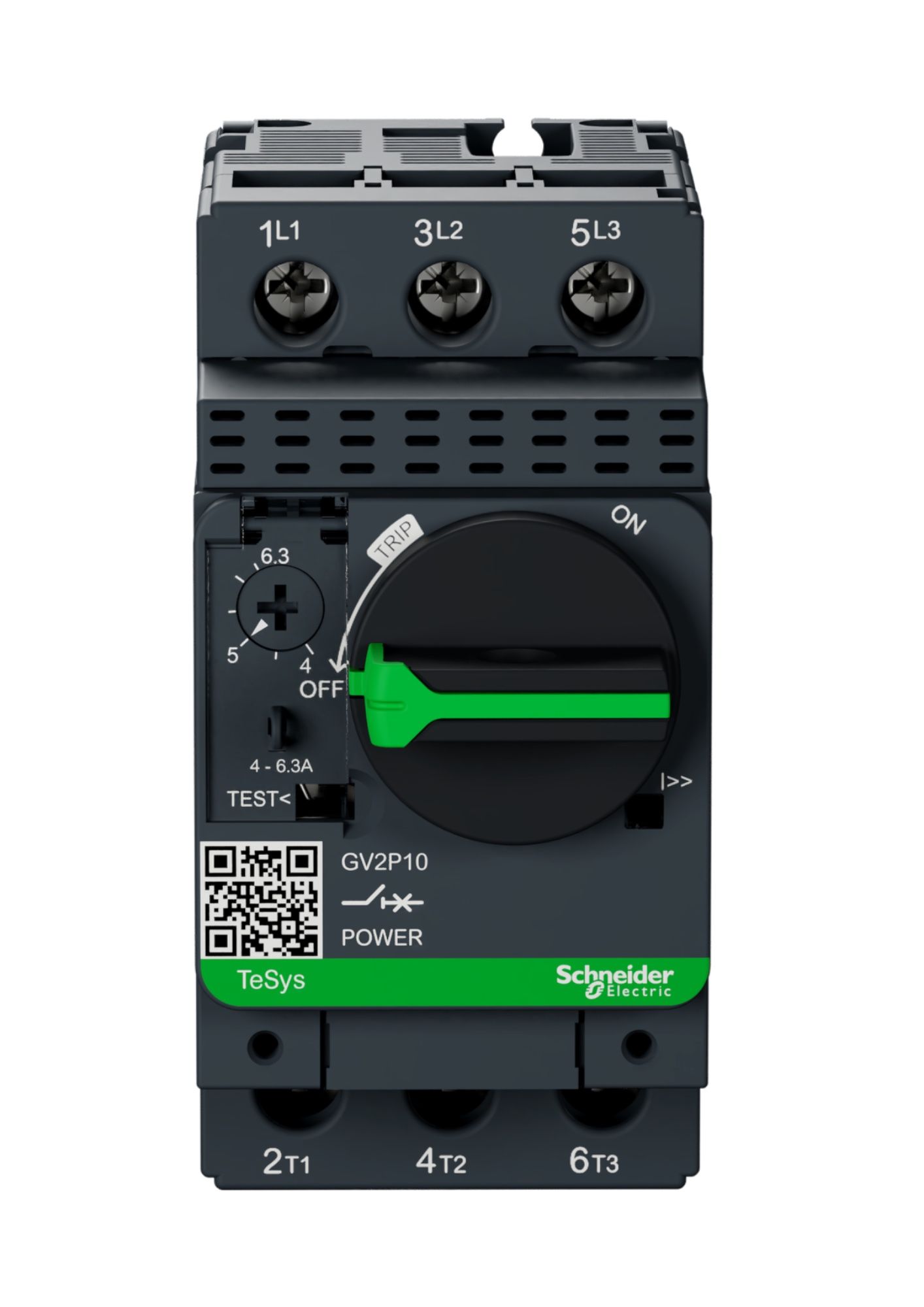

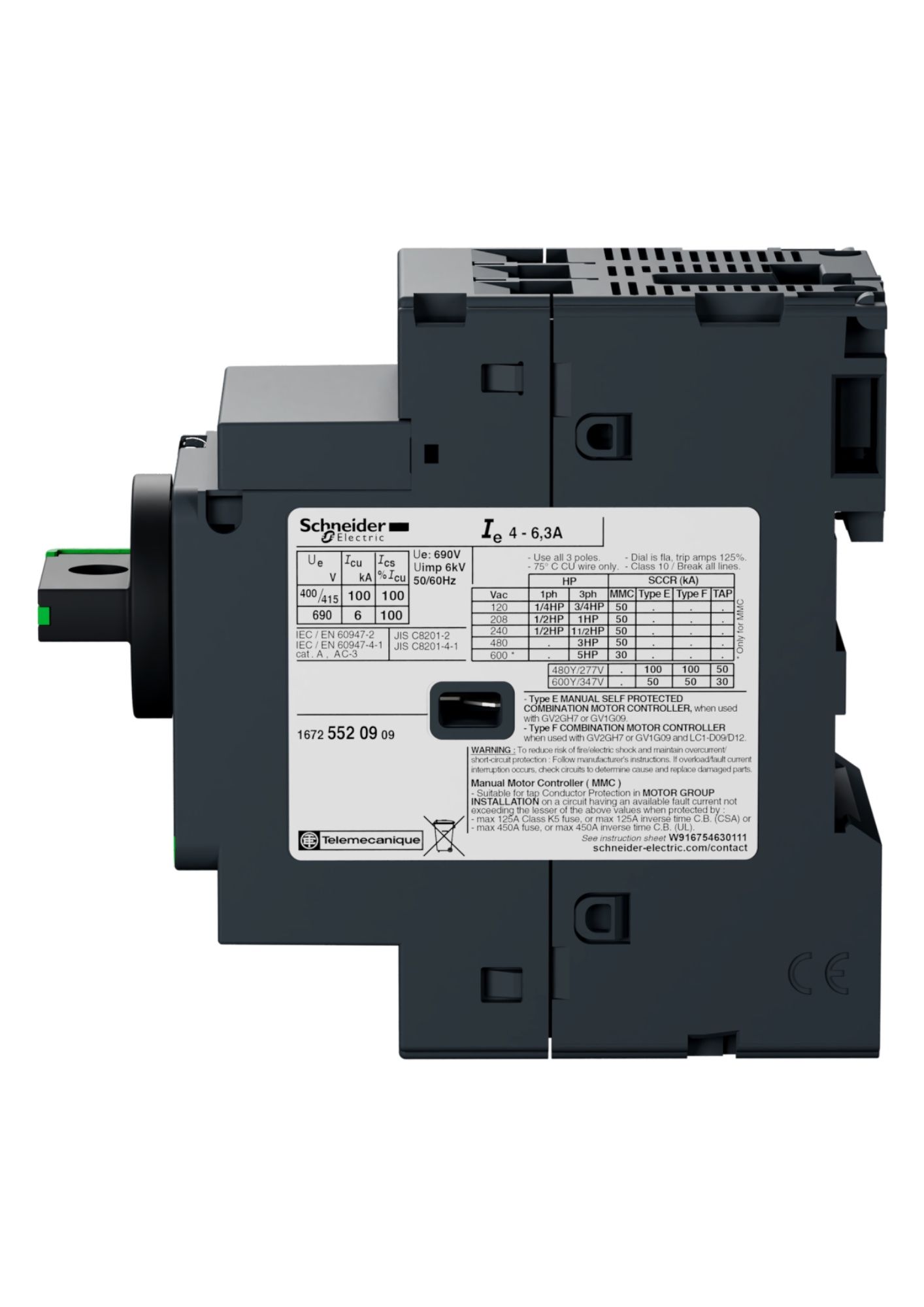

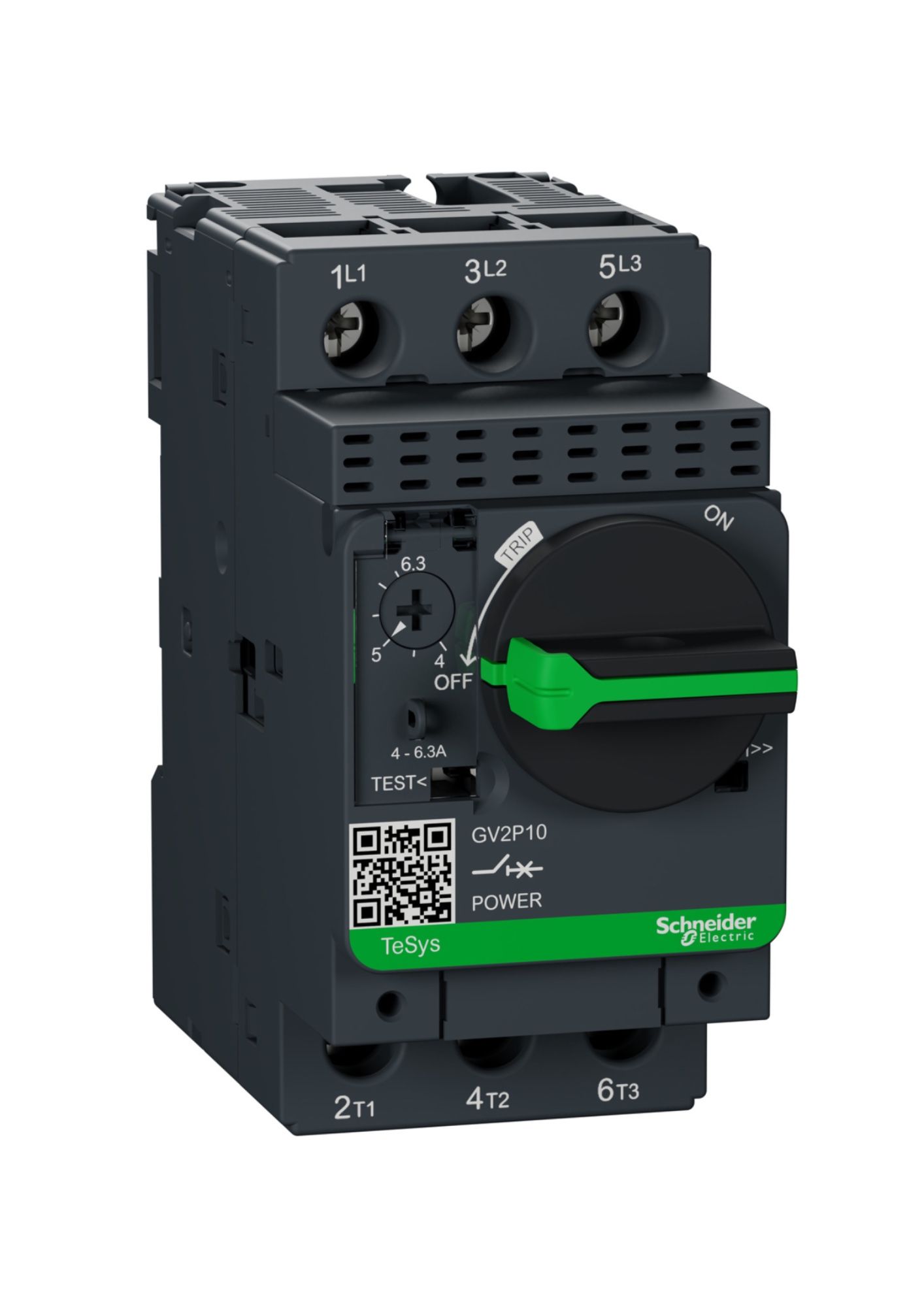

Schneider GV2P10, Motor Protection Circuit Breaker (MPCB), TeSys GV2, 3P, 4-6.3 A, thermal magnetic, screw clamp terminals
Schneider GV2P10, Motor Protection Circuit Breaker (MPCB), TeSys GV2, 3P, 4-6.3 A, thermal magnetic, screw clamp terminals Schneider GV2P10, Motor Protection Circuit Breaker (MPCB), TeSys GV2, 3P, 4-6.3 A, thermal magnetic, screw clamp terminals Schneider GV2P10, Motor Protection Circuit Breaker (MPCB), TeSys GV2, 3P, 4-6.3 A, thermal magnetic, screw clamp terminals Schneider GV2P10, Motor Protection Circuit Breaker (MPCB), TeSys GV2, 3P, 4-6.3 A, thermal magnetic, screw clamp terminals Schneider GV2P10, Motor Protection Circuit Breaker (MPCB), TeSys GV2, 3P, 4-6.3 A, thermal magnetic, screw clamp terminals

Schneider GV2P10, Motor Protection Circuit Breaker (MPCB), TeSys GV2, 3P, 4-6.3 A, thermal magnetic, screw clamp terminals

Be the first to review this product
In stock
SKU
GV2P10
Special Price ₹2,912.00 Regular Price ₹7,280.00
(18% GST Extra)
Add to Wish List
  • TeSys GV motor circuit breaker, 3 poles (3P), 6.3A/690V for 3-phase motor applications up to 2.2kW @ 400V
  • Thermal-magnetic protection with adjustable thermal setting range 4–6.3A, magnetic tripping at 13xIn
  • High breaking capacity Icu 100kA @ 400V
  • Screw clamp terminal connections and rotary knob start-stop control (100,000 cycles AC-3)
  • Certified by IEC, UL, CSA, CCC, EAC, Marine, ATEX; Green Premium compliant (RoHS/REACh)
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

Main
Range TeSys Deca
Product name TeSys GV2
Product or component type Motor circuit breaker
Device short name GV2P
Device application Motor protection
Trip unit technology Thermal-magnetic
Complementary
Poles description 3P
Network type AC
Utilisation category Category A conforming to IEC 60947-2
AC-3 conforming to IEC 60947-4-1
AC-3e conforming to IEC 60947-4-1
Network frequency 50/60 Hz conforming to IEC 60947-2
Motor power kW 2.2 kW at 400/415 V AC 50/60 Hz
3 kW at 500 V AC 50/60 Hz
4 kW at 690 V AC 50/60 Hz
Breaking capacity 100 kA Icu at 230/240 V AC
100 kA Icu at 400/415 V AC
100 kA Icu at 440 V AC
100 kA Icu at 500 V AC
6 kA Icu at 690 V AC
Rated service short-circuit capacity [Ics] 100% at 230/240 V AC
100% at 400/415 V AC
100% at 440 V AC
100% at 500 V AC
100% at 690 V AC
Control type Rotary handle
Rated current [In] 6.3 A
Thermal protection adjustment range 4…6.3 A
Magnetic tripping current 91 A
Conventional free air thermal current [Ith] 6.3 A
Rated operational voltage [Ue] 690 V AC
Rated insulation voltage [Ui] 690 V AC
Rated impulse withstand voltage [Uimp] 6 kV
Phase failure sensitivity Yes
Suitability for isolation Yes
Power dissipation per pole 2.5 W
Mechanical durability 100000 cycles
Electrical durability 100000 cycles for AC-3 at 415 V In
100000 cycles for AC-3e at 415 V In
Rated duty Uninterrupted
Connections - terminals Power circuit: screw clamp terminal 2 cables 1…6 mm² solid
Power circuit: screw clamp terminal 2 cables 1.5…6 mm² flexible without cable end
Power circuit: screw clamp terminal 2 cables 1…4 mm² flexible with cable end
Tightening torque 1.7 N.m

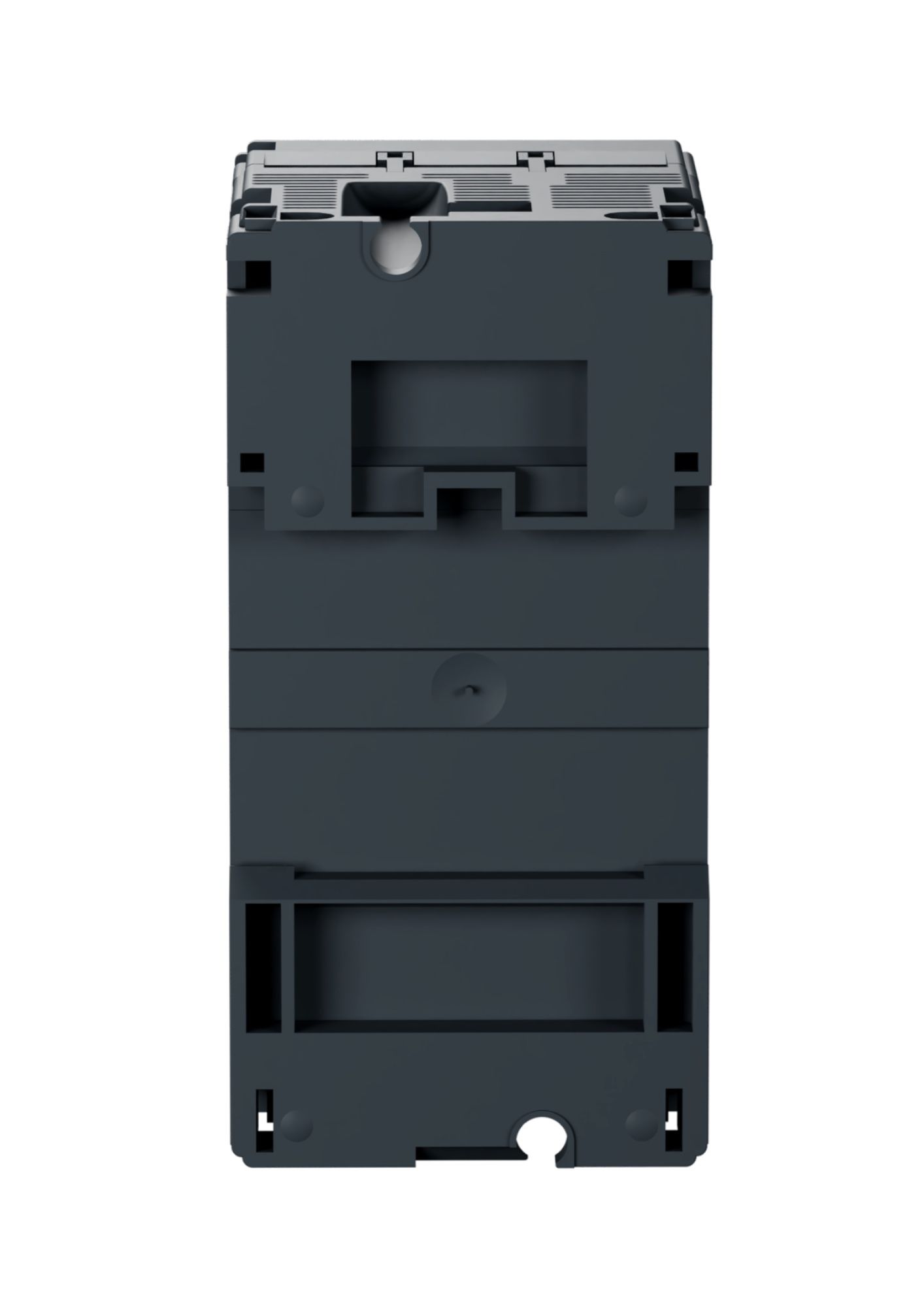

Fixing mode 35 mm symmetrical DIN rail: clipped
Panel: screwed (with 2 × M4 screws)
Mounting position Horizontal / Vertical

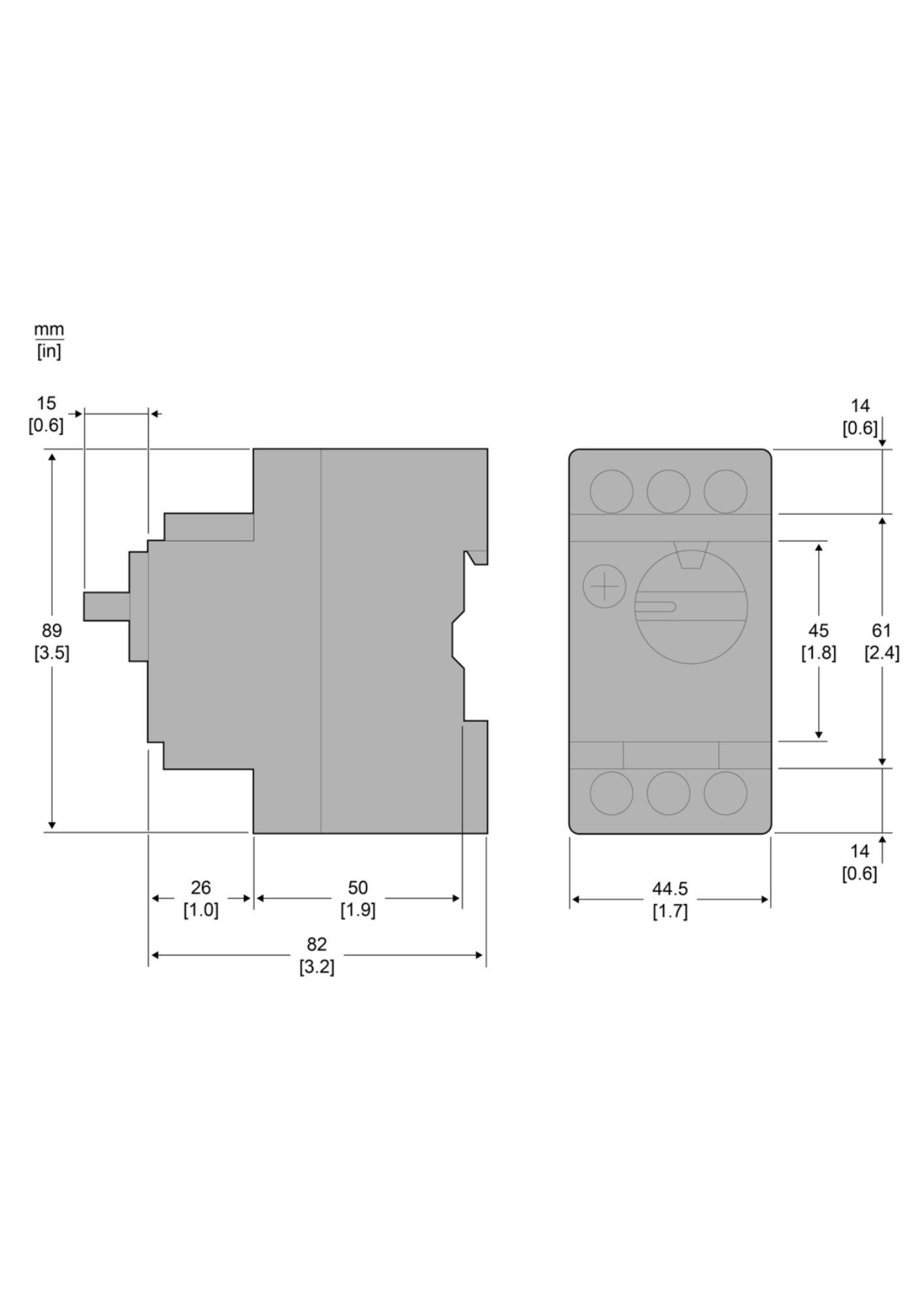

Width 45 mm
Height 89 mm
Depth 97 mm
Colour Dark grey
