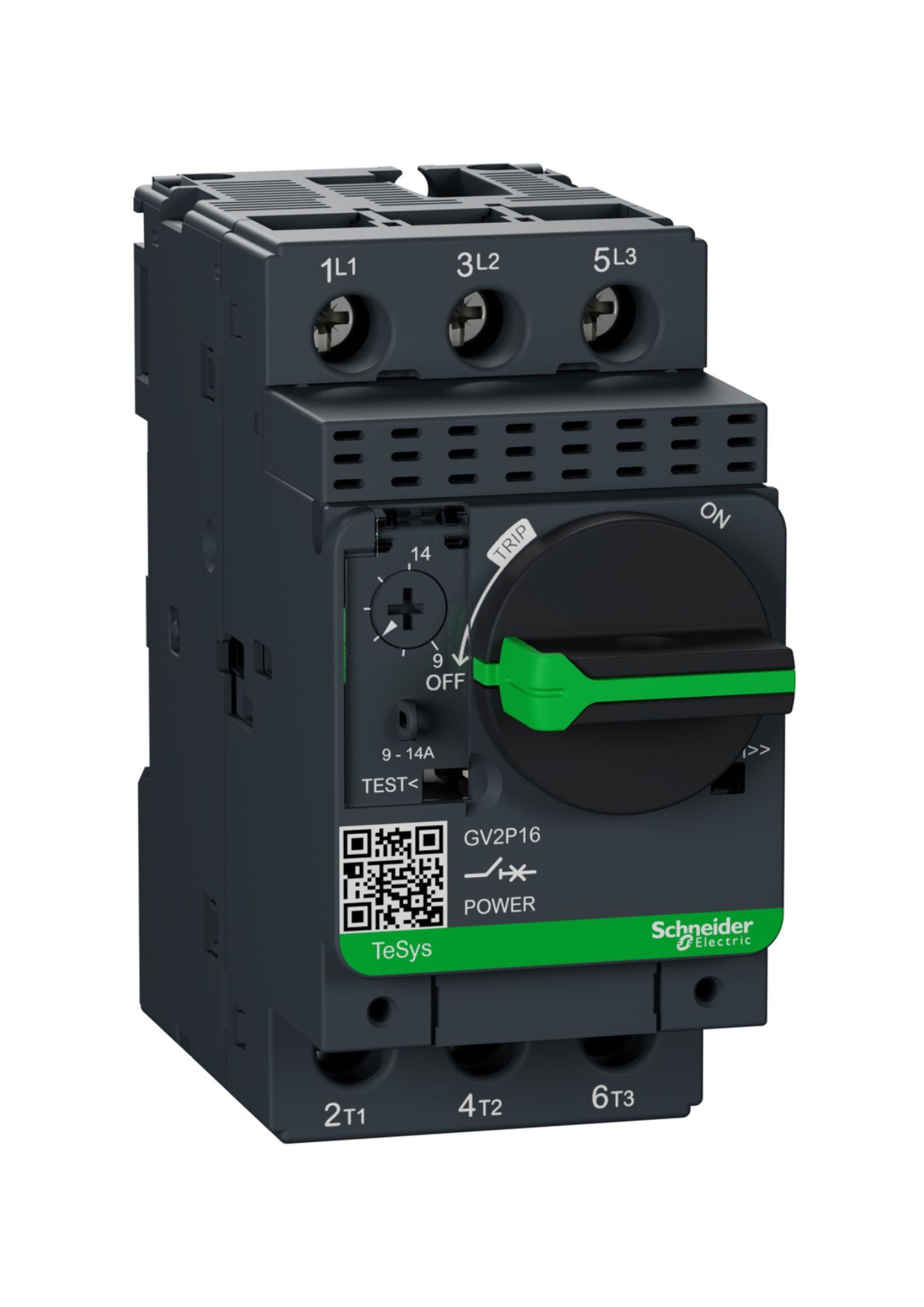

Schneider GV2P16, Motor Protection Circuit Breaker (MPCB), TeSys GV2, 3P, 9-14 A, thermal magnetic, screw clamp terminals
Schneider GV2P16, Motor Protection Circuit Breaker (MPCB), TeSys GV2, 3P, 9-14 A, thermal magnetic, screw clamp terminals Schneider GV2P16, Motor Protection Circuit Breaker (MPCB), TeSys GV2, 3P, 9-14 A, thermal magnetic, screw clamp terminals Schneider GV2P16, Motor Protection Circuit Breaker (MPCB), TeSys GV2, 3P, 9-14 A, thermal magnetic, screw clamp terminals Schneider GV2P16, Motor Protection Circuit Breaker (MPCB), TeSys GV2, 3P, 9-14 A, thermal magnetic, screw clamp terminals

Schneider GV2P16, Motor Protection Circuit Breaker (MPCB), TeSys GV2, 3P, 9-14 A, thermal magnetic, screw clamp terminals

In stock
SKU
GV2P16
Special Price ₹5,796.00 Regular Price ₹14,490.00
(18% GST Extra)
Add to Wish List
  • TeSys GV motor circuit breaker, 3 poles (3P), 14A/690V, for 3-phase motor applications 5.5kW@400V
  • Thermal-magnetic protection with thermal setting range 9–14A and magnetic tripping at 13xIn
  • High breaking capacity Icu 15kA@400V, connection by screw clamp terminals
  • Start-stop control by rotary knob, guaranteed for 100,000 cycles AC-3
  • Multi-standard certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh)
Schneider GV2P16, Motor Protection Circuit Breaker (MPCB), TeSys GV2, 3P, 9-14 A, thermal magnetic, screw clamp terminals is available to buy in increments of 1
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

Main
Range TeSys Deca
Product name TeSys GV2
Device type Motor circuit breaker
Device short name GV2P
Device application Motor protection
Trip unit technology Thermal-magnetic
Complementary
Poles description 3P
Network type AC
Utilisation category Category A conforming to IEC 60947-2, AC-3, AC-3e
Network frequency 50/60 Hz
Motor power kW 5.5 kW at 400/415 V AC
7.5 kW at 500 V AC
9 kW at 690 V AC
11 kW at 690 V AC
Breaking capacity 100 kA Icu at 230/240 V AC
100 kA Icu at 400/415 V AC
50 kA Icu at 440 V AC
42 kA Icu at 500 V AC
6 kA Icu at 690 V AC
Rated service short-circuit breaking capacity [Ics] 100% at 230/240 V AC
100% at 400/415 V AC
75% at 440 V AC
75% at 500 V AC
100% at 690 V AC
Control type Rotary handle
Rated current [In] 14 A
Thermal protection adjustment range 9…14 A
Magnetic tripping current 253.4 A
Rated operational voltage [Ue] 690 V AC
Rated insulation voltage [Ui] 690 V AC
Rated impulse withstand voltage [Uimp] 6 kV
Phase failure sensitivity Yes
Suitability for isolation Yes
Power dissipation per pole 2.5 W
Mechanical durability 100,000 cycles
Electrical durability 100,000 cycles for AC-3 & AC-3e at 415 V In
Connections - terminals Screw clamp terminal:
• 2 cables 1…6 mm² solid
• 2 cables 1.5…6 mm² flexible without cable end
• 2 cables 1…4 mm² flexible with cable end
Tightening torque 1.7 N·m
Fixing mode DIN rail (35 mm) clipped, Panel: screwed (2 x M4 screws)
Mounting position Horizontal / Vertical

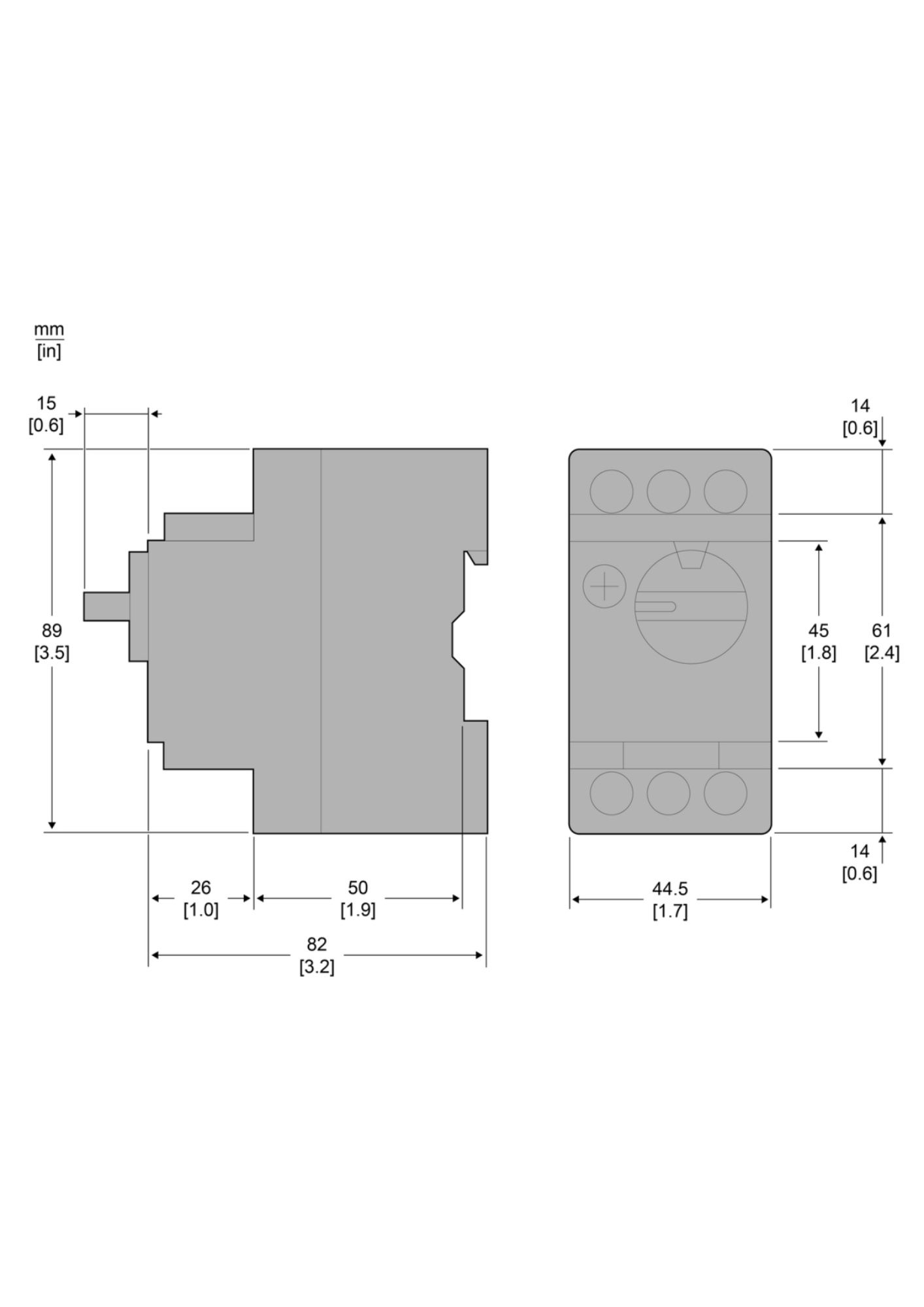

Dimensions (W × H × D) 45 × 89 × 97 mm
Colour Dark grey
