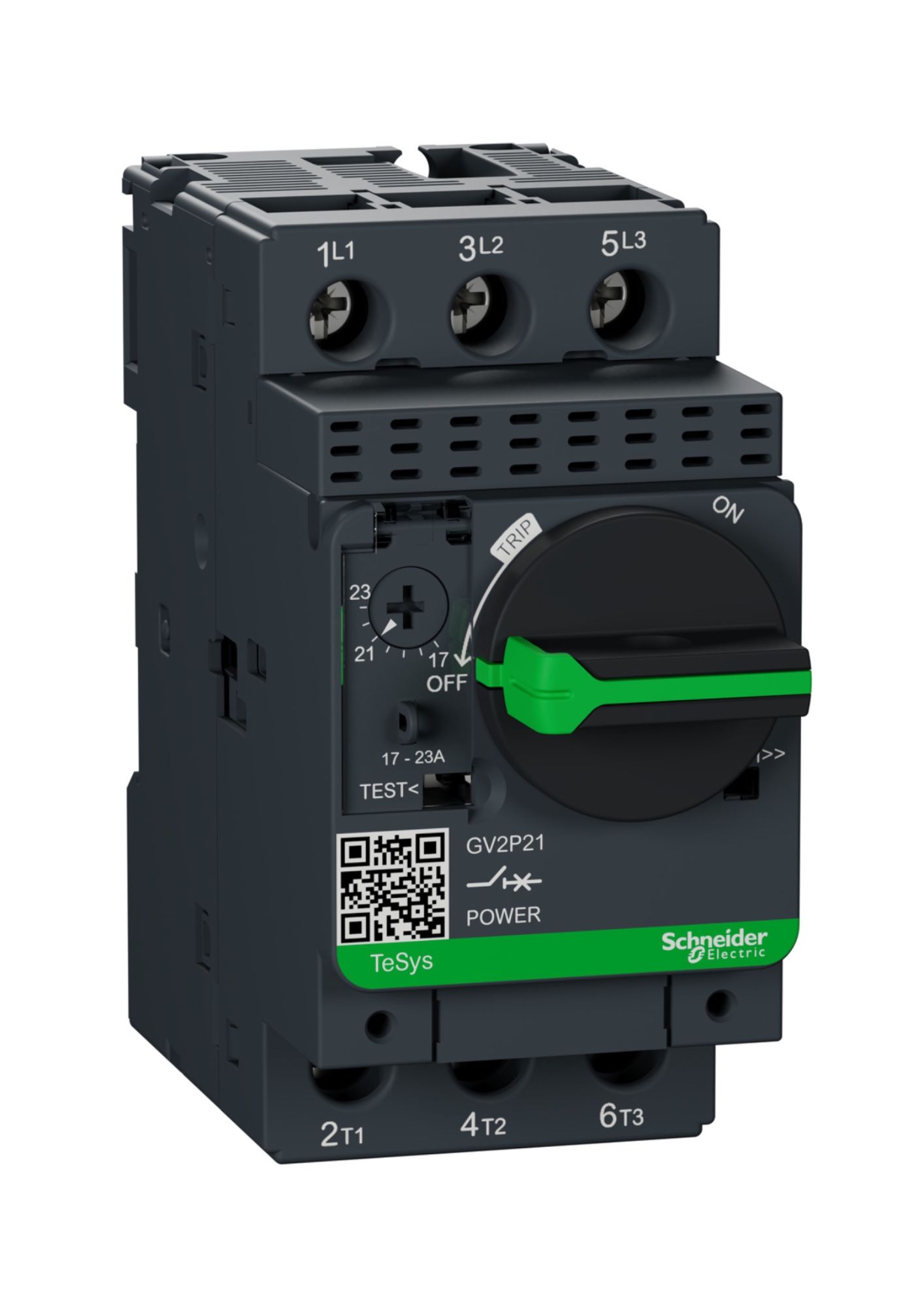

Schneider GV2P21, Motor Protection Circuit Breaker (MPCB), TeSys GV2, 3P, 17-23 A, thermal magnetic, screw clamp terminals
In stock
SKU
GV2P21
Special Price
₹4,404.00
Regular Price
₹11,010.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Main | |
|---|---|
| Range | TeSys Deca |
| Product name | TeSys GV2 |
| Product or component type | Motor circuit breaker |
| Device short name | GV2P |
| Device application | Motor protection |
| Trip unit technology | Thermal-magnetic |
| Complementary | |
| Poles description | 3P |
| Network type | AC |
| Utilisation category | Category A conforming to IEC 60947-2, AC-3 and AC-3e conforming to IEC 60947-4-1 |
| Network frequency | 50/60 Hz conforming to IEC 60947-2 |
| Motor power kW |
9 kW at 400/415 V AC 50/60 Hz 11 kW at 500 V AC 50/60 Hz 18.5 kW at 690 V AC 50/60 Hz |
| Breaking capacity |
100 kA Icu at 230/240 V AC 50 kA Icu at 400/415 V AC 20 kA Icu at 440 V AC 10 kA Icu at 500 V AC 4 kA Icu at 690 V AC |
| Rated service short-circuit breaking capacity [Ics] |
100 % at 230/240 V AC 50 % at 400/415 V AC 75 % at 440 V AC 75 % at 500 V AC 100 % at 690 V AC |
| Control type | Rotary handle |
| Rated current [In] | 23 A |
| Thermal protection adjustment range | 17…23 A |
| Magnetic tripping current | 341 A |
| Rated operational voltage [Ue] | 690 V AC 50/60 Hz |
| Rated insulation voltage [Ui] | 690 V AC 50/60 Hz |
| Rated impulse withstand voltage [Uimp] | 6 kV |
| Phase failure sensitivity | Yes |
| Suitability for isolation | Yes |
| Power dissipation per pole | 2.5 W |
| Mechanical durability | 100000 cycles |
| Electrical durability | 100000 cycles for AC-3 and AC-3e at 415 V In |
| Rated duty | Uninterrupted |
| Connections - terminals |
Power circuit: screw clamp terminal 2 cable(s) 1…6 mm² solid Power circuit: screw clamp terminal 2 cable(s) 1.5…6 mm² flexible without cable end Power circuit: screw clamp terminal 2 cable(s) 1…4 mm² flexible with cable end |
| Tightening torque | 1.7 N.m |
| Fixing mode | 35 mm DIN rail or panel screwed with 2 x M4 screws |
| Mounting position | Horizontal / Vertical |

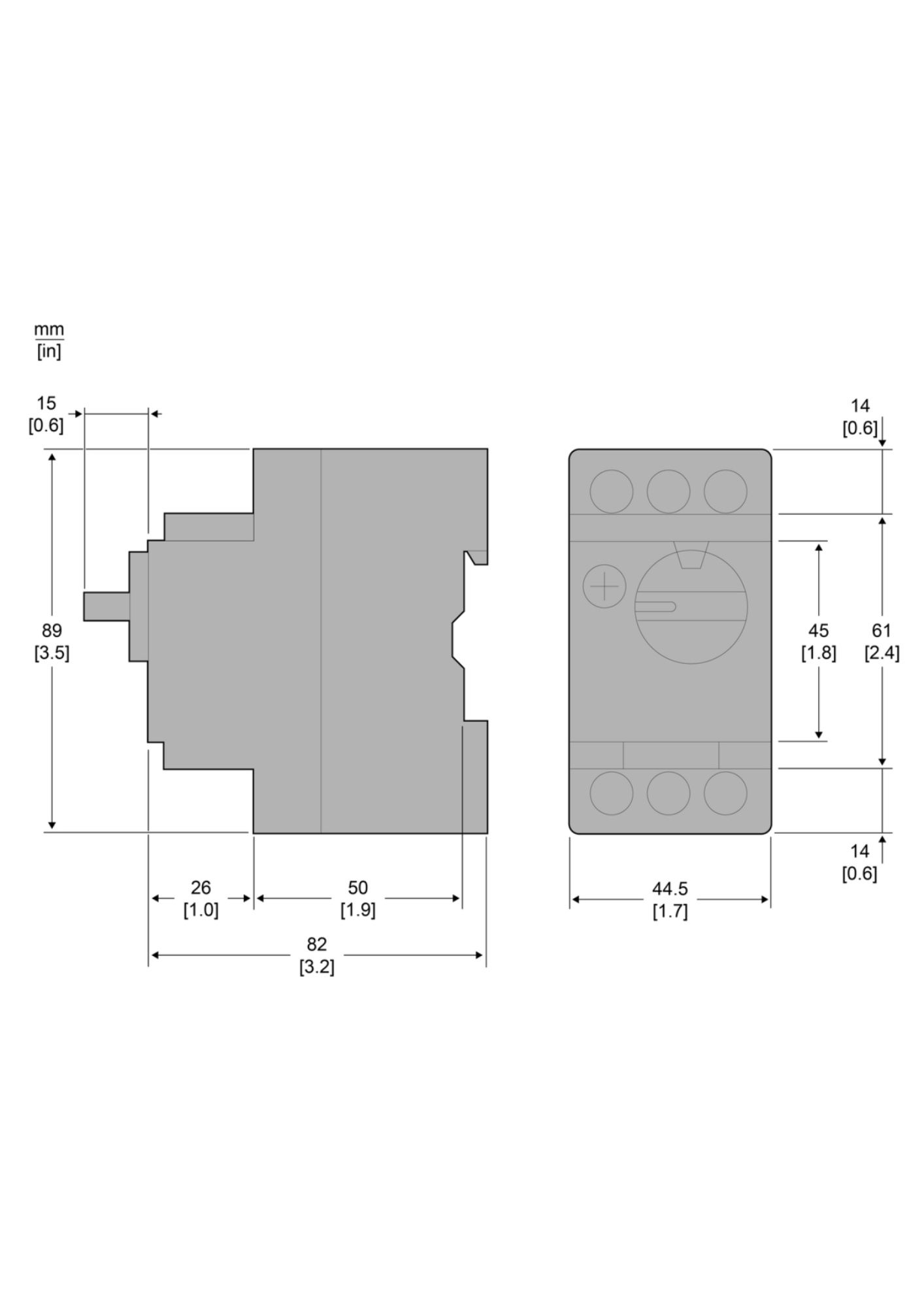

| Width | 45 mm |
| Height | 89 mm |
| Depth | 97 mm |
| Colour | Dark grey |
