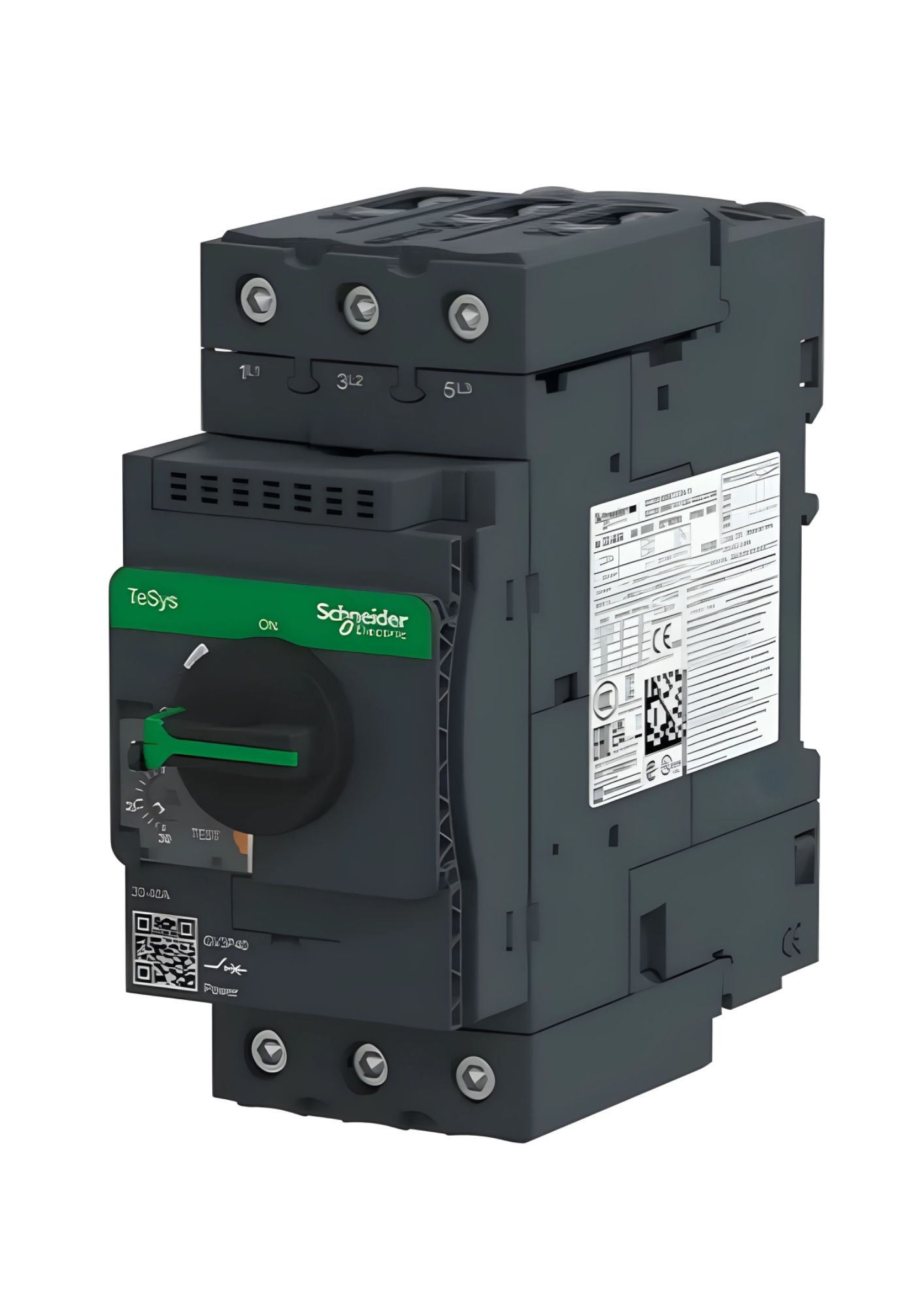

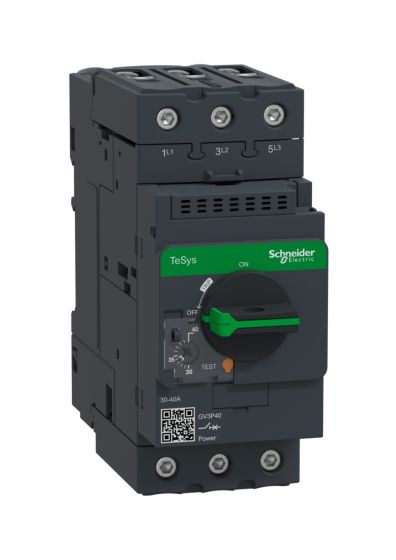

Schneider GV3P40, Motor Protection Circuit Breaker (MPCB), TeSys GV3, 3P, 30-40 A, thermal magnetic, EverLink terminals
In stock
SKU
GV3P40
Special Price
₹8,758.00
Regular Price
₹21,895.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Main | |
|---|---|
| Range | TeSys Deca |
| Product name | TeSys GV3 |
| Product or component type | Motor circuit breaker |
| Device short name | GV3P |
| Device application | Motor protection |
| Trip unit technology | Thermal-magnetic |
| Complementary | |
| Poles description | 3P |
| Network type | AC |
| Utilisation category | Category A conforming to IEC 60947-2 AC-3 conforming to IEC 60947-4-1 |
| Network frequency | 50/60 Hz conforming to IEC 60947-2 |
| Motor power kW | 18.5 kW at 400/415 V AC 50/60 Hz 22 kW at 500 V AC 50/60 Hz 37 kW at 690 V AC 50/60 Hz |
| Breaking capacity | 100 kA Icu at 230/240 V AC 50/60 Hz 50 kA Icu at 400/415 V AC 50/60 Hz 50 kA Icu at 440 V AC 50/60 Hz 12 kA Icu at 500 V AC 50/60 Hz 6 kA Icu at 690 V AC 50/60 Hz |
| Rated service short-circuit breaking capacity [Ics] | 100% at 230/240 V AC 50/60 Hz 100% at 400/415 V AC 50/60 Hz 100% at 440 V AC 50% at 500 V AC 50% at 690 V AC |
| Control type | Rotary handle |
| Rated current [In] | 40 A |
| Thermal protection adjustment range | 30…40 A conforming to IEC 60947-2 |
| Magnetic tripping current | 560 A |
| Conventional free air thermal current [Ith] | 40 A conforming to IEC 60947-2 |
| Rated operational voltage [Ue] | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| Rated insulation voltage [Ui] | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| Rated impulse withstand voltage [Uimp] | 6 kV conforming to IEC 60947-2 |
| Phase failure sensitivity | Yes conforming to IEC 60947-4-1 |
| Suitability for isolation | Yes conforming to IEC 60947-1 |
| Power dissipation per pole | 8 W |
| Mechanical durability | 50,000 cycles |
| Electrical durability | 50,000 cycles for AC-3 at 415 V In |
| Rated duty | Uninterrupted conforming to IEC 60947-4-1 |
| Tightening torque | 5 N.m - on screw clamp terminal |

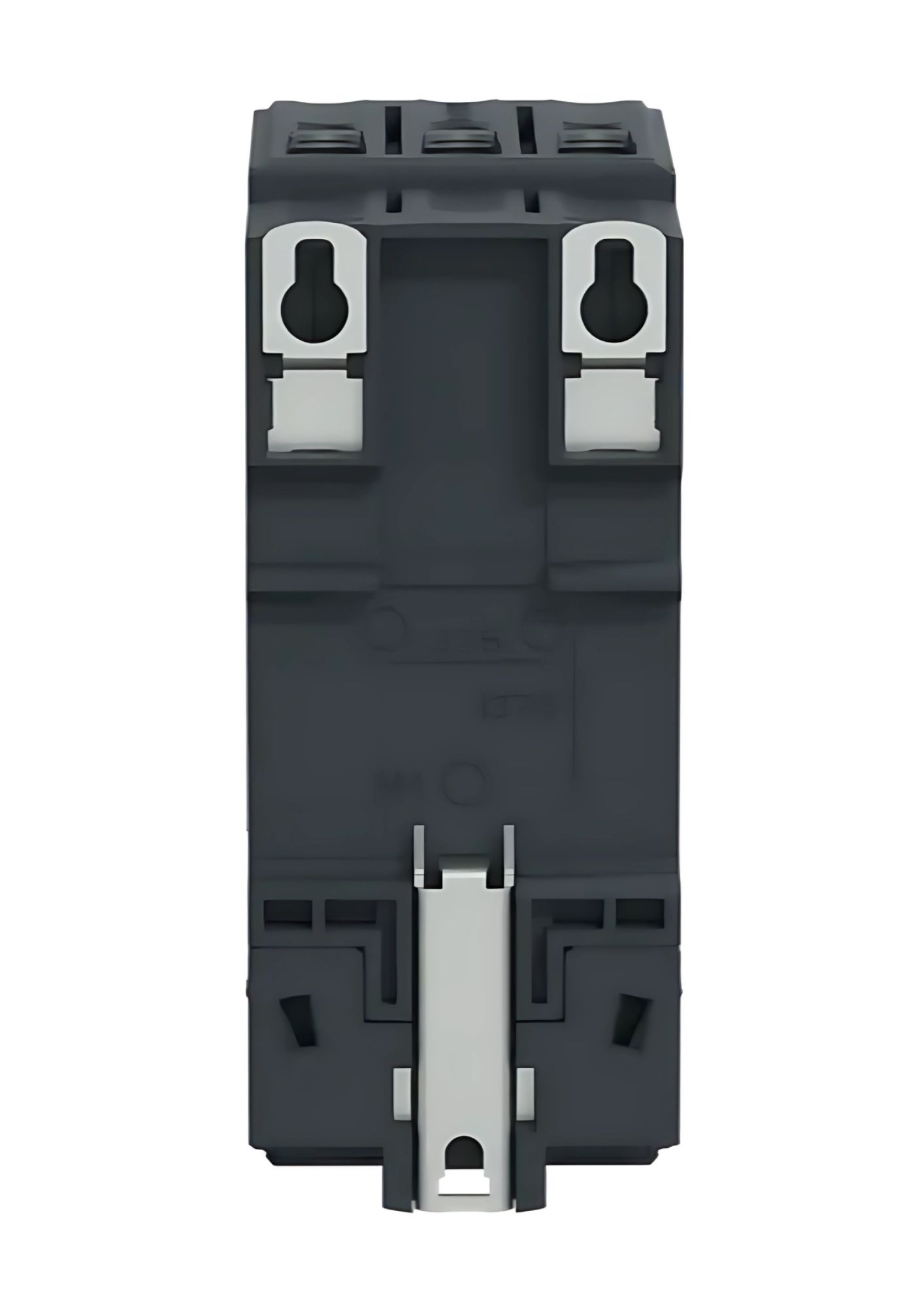

| Fixing mode | 35 mm symmetrical DIN rail: clipped Panel: screwed (with 3 x M4 screws) |
| Mounting position | Horizontal, Vertical |

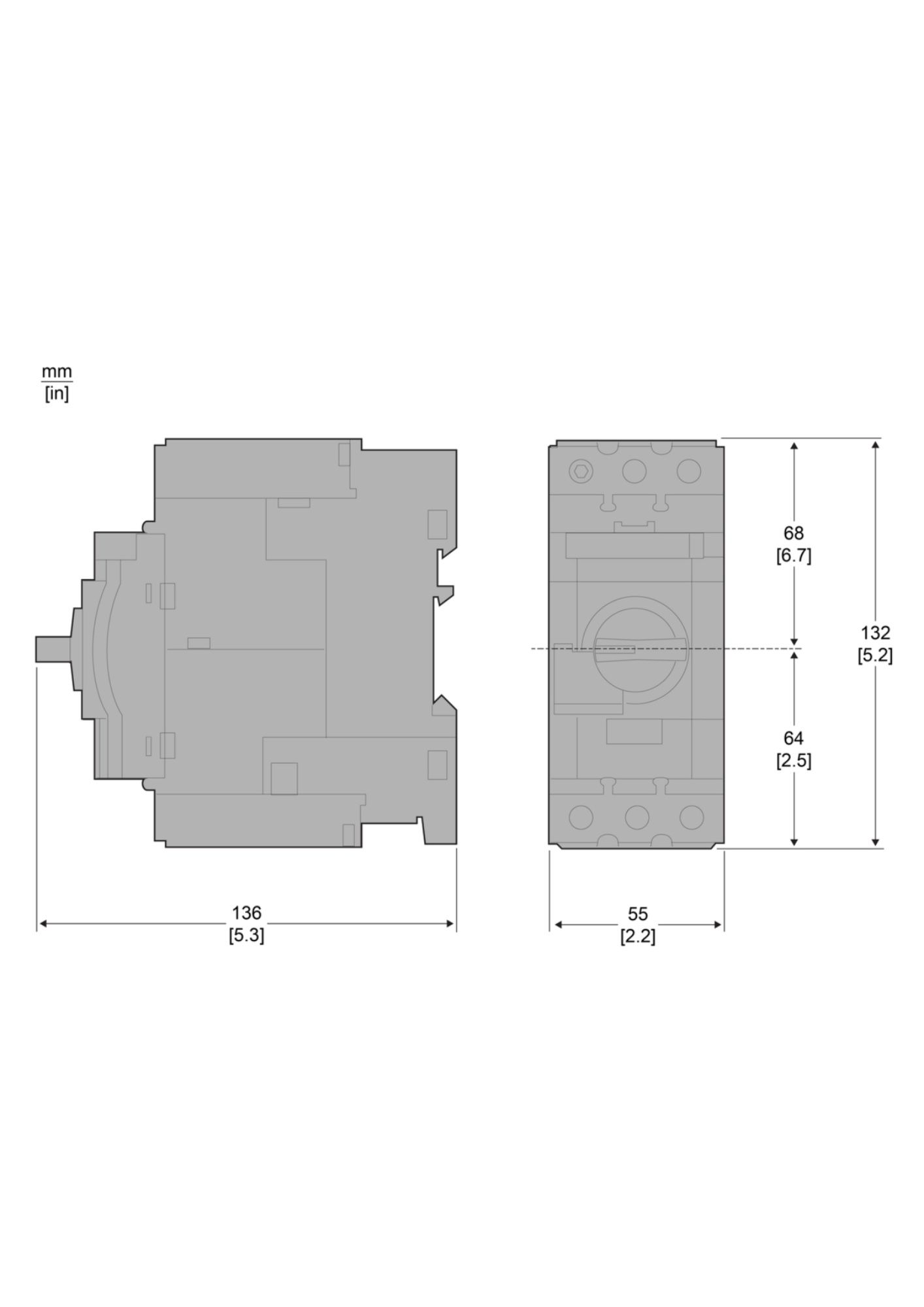

| Width | 55 mm |
| Height | 132 mm |
| Depth | 136 mm |
| Colour | Dark grey |
