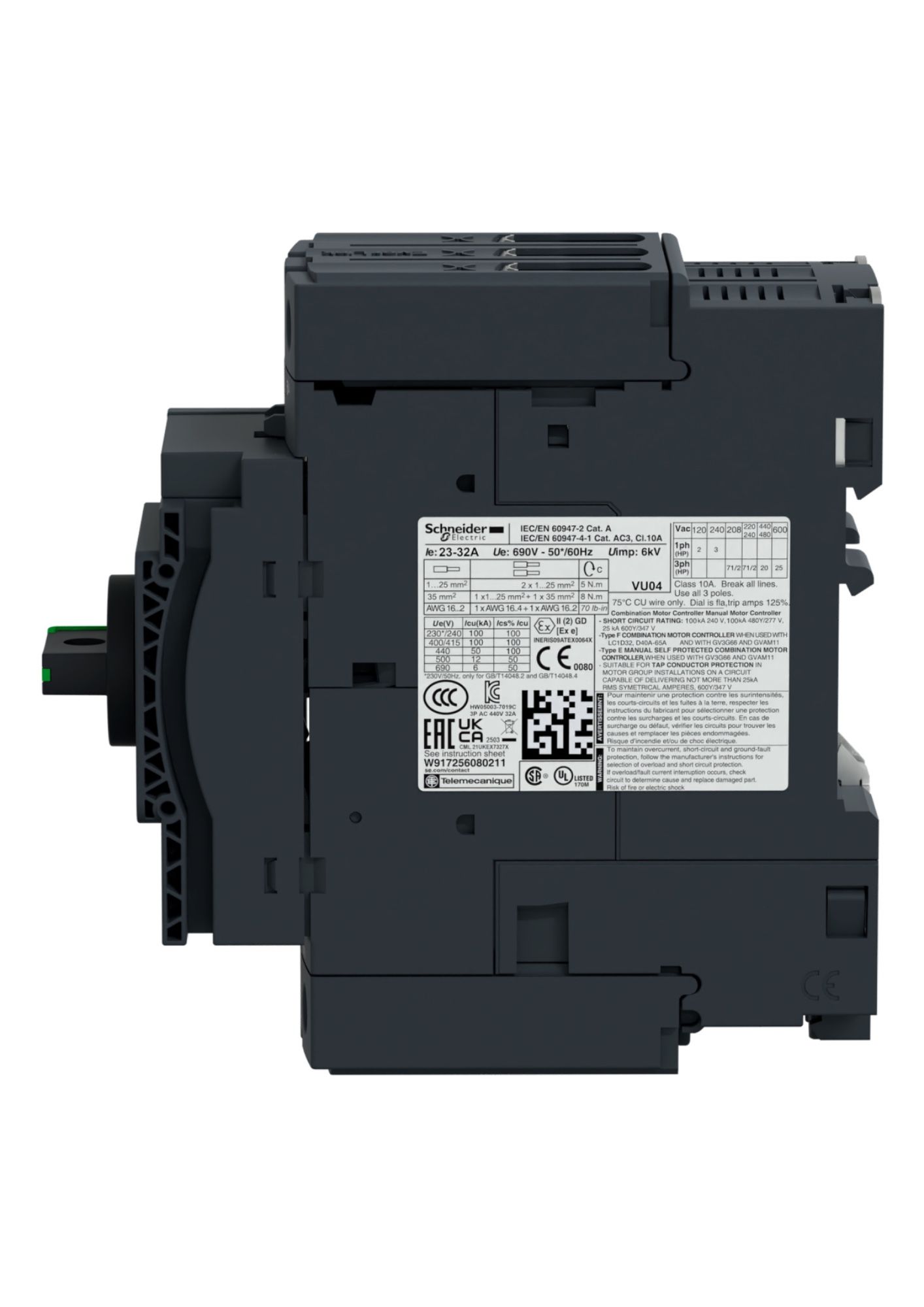

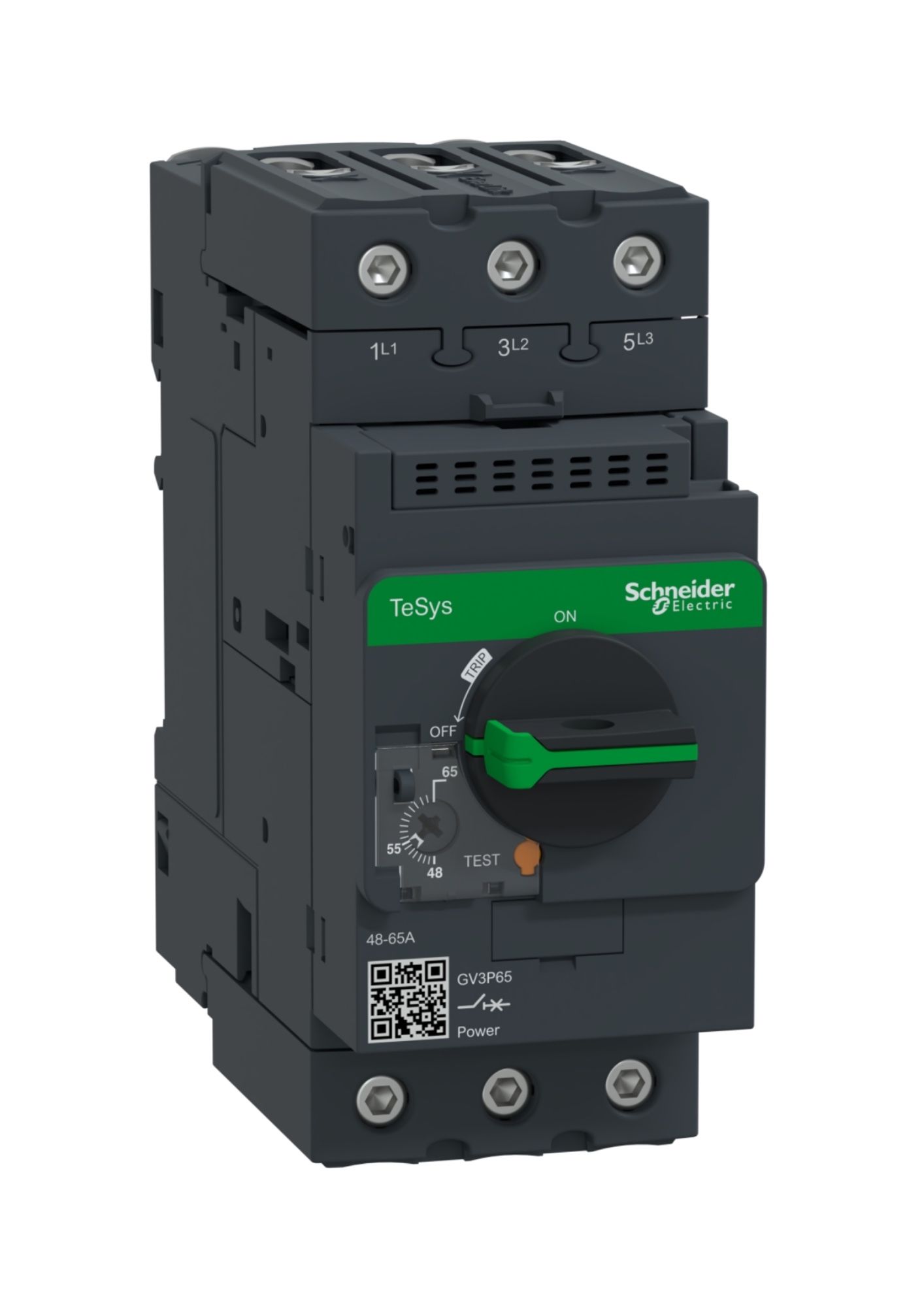

Schneider GV3P65, Motor Protection Circuit Breaker (MPCB), TeSys GV3, 3P, 48-65 A, thermal magnetic, EverLink terminals
Schneider GV3P65, Motor Protection Circuit Breaker (MPCB), TeSys GV3, 3P, 48-65 A, thermal magnetic, EverLink terminals Schneider GV3P65, Motor Protection Circuit Breaker (MPCB), TeSys GV3, 3P, 48-65 A, thermal magnetic, EverLink terminals Schneider GV3P65, Motor Protection Circuit Breaker (MPCB), TeSys GV3, 3P, 48-65 A, thermal magnetic, EverLink terminals Schneider GV3P65, Motor Protection Circuit Breaker (MPCB), TeSys GV3, 3P, 48-65 A, thermal magnetic, EverLink terminals

Schneider GV3P65, Motor Protection Circuit Breaker (MPCB), TeSys GV3, 3P, 48-65 A, thermal magnetic, EverLink terminals

Be the first to review this product
In stock
SKU
GV3P65
Special Price ₹11,138.00 Regular Price ₹27,845.00
(18% GST Extra)
Add to Wish List
  • 3-pole (3P) motor circuit breaker, 65A/690V, suitable for 3-phase motor applications up to 30kW @ 400V.
  • Thermal-magnetic protection with thermal setting range 48-65A and magnetic tripping at 15xIn.
  • High breaking capacity: Icu 50kA @ 400V.
  • Connection via Everlink BTR screw terminals; start-stop control with rotary knob guaranteed for 50,000 AC-3 cycles.
  • Multi-standard certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX) and Green Premium compliant (RoHS/REACh).
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

TeSys GV3 Specifications
Main
Range TeSys Deca
Product name TeSys GV3
Product or component type Motor circuit breaker
Device short name GV3P
Device application Motor protection
Trip unit technology Thermal-magnetic
Complementary
Poles description 3P
Network type AC
Utilisation category Category A conforming to IEC 60947-2, AC-3 conforming to IEC 60947-4-1
Network frequency 50/60 Hz conforming to IEC 60947-2
Motor power kW 30 kW at 400/415 V AC 50/60 Hz
45 kW at 500 V AC 50/60 Hz
55 kW at 690 V AC 50/60 Hz
Breaking capacity 100 kA Icu at 230/240 V AC 50/60 Hz
50 kA Icu at 400/415 V AC 50/60 Hz
50 kA Icu at 440 V AC 50/60 Hz
12 kA Icu at 500 V AC 50/60 Hz
6 kA Icu at 690 V AC 50/60 Hz
Rated service short-circuit breaking capacity [Ics] 100% at 230/240, 400/415, 440 V AC; 50% at 500, 690 V AC
Control type Rotary handle
Rated current [In] 65 A
Thermal protection adjustment range 48–65 A conforming to IEC 60947-2
Magnetic tripping current 910 A
Conventional free air thermal current [Ith] 65 A conforming to IEC 60947-2
Rated operational voltage [Ue] 690 V AC 50/60 Hz conforming to IEC 60947-2
Rated insulation voltage [Ui] 690 V AC 50/60 Hz conforming to IEC 60947-2
Rated impulse withstand voltage [Uimp] 6 kV conforming to IEC 60947-2
Phase failure sensitivity Yes conforming to IEC 60947-4-1
Suitability for isolation Yes conforming to IEC 60947-1
Power dissipation per pole 8 W
Mechanical durability 50,000 cycles
Electrical durability 50,000 cycles for AC-3 at 415 V In
Rated duty Uninterrupted conforming to IEC 60947-4-1
Tightening torque 5 N·m on screw clamp terminal

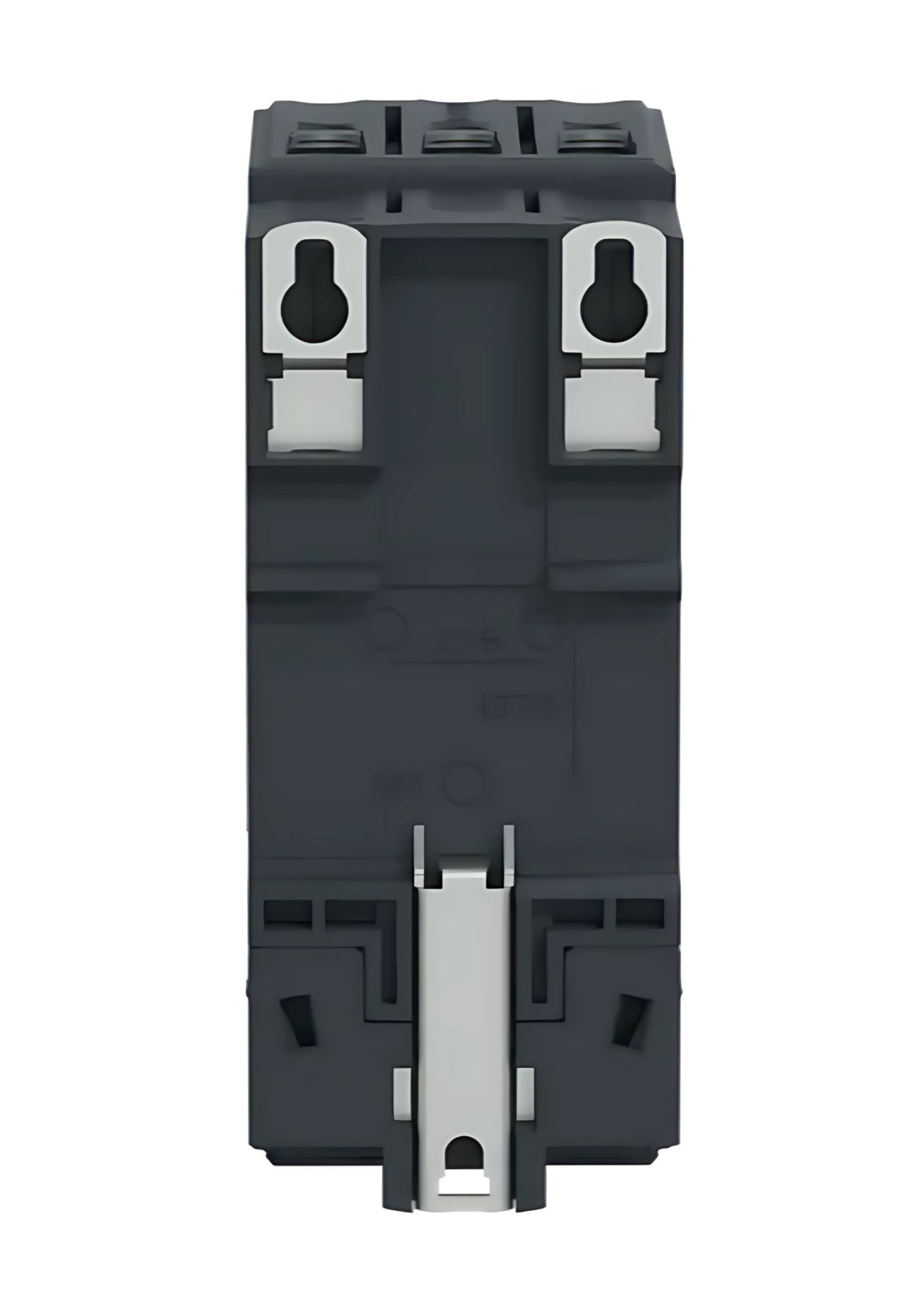

Fixing mode 35 mm symmetrical DIN rail: clipped
Panel: screwed (with 3 × M4 screws)
Mounting position Horizontal / Vertical

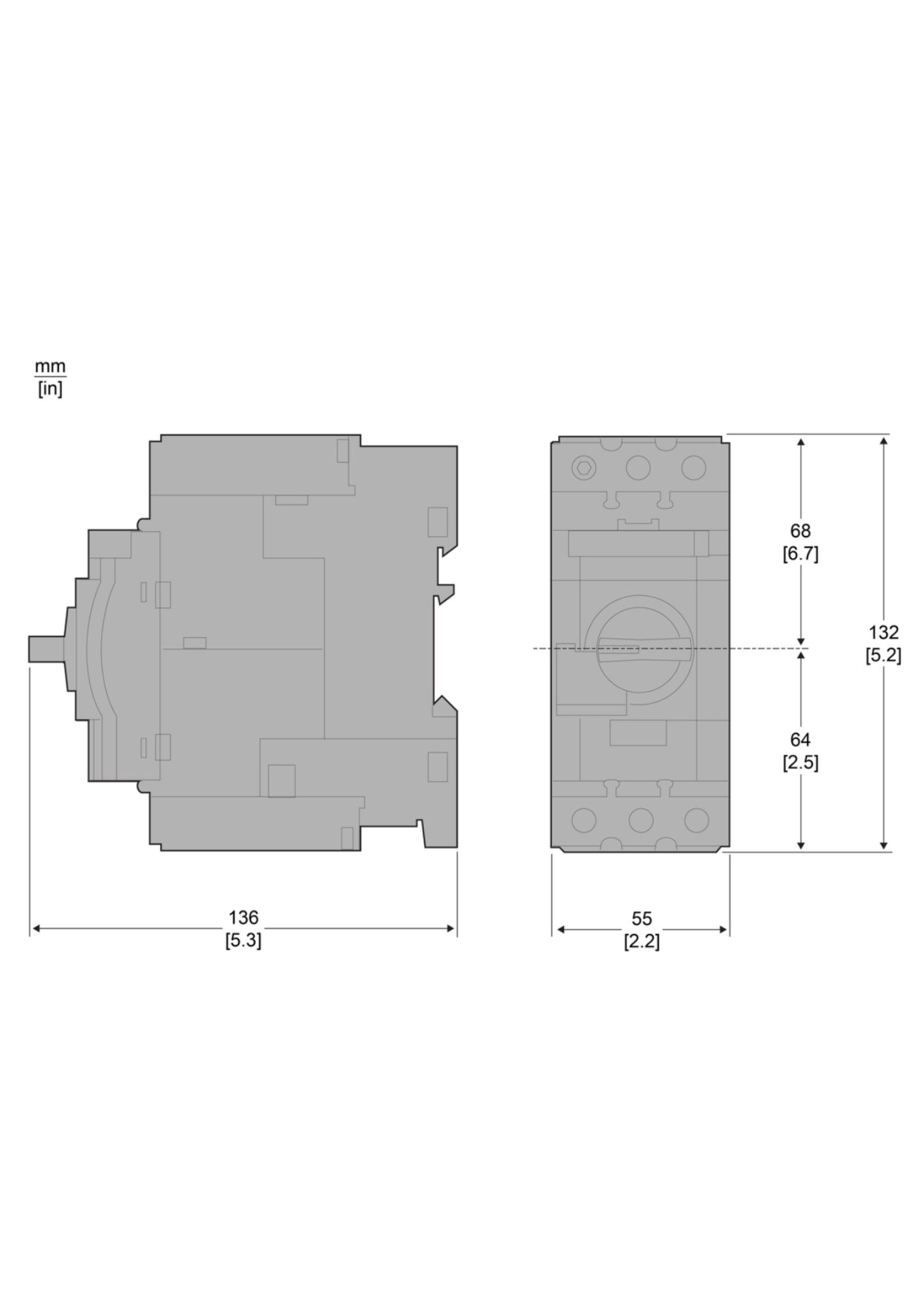

Width 55 mm
Height 132 mm
Depth 136 mm
Colour Dark grey
Product Variants

No specifications available for this product.

Reviews
Write Your Own Review
You're reviewing:Schneider GV3P65, Motor Protection Circuit Breaker (MPCB), TeSys GV3, 3P, 48-65 A, thermal magnetic, EverLink terminals
Your Rating
Downloads
document GV3P65 Datasheet (519.99 kB)
document GV3P65 Instruction Manual (2.78 MB)
