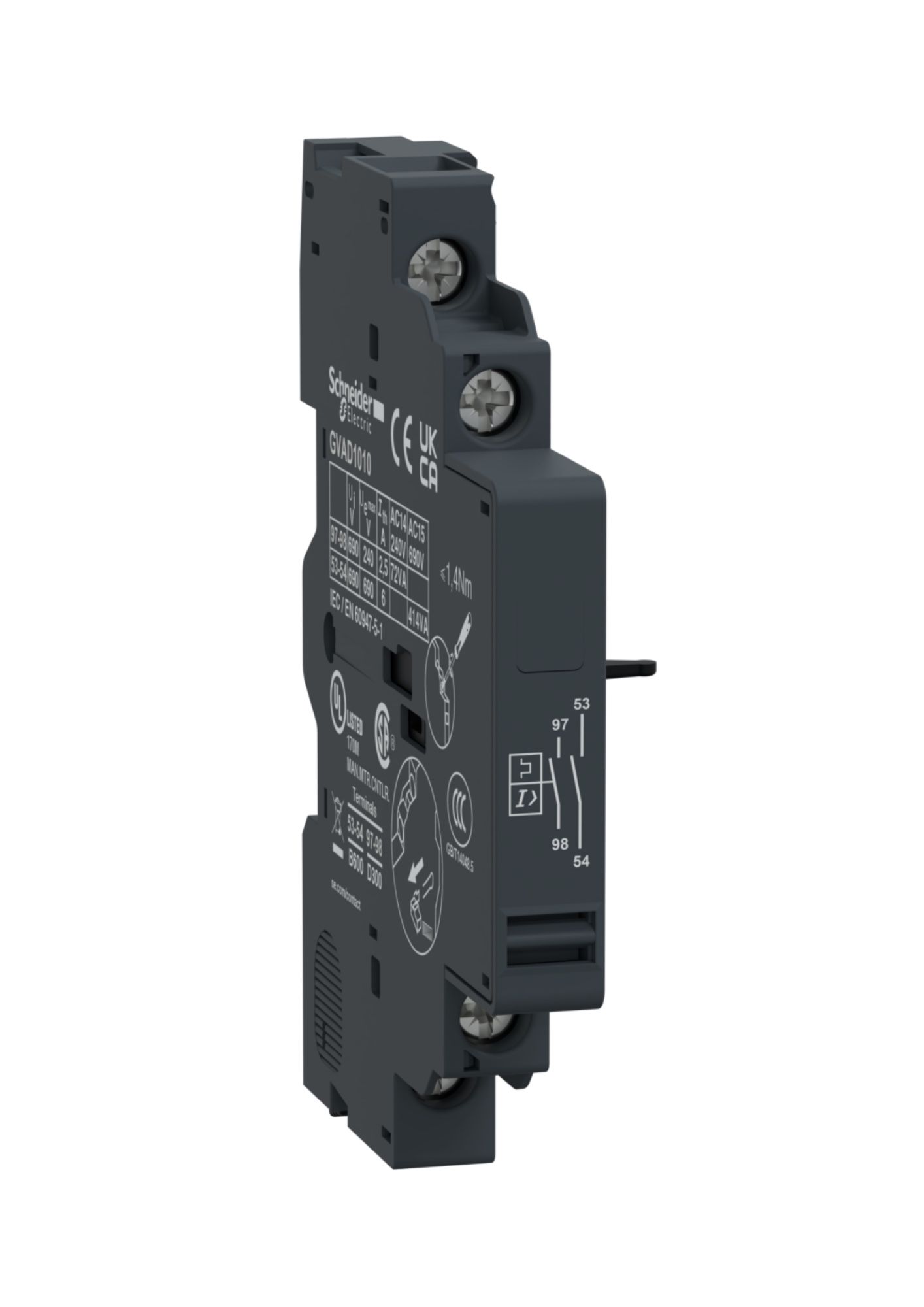

Schneider GVAD1010, TeSys GV2 & GV3 - auxiliary contact - 1 NO + 1 NO (fault)
In stock
SKU
GVAD1010
Special Price
₹1,048.00
Regular Price
₹2,620.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Main | |
|---|---|
| Range | TeSys, TeSys Deca |
| Device short name | GVAD |
| Product or component type | Auxiliary contact block |
| Product compatibility | GV2L, GV2P, GV2RT, GV3L, GV2LE, GV3P, GV2ME |
| Mounting location | Left side |
| Auxiliary contacts operation | Fault signal 1 NO |
| Pole contact composition | 2 NO |
| Complementary | |
| [Ui] rated insulation voltage | 690 V IEC 60947-1, 300 V UL 508, 300 V CSA C22.2 No 14 |
| [Ue] rated operational voltage | 48...690 V AC, 24...240 V DC |
| [Ith] conventional free air thermal current | 6 A (2.5 A for fault signalling) |
| Mechanical durability | 100000 cycles |
| Minimum switching current | 5 mA |
| Minimum switching voltage | 17 V |
| Protection type | GB2CB... circuit breaker, GG fuse 10 A |
| Rated operational power (VA) | 300 VA at 48 V AC-15, 414 VA at 690 V AC-15, 500 VA at 110…127 V AC-15, 500 VA at 500 V AC-15, 650 VA at 440 V AC-15, 720 VA at 230…240 V AC-15, 850 VA at 380…415 V AC-15, 36 VA at 24 V AC-14, 48 VA at 48 V AC-14, 72 VA at 110…127 V AC-14 |
| Rated operational power (W) | 120 W at 240 V DC-13, 140 W at 110 V DC-13, 140 W at 24 V DC-13, 180 W at 60 V DC-13, 240 W at 48 V DC-13, 15 W at 48 V DC-13, 24 W at 24 V DC-13, 9 W at 60 V DC-13 |
| Tightening torque | 1.4 N·m on screw clamp terminals |

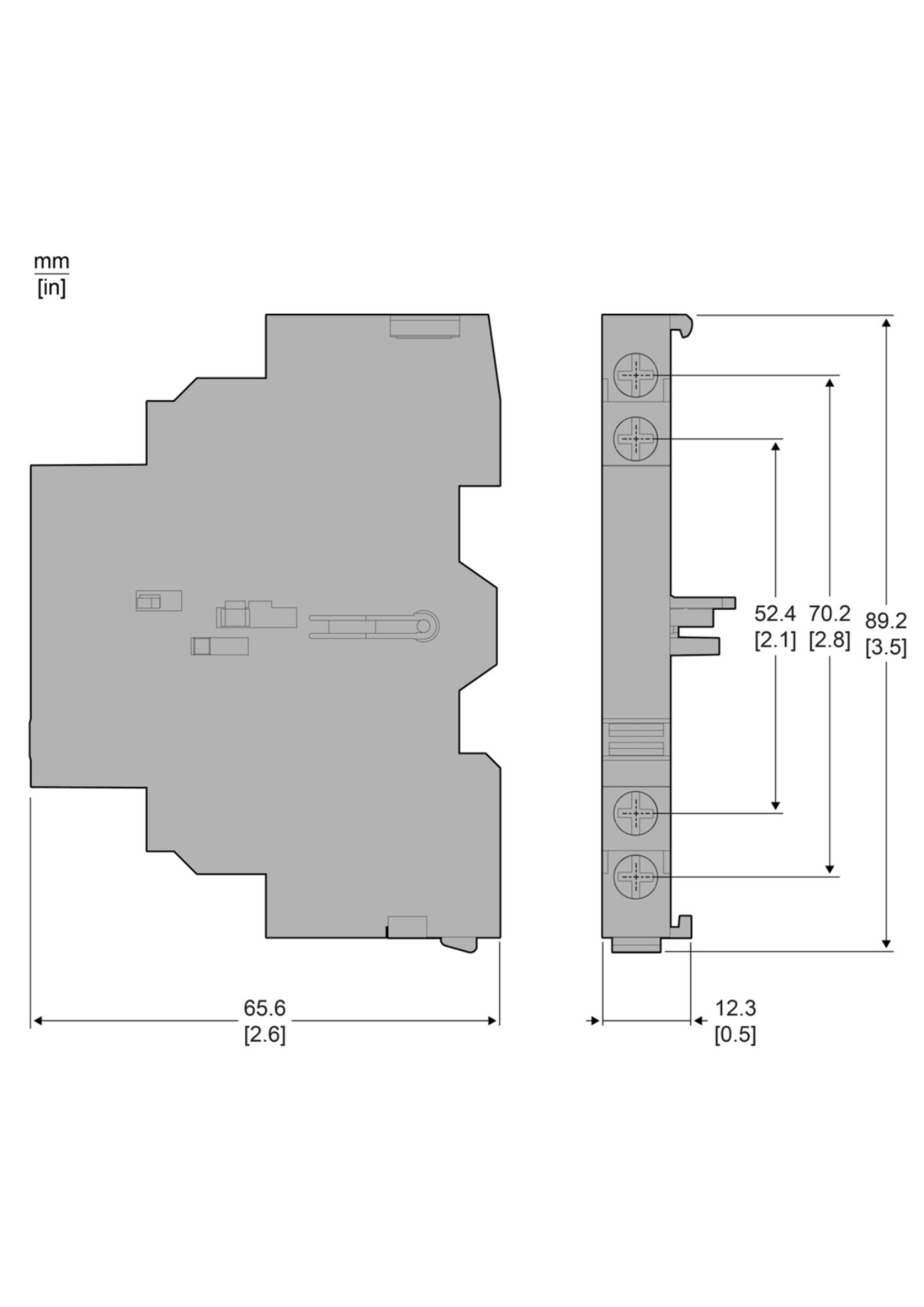

| Dimensions (H x W x D) | 89 mm x 9.3 mm x 66 mm |
| Colour | Dark grey |
