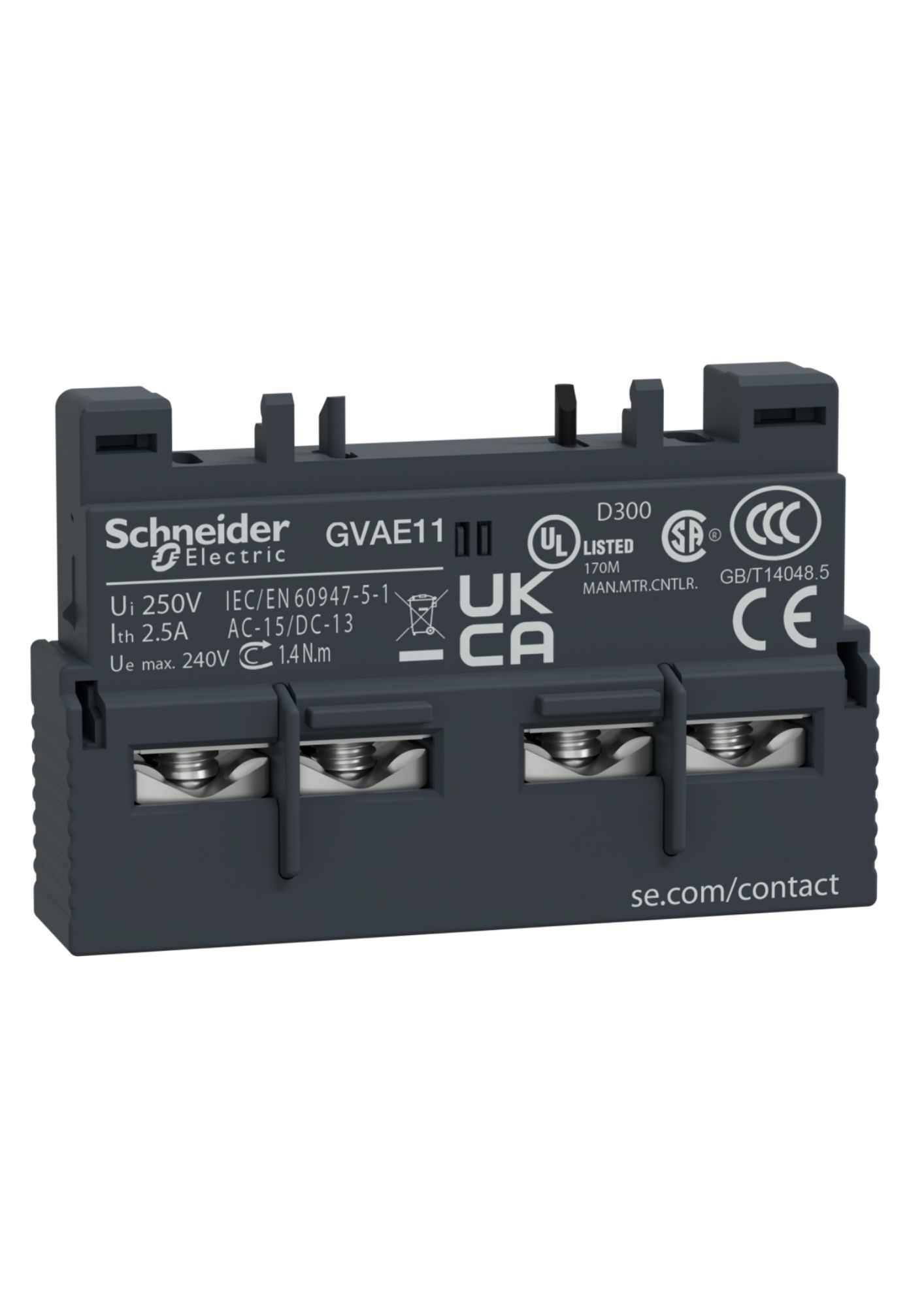

Schneider GVAE11, TeSys GV2 & GV3 - auxiliary contact - 1 NO + 1 NC
In stock
SKU
GVAE11
Special Price
₹666.00
Regular Price
₹1,665.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Main | |
|---|---|
| Range | TeSys Deca |
| Device short name | GVAE |
| Product or component type | Auxiliary contact block |
| Product compatibility | GV2P, GV2RT, GV2ME, GV3L, GV2LE, GV3P, GV2L |
| Mounting location | Front side |
| Pole contact composition | 1 NO + 1 NC |
| Quantity per set | Set of 10 |
| Complementary | |
| [Ui] rated insulation voltage | 300 V (UL 508, CSA C22.2 No 14), 250 V (IEC 60947-1) |
| [Ue] rated operational voltage | 24...240 V AC, 24...60 V DC |
| [Ith] conventional free air thermal current | 2.5 A |
| Mechanical durability | 100000 cycles |
| Minimum switching current | 5 mA |
| Minimum switching voltage | 17 V |
| Protection type | GG fuse 10 A, GB2CB06 circuit breaker 10 A |
| Rated operational power in VA |
120 VA at 110…120 V AC-15 (100000 cycles) 120 VA at 230…240 V AC-15 (100000 cycles) 48 VA at 24 V AC-15 (100000 cycles) 60 VA at 48 V AC-15 (100000 cycles) |
| Rated operational power in W |
15 W at 48 V DC-13 (100000 cycles) 24 W at 24 V DC-13 (100000 cycles) 9 W at 60 V DC-13 (100000 cycles) |
| Tightening torque | 1.4 N·m (screw clamp terminals) |

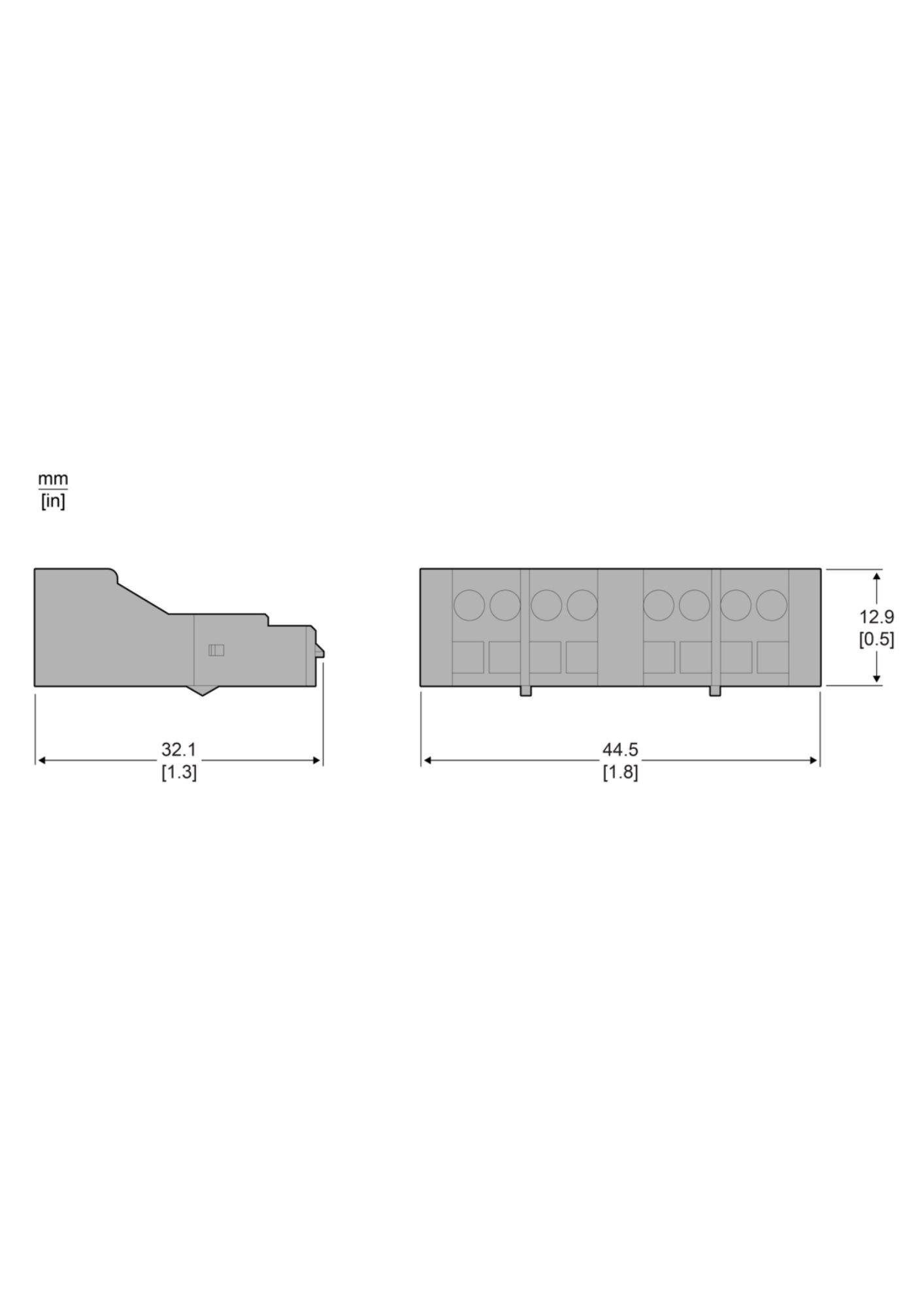

| Height | 11 mm |
| Width | 45 mm |
| Depth | 29 mm |
