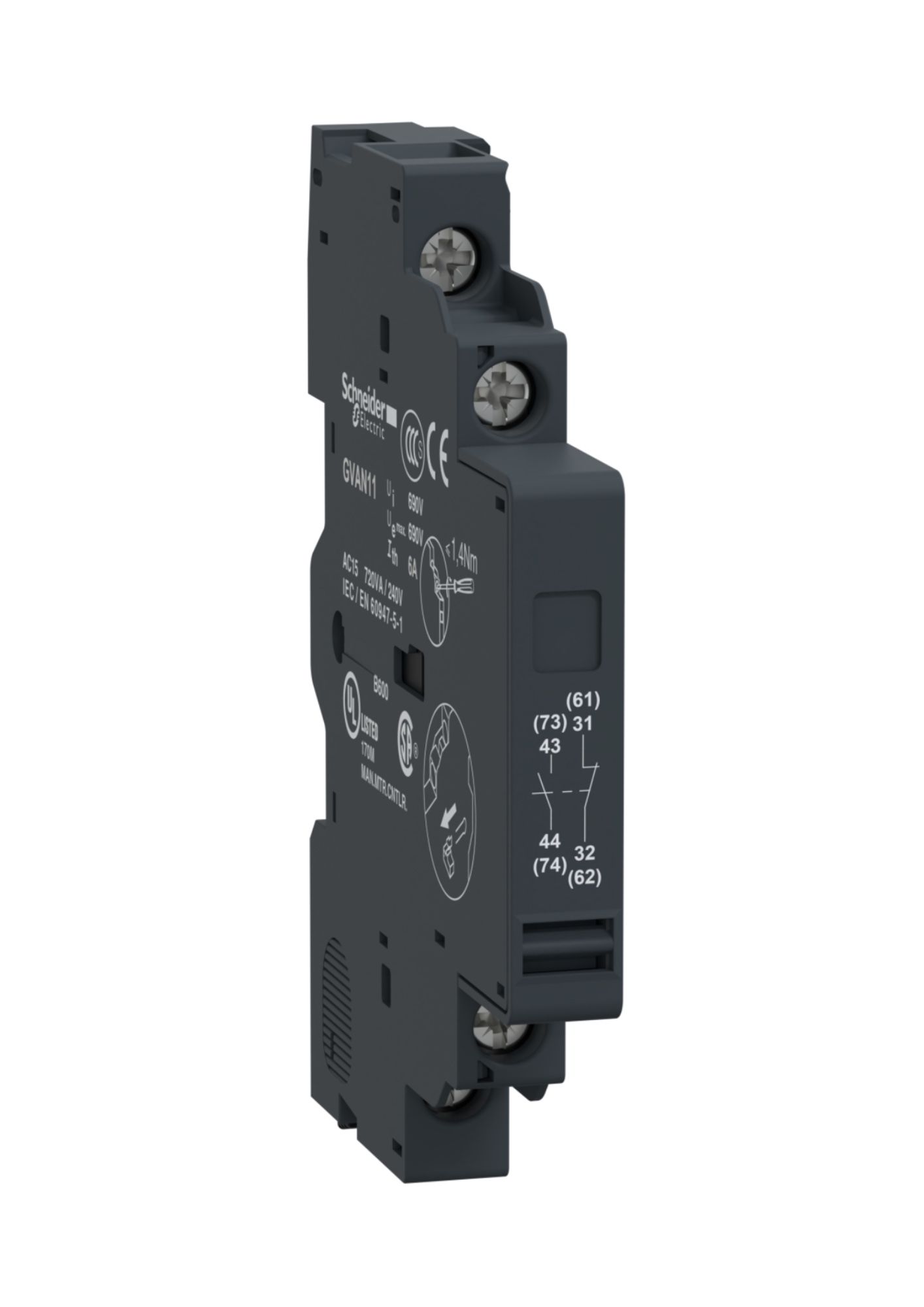

Schneider GVAN11, TeSys GV2 & GV3 - auxiliary contact block - 1 NO + 1 NC
In stock
SKU
GVAN11
Special Price
₹804.00
Regular Price
₹2,010.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Main | |
|---|---|
| Range | TeSys, TeSys Deca |
| Device short name | GVAN |
| Product or component type | Auxiliary contact block |
| Product compatibility | GV2ME, GV2RT, GV2L, GV3P, GV3L, GV2LE, GV2P |
| Mounting location | Left side |
| Pole contact composition | 1 NO + 1 NC |
| Complementary | |
| [Ui] Rated insulation voltage | 600 V UL 508, 690 V IEC 60947-1, 600 V CSA C22.2 No 14 |
| [Ue] Rated operational voltage | 48…690 V AC, 24…240 V DC |
| [Ith] Conventional free air thermal current | 6 A |
| Mechanical durability | 100,000 cycles |
| Minimum switching current | 5 mA |
| Minimum switching voltage | 17 V |
| Protection type | GB2CB... circuit breaker, GG fuse 10 A |
| Rated operational power in VA | 300 VA at 48 V AC-15, 414 VA at 690 V AC-15, 500 VA at 110–127 V AC-15, 500 VA at 500 V AC-15, 650 VA at 440 V AC-15, 720 VA at 230–240 V AC-15, 850 VA at 380–415 V AC-15 |
| Rated operational power in W | 120 W at 240 V DC-13, 140 W at 110 V DC-13, 140 W at 24 V DC-13, 180 W at 60 V DC-13, 240 W at 48 V DC-13 |
| Tightening torque | 1.4 N.m on screw clamp terminals |

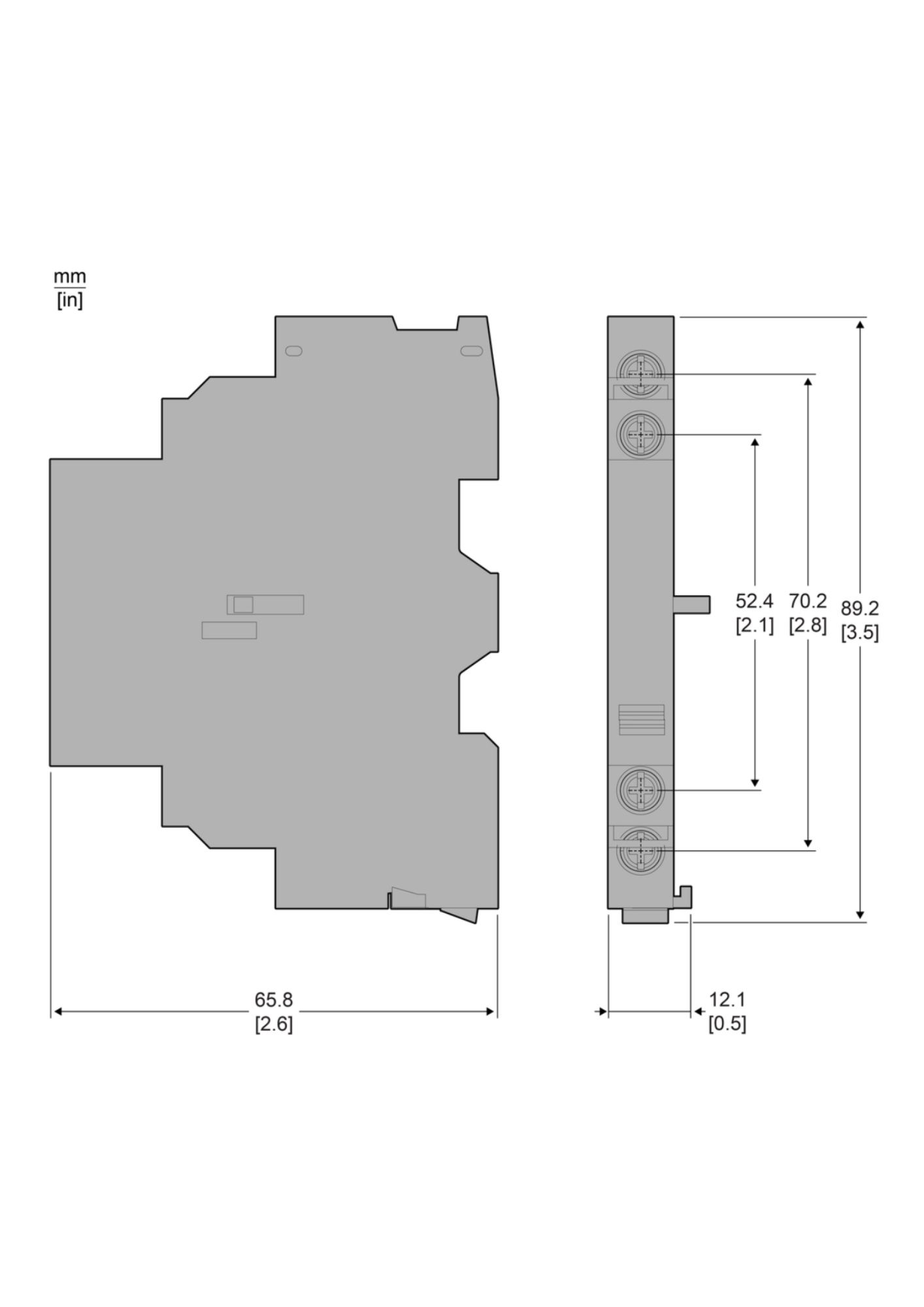

| Height | 89 mm |
| Width | 9.3 mm |
| Depth | 66 mm |
| Colour | Dark grey |
