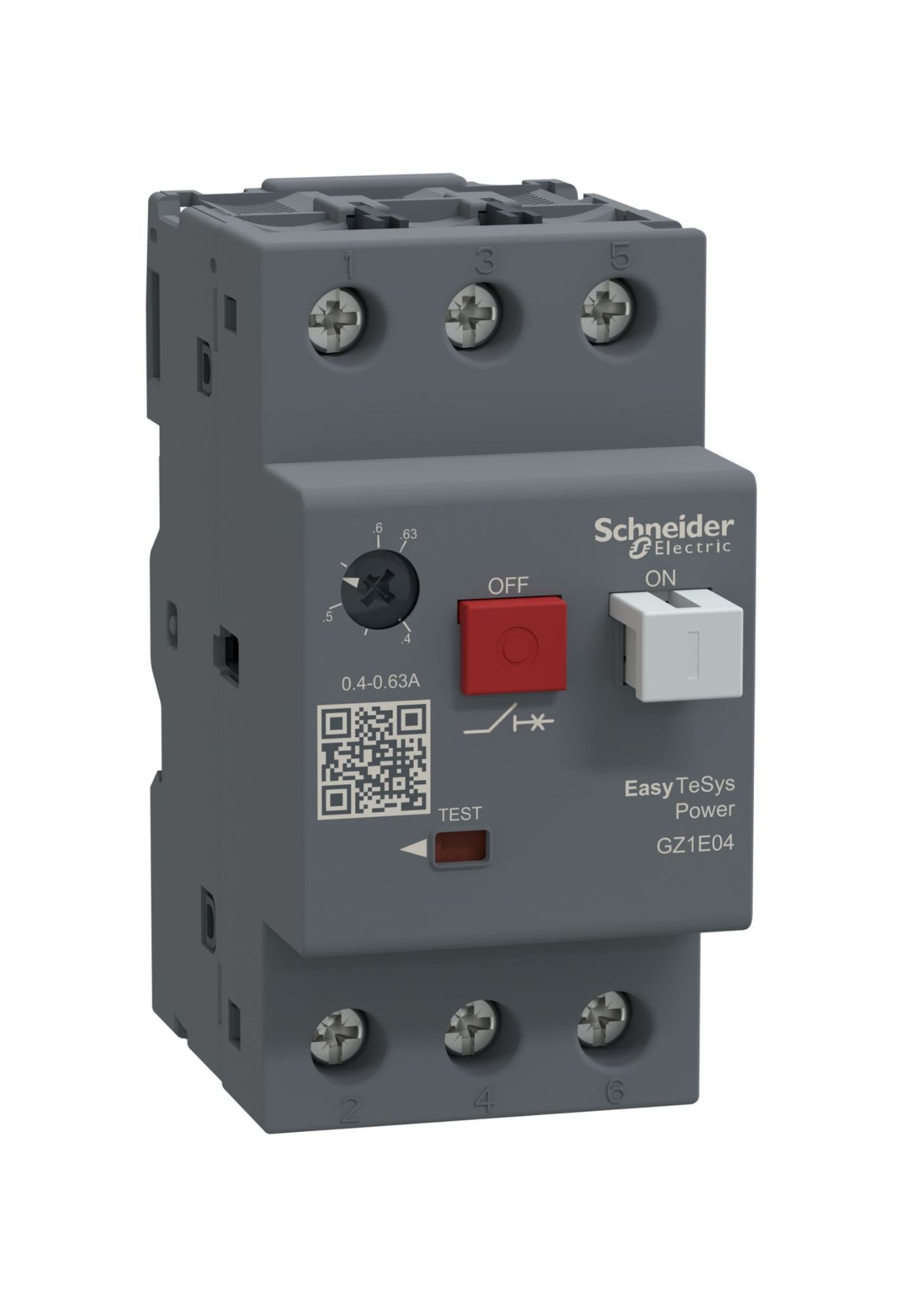

Schneider GZ1E04, Motor Circuit Breaker, Easy TeSys Power, GZ1E, AC-3, 3 Pole , 0.40~0.63A, Thermal Magnetic Trip
In stock
SKU
GZ1E04
Special Price
₹2,122.30
Regular Price
₹5,585.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Main | |
|---|---|
| Range | Easy TeSys |
| Range of product | Easy TeSys Power |
| Product or component type | Circuit breaker |
| Device short name | GZ1E |
| Device application | Motor |
| Trip unit technology | Thermal-magnetic |
| Suitability for isolation | Yes, conforming to IEC 60947-1 appendix 7.1.6 |
| Colour | Grey (RAL 7011) |
| Complementary | |
| Poles description | 3P |
| Network type | AC |
| Utilisation category | AC-3 |
| Network frequency | 50/60 Hz conforming to IEC 60947-2 |
| Mounting mode | By clips / By screws |
| Mounting support | Rail |
| Mounting position | Any position |
| Motor power kW | 0.37 kW at 690 V AC 50/60 Hz |
| Breaking capacity Icu | ≥100 kA at 230/240 V AC, 400/415 V AC, 440 V AC, 500 V AC, 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| Rated service short-circuit breaking capacity [Ics] | 100% at 230–690 V AC 50/60 Hz conforming to IEC 60947-2 |
| Control type | Push-button |
| Thermal protection adjustment range | 0.4…0.63 A |
| Magnetic tripping current | 8 A |
| Rated operational voltage [Ue] | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| Rated insulation voltage [Ui] | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| Rated impulse withstand voltage [Uimp] | 6 kV conforming to IEC 60947-2 |
| Power dissipation | 2.5 W per pole |
| Mechanical durability | 100,000 cycles |
| Electrical durability | 100,000 cycles for AC-3 |
| Maximum operating rate | 25 cyc/h |
| Connections - terminals | Screw clamp terminals 2 1…6 mm² (solid), 2 1.5…6 mm² (flexible without cable end), 2 1…4 mm² (flexible with cable end) |

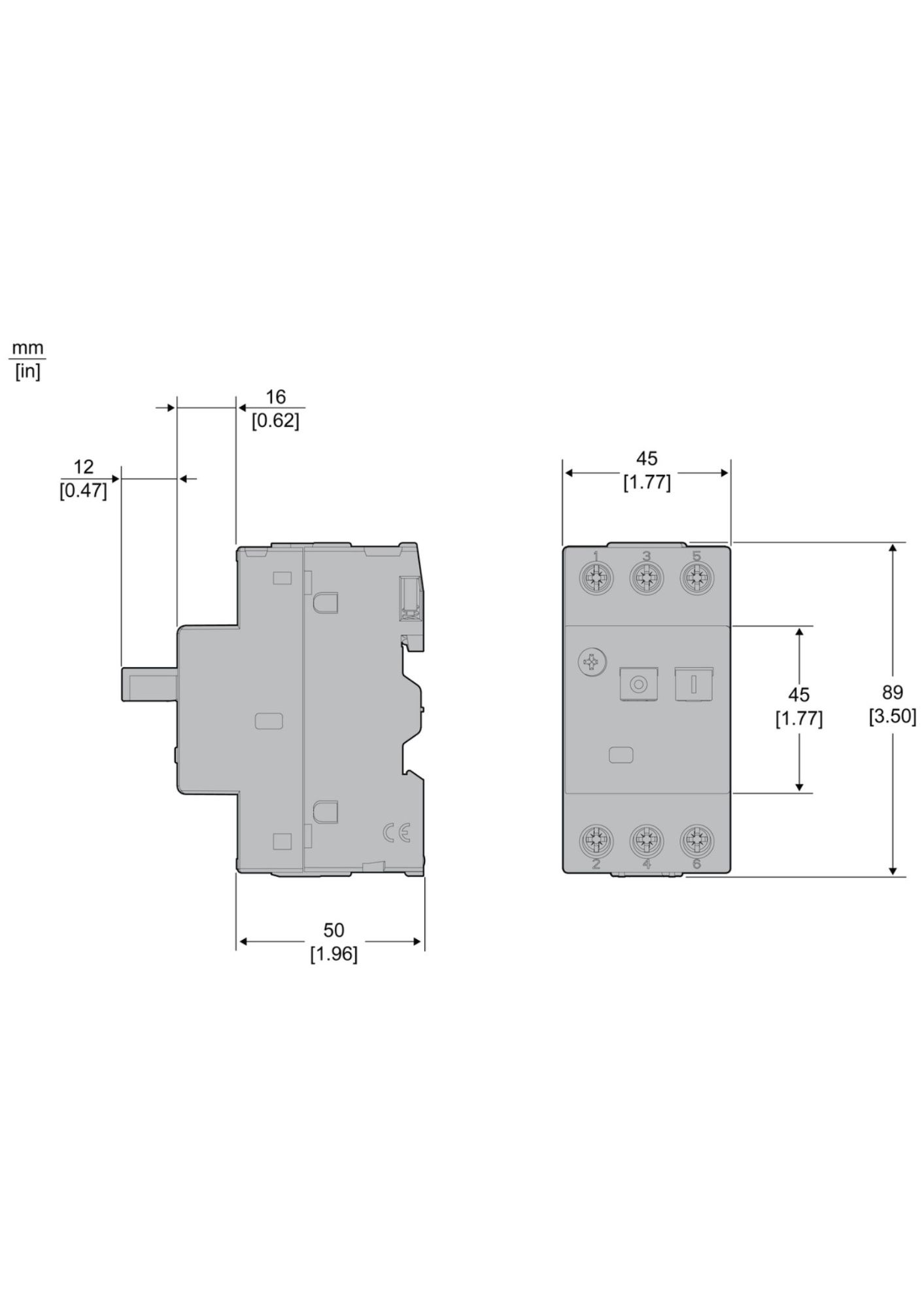

| Height | 89 mm |
| Width | 44.5 mm |
| Depth | 78 mm |
