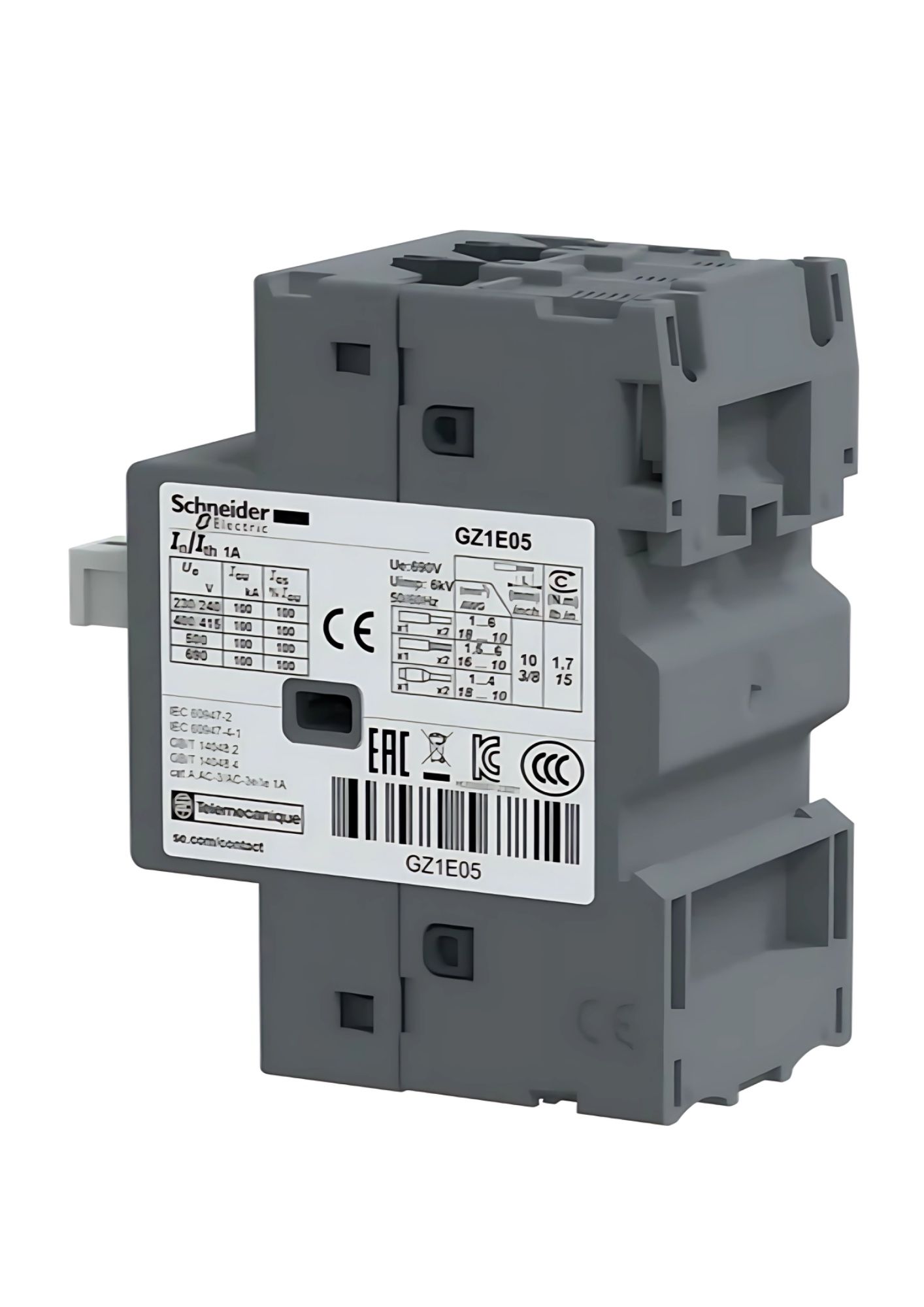

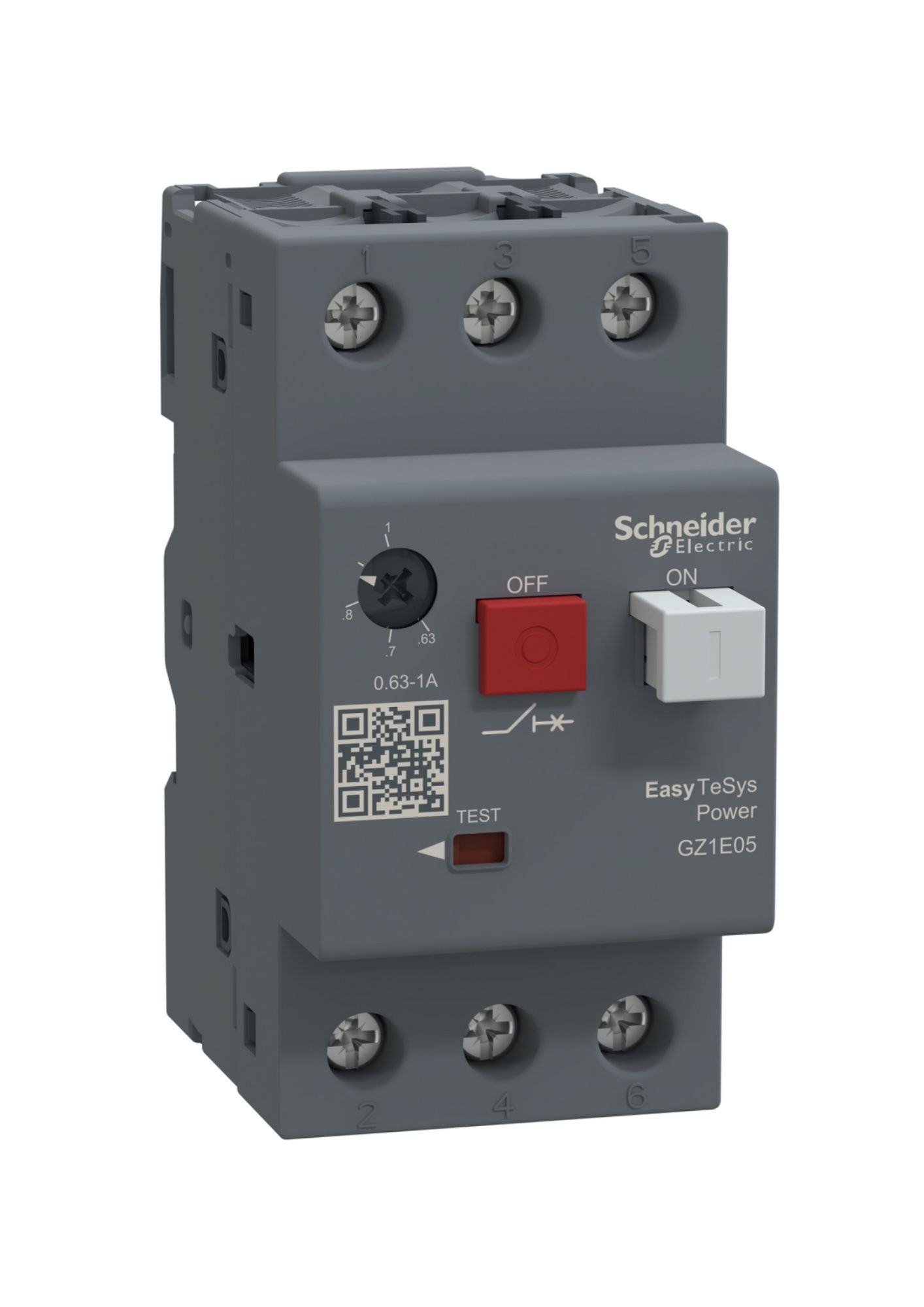

Schneider GZ1E05, Motor Circuit Breaker, Easy TeSys Power, GZ1E, AC-3, 3 Pole, 0.63~1A, Thermal Magnetic Trip

Out of stock

SKU

GZ1E05

Special Price ₹3,155.90 Regular Price ₹8,305.00

(18% GST Extra)

GZ1E are 3-pole, thermal-magnetic circuit breakers designed for motor control and protection, conforming to IEC 60947-2 and IEC 60947-4-1 standards.
Setting range of thermal trips is 0.63~1A with a thermo-magnetic trip unit.
Provides IP 41 protection in GV2 MC01 enclosure and IP 55 in GV2 MC02 enclosure.
Ensures standard reliability and durability with 0.1 Mcycles electrical/mechanical endurance and designed for connection via screw clamp terminals.
Available worldwide with multi-standards certification (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliance (RoHS/REACH).

FREE SHIPPING

Free Shipping by Surface Only*

100% Secure Payment

GZ1E Circuit Breaker Specifications

Main
Range	Easy TeSys
Range of product	Easy TeSys Power
Product or component type	Circuit breaker
Device short name	GZ1E
Device application	Motor
Trip unit technology	Thermal-magnetic
Suitability for isolation	Yes conforming to IEC 60947-1 appendix 7.1.6
Colour	Grey (RAL 7011)
Complementary
Poles description	3P
Network type	AC
Utilisation category	AC-3
Network frequency	50/60 Hz conforming to IEC 60947-2
Mounting mode	By screws, By clips
Mounting support	Rail
Mounting position	Any position
Motor power kW	0.37 kW at 500 V AC 50/60 Hz, 0.55 kW at 690 V AC 50/60 Hz
Breaking capacity	Icu: ≥ 100 kA at 230/240, 400/415, 440, 500, 690 V AC 50/60 Hz conforming to IEC 60947-2
Rated service short-circuit breaking capacity [Ics]	100 % at 230/240, 400/415, 440, 500, 690 V AC 50/60 Hz conforming to IEC 60947-2
Control type	Push-button
Thermal protection adjustment range	0.63…1 A
Magnetic tripping current	13 A
Rated operational voltage [Ue]	690 V AC 50/60 Hz conforming to IEC 60947-2
Rated insulation voltage [Ui]	690 V AC 50/60 Hz conforming to IEC 60947-2
Rated impulse withstand voltage [Uimp]	6 kV conforming to IEC 60947-2
Power dissipation	2.5 W (per pole)
Mechanical durability	100000 cycles
Electrical durability	100000 cycles for AC-3
Maximum operating rate	25 cyc/h
Connections - terminals	Screw clamp terminals 2 1…6 mm² solid, 2 1.5…6 mm² flexible without end, 2 1…4 mm² flexible with end

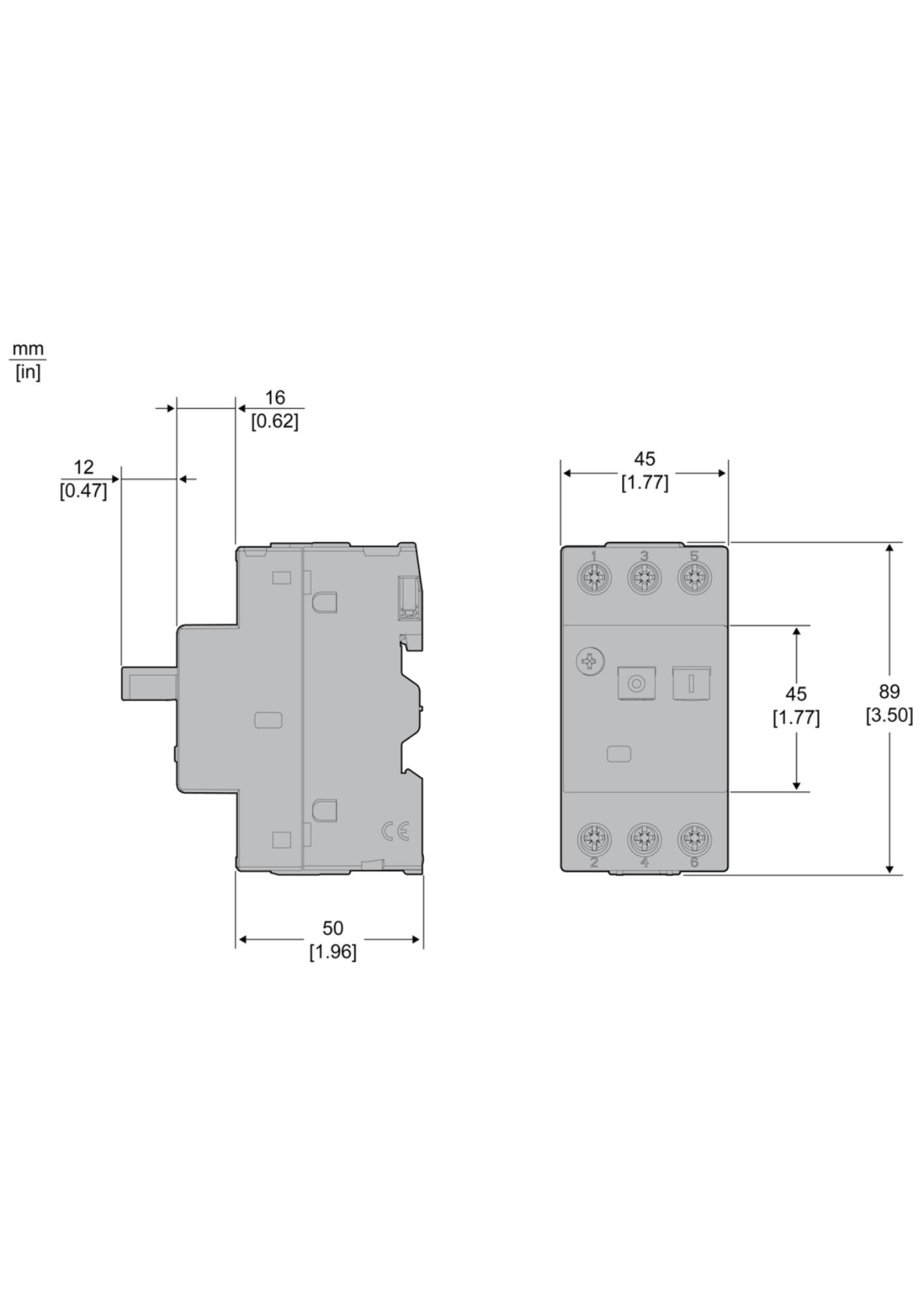

Height	89 mm
Width	44.5 mm
Depth	78 mm
