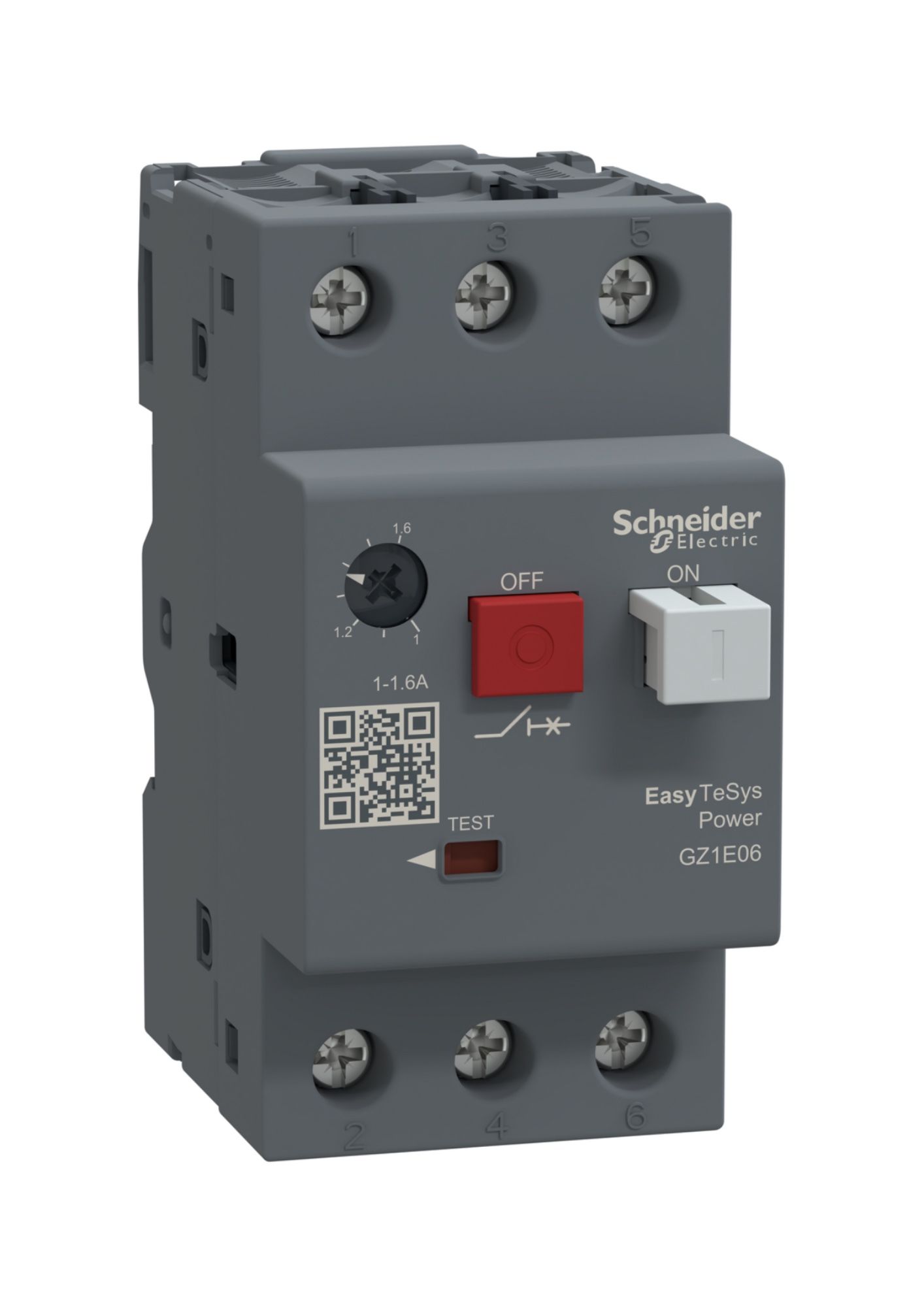

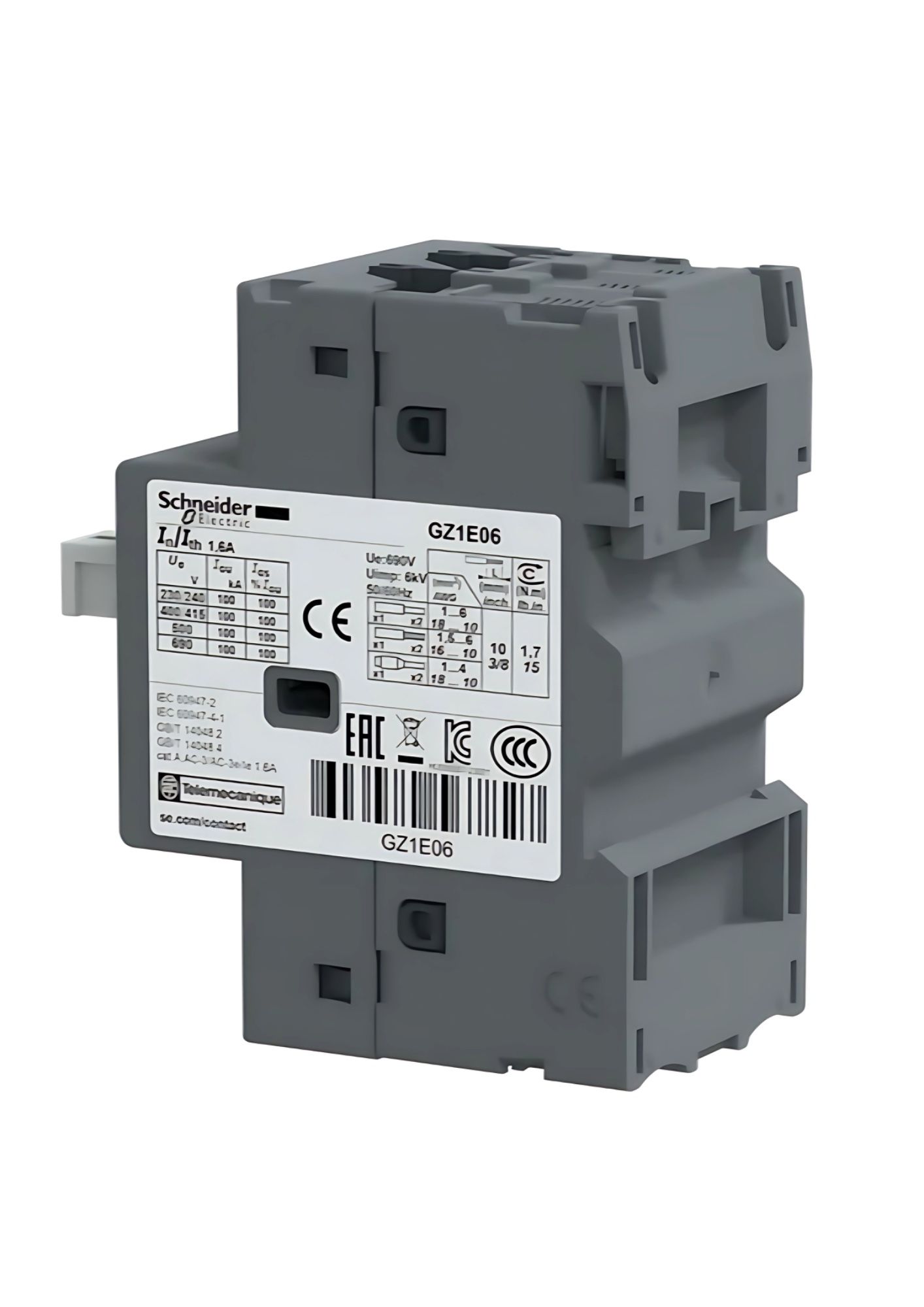

Schneider GZ1E06, Motor Circuit Breaker, Easy TeSys Power, GZ1E, AC-3, 3 Pole, 1~1.6A, Thermal Magnetic Trip
Schneider GZ1E06, Motor Circuit Breaker, Easy TeSys Power, GZ1E, AC-3, 3 Pole, 1~1.6A, Thermal Magnetic Trip Schneider GZ1E06, Motor Circuit Breaker, Easy TeSys Power, GZ1E, AC-3, 3 Pole, 1~1.6A, Thermal Magnetic Trip Schneider GZ1E06, Motor Circuit Breaker, Easy TeSys Power, GZ1E, AC-3, 3 Pole, 1~1.6A, Thermal Magnetic Trip

Schneider GZ1E06, Motor Circuit Breaker, Easy TeSys Power, GZ1E, AC-3, 3 Pole, 1~1.6A, Thermal Magnetic Trip

Be the first to review this product
In stock
SKU
GZ1E06
Special Price ₹2,080.50 Regular Price ₹5,475.00
(18% GST Extra)
Add to Wish List
  • GZ1E are 3 poles thermal-magnetic circuit breakers specifically designed for the control and protection of motors conforming to standards IEC 60947-2 and IEC 60947-4-1.
  • Setting range of thermal trips is 1~1.6A with thermo-magnetic trip unit.
  • It provides IP 41 in GV2 MC01 enclosure and IP 55 in GV2 MC02 enclosure protection.
  • It procures standard reliability and durability with 0.1 Mcycles electrical/mechanical durability and is designed for connection by screw clamp terminals.
  • Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach).
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

GZ1E Circuit Breaker Specs
Main
RangeEasy TeSys
Range of productEasy TeSys Power
Product or component typeCircuit breaker
Device short nameGZ1E
Device applicationMotor
Trip unit technologyThermal-magnetic
Suitability for isolationYes conforming to IEC 60947-1 appendix 7.1.6
ColourGrey (RAL 7011)
Complementary
Poles description3P
Network typeAC
Utilisation categoryAC-3
Network frequency50/60 Hz conforming to IEC 60947-2
Mounting modeBy screws / By clips
Mounting supportRail
Mounting positionAny position
Motor power kW 0.37 kW at 400 V AC 50/60 Hz
0.55 kW at 440 V AC 50/60 Hz
0.75 kW at 500 V AC 50/60 Hz
1.1 kW at 690 V AC 50/60 Hz
Breaking capacity Icu: >= 100 kA at 230/240 V AC 50/60 Hz
Icu: >= 100 kA at 400/415 V AC 50/60 Hz
Icu: >= 100 kA at 440 V AC 50/60 Hz
Icu: >= 100 kA at 500 V AC 50/60 Hz
Icu: >= 100 kA at 690 V AC 50/60 Hz
Rated service short-circuit breaking capacity [Ics] 100% at 230/240 V AC 50/60 Hz
100% at 400/415 V AC 50/60 Hz
100% at 440 V AC 50/60 Hz
100% at 500 V AC 50/60 Hz
100% at 690 V AC 50/60 Hz
Control typePush-button
Thermal protection adjustment range1…1.6 A
Magnetic tripping current22.5 A
Rated operational voltage [Ue]690 V AC 50/60 Hz
Rated insulation voltage [Ui]690 V AC 50/60 Hz
Rated impulse withstand voltage [Uimp]6 kV
Power dissipation2.5 W (per pole)
Mechanical durability100,000 cycles
Electrical durability100,000 cycles for AC-3
Maximum operating rate25 cyc/h
Connections - terminals Screw clamp terminals 2 1…6 mm² - solid
Screw clamp terminals 2 1.5…6 mm² - flexible without cable end
Screw clamp terminals 2 1…4 mm² - flexible with cable end

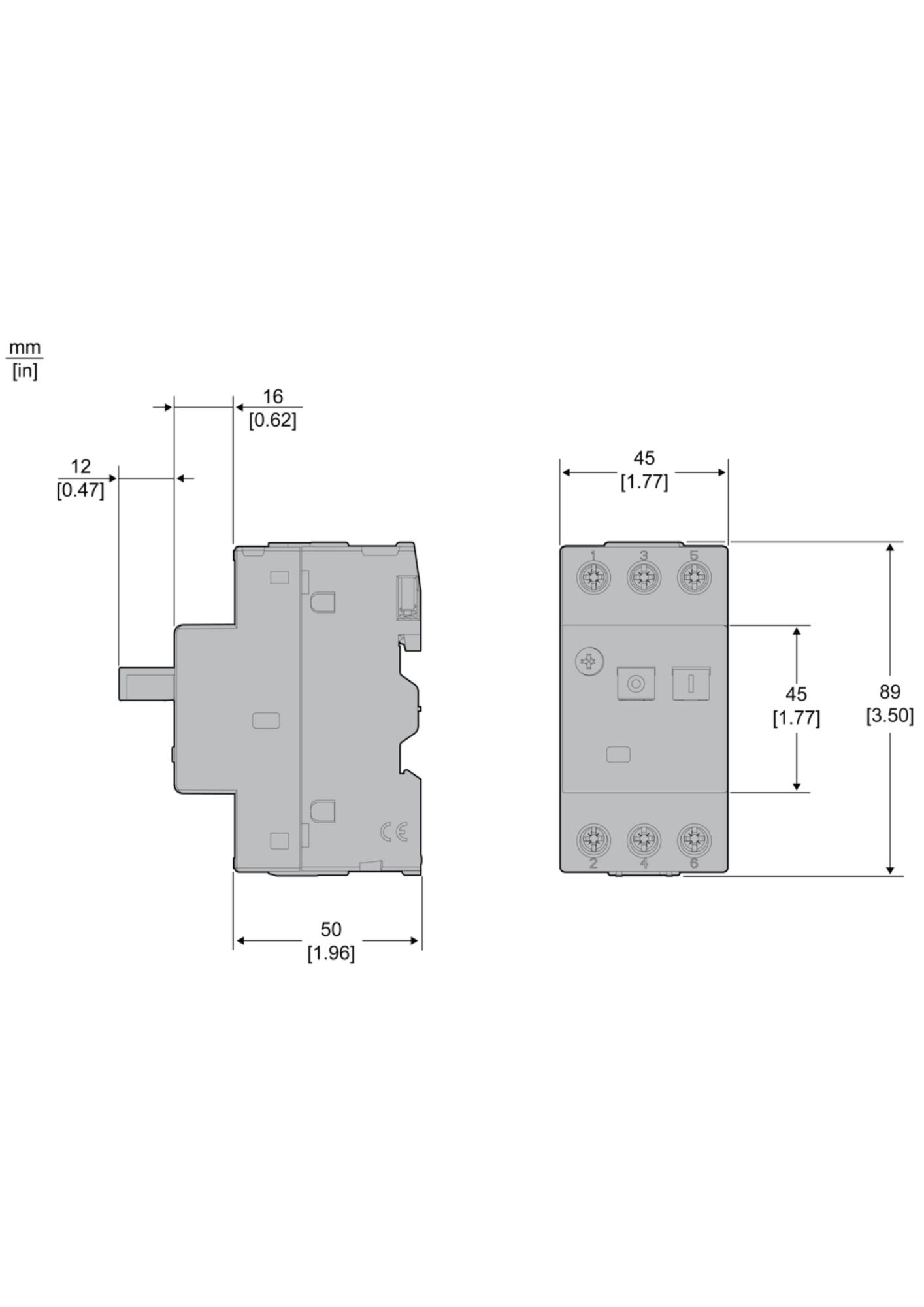

Height89 mm
Width44.5 mm
Depth78 mm
Product Variants

No specifications available for this product.

Reviews
Write Your Own Review
You're reviewing:Schneider GZ1E06, Motor Circuit Breaker, Easy TeSys Power, GZ1E, AC-3, 3 Pole, 1~1.6A, Thermal Magnetic Trip
Your Rating
Downloads
document GZ1E06 Datasheet (492.38 kB)
document GZ1E06 Instruction Manual (646.84 kB)
