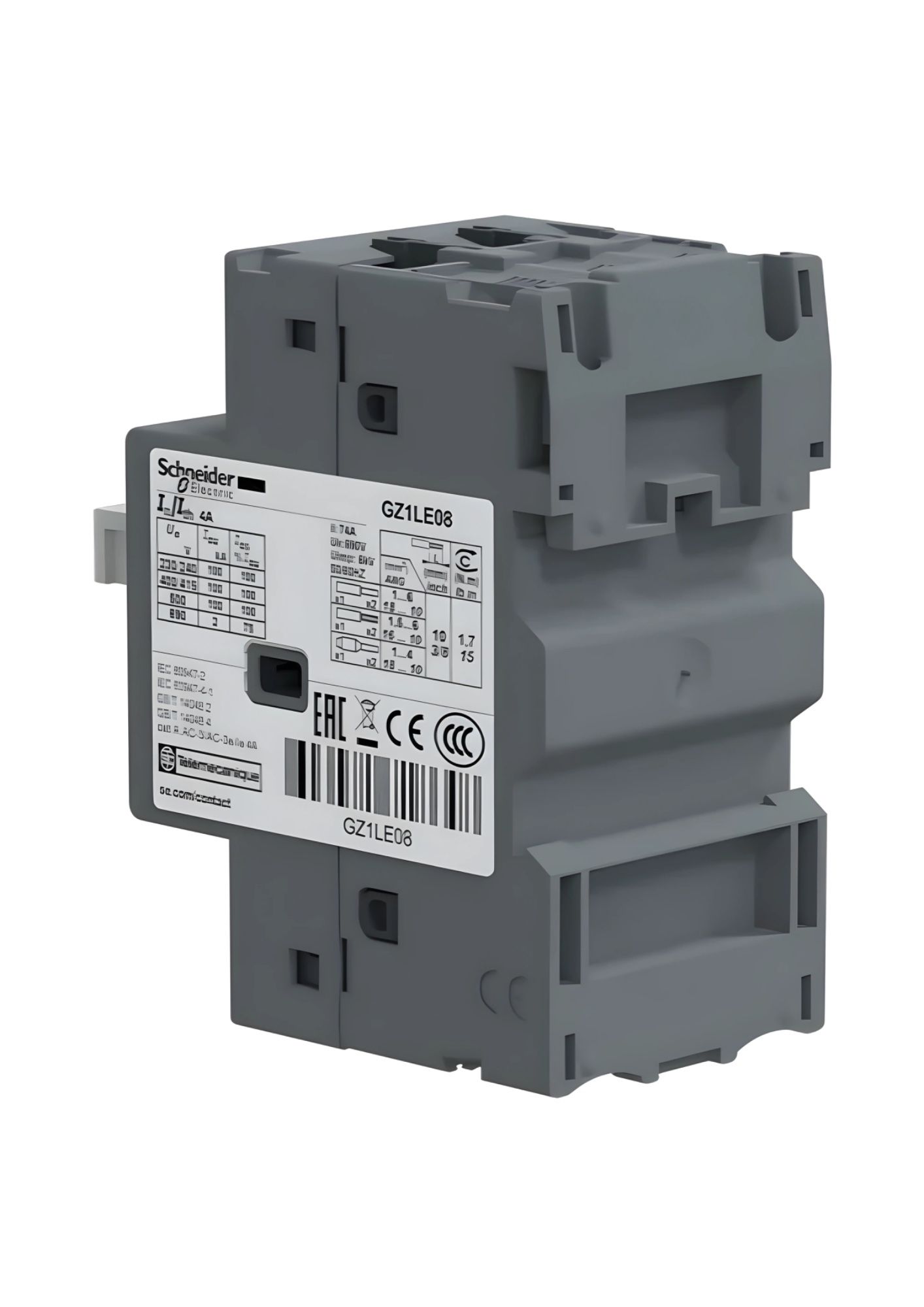

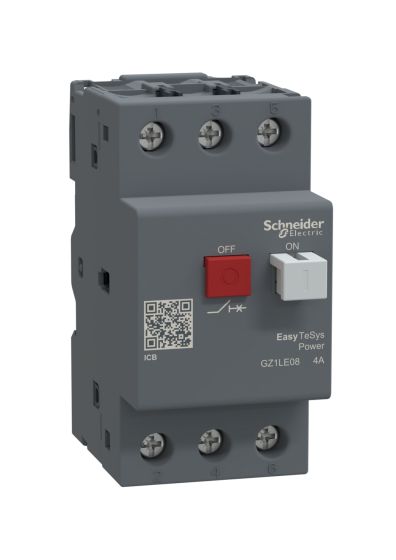

Schneider GZ1LE08, Motor Circuit Breaker, Easy TeSys Power, GZ1LE, 3 Pole, Push-Button, 4A, Magnetic Trip
In stock
SKU
GZ1LE08
Special Price
₹1,331.90
Regular Price
₹3,505.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Main | |
|---|---|
| Range | Easy TeSys |
| Range of product | Easy TeSys Power |
| Product or component type | Circuit breaker |
| Device short name | GZ1LE |
| Device application | Motor |
| Trip unit technology | Magnetic |
| Suitability for isolation | Yes conforming to IEC 60947-1 appendix 7.1.6 |
| Colour | Grey (RAL 7011) |
| Complementary | |
| Poles description | 3P |
| Network type | AC |
| Utilisation category | AC-3 |
| Network frequency | 50/60 Hz conforming to IEC 60947-2 |
| Mounting mode | By clips, By screws |
| Mounting support | Rail |
| Mounting position | Any position |
| Motor power kW |
0.75 kW at 230 V AC 50/60 Hz 1.5 kW at 400 V AC 50/60 Hz 1.5 kW at 440 V AC 50/60 Hz 2.2 kW at 500 V AC 50/60 Hz 3 kW at 690 V AC 50/60 Hz |
| Breaking capacity |
Icu ≥ 100 kA at 230/240 V AC 50/60 Hz Icu ≥ 100 kA at 400/415 V AC 50/60 Hz Icu ≥ 100 kA at 440 V AC 50/60 Hz Icu ≥ 100 kA at 500 V AC 50/60 Hz Icu = 2 kA at 690 V AC 50/60 Hz |
| [Ics] rated service short-circuit breaking capacity |
100 % at 230/240 V AC 50/60 Hz 100 % at 400/415 V AC 50/60 Hz 100 % at 440 V AC 50/60 Hz 100 % at 500 V AC 50/60 Hz 75 % at 690 V AC 50/60 Hz |
| Control type | Push-button |
| [In] rated current | 4 A |
| Magnetic tripping current | 51 A |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ui] rated insulation voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-2 |
| Power dissipation | 2.5 W (per pole) |
| Mechanical durability | 100000 cycles |
| Electrical durability | 100000 cycles for AC-3 |
| Maximum operating rate | 25 cyc/h |
| Connections - terminals |
Screw clamp terminals 2 × 1…6 mm² solid Screw clamp terminals 2 × 1.5…6 mm² flexible without cable end Screw clamp terminals 2 × 1…4 mm² flexible with cable end |

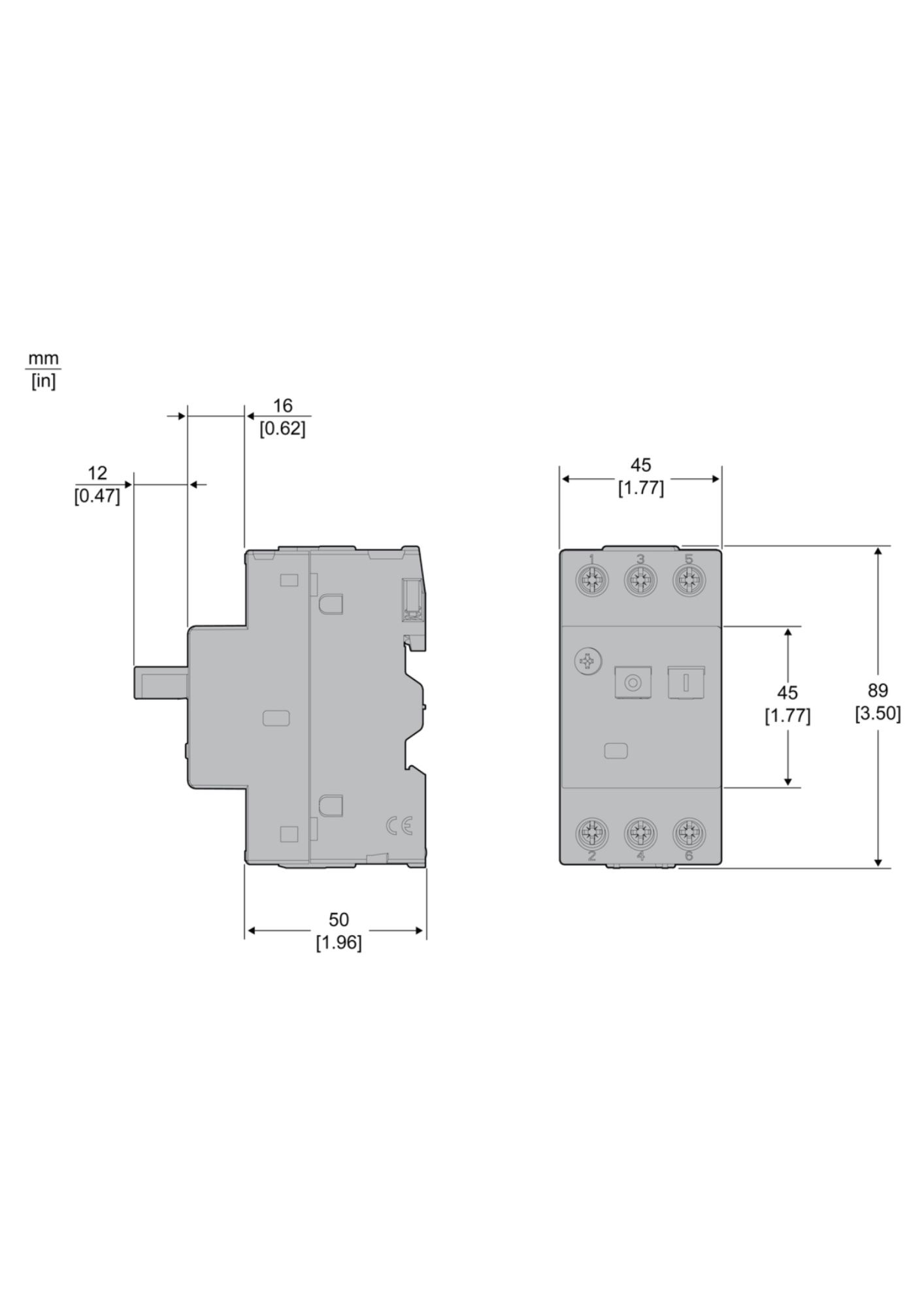

| Height | 89 mm |
| Width | 44.5 mm |
| Depth | 78 mm |
